Sensor Matched Magnets
Browse available Sensor Matched Magnets components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | For Use With/Related Products | Housing Material | Material - Magnet | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

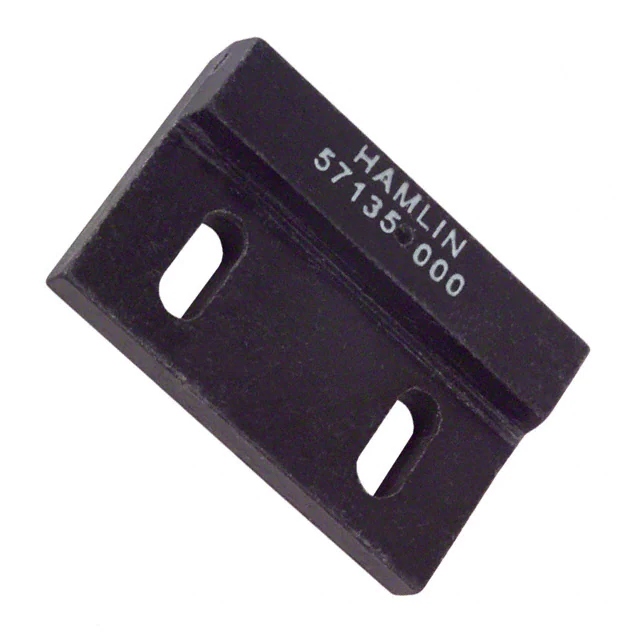

57135-000MAGNET 1.125"L X 0.259"W PLASTIC |
30,606 |
1+：$2.25000 5+：$2.00200 10+：$1.90900 25+：$1.80000 50+：$1.72540 100+：$1.65710 500+：$1.60964 |
|
Datasheet | - | Flange Mount | Bulk | Active | 59135 | Plastic | Alnico 5 (AlNiCo) | 1.125" L x 0.259" W x 0.750" H (28.6mm x 6.40mm x 19.0mm) | 105°C (TA) |
|

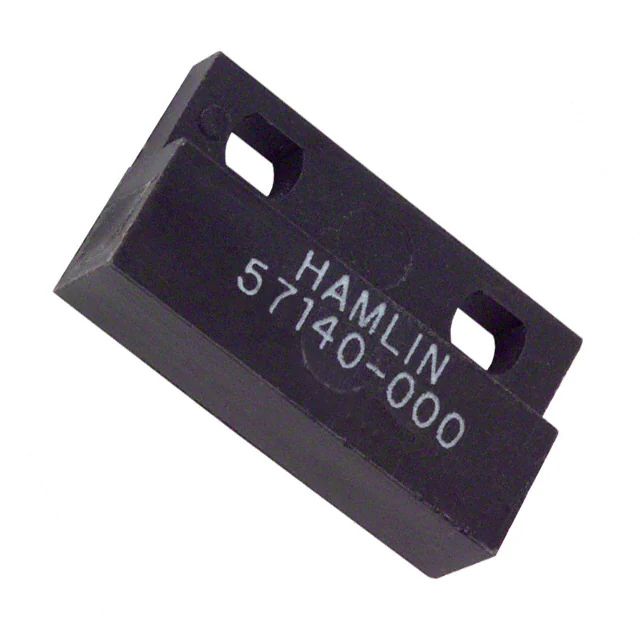

57140-000MAGNET 0.906"L X 0.236"W PLASTIC |
3,620 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | 59140 | Plastic | Alnico 5 (AlNiCo) | 0.906" L x 0.236" W x 0.551" H (23.0mm x 6.00mm x 14.0mm) | 105°C (TA) |
|
57145-000MAGNET 1.125"L X 0.259"W PLASTIC |
5,673 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | 59145 | Plastic | Alnico 5 (AlNiCo) | 1.125" L x 0.259" W x 0.750" H (28.6mm x 6.40mm x 19.0mm) | 105°C (TA) |
|
|
57150-000MAGNET 1.125"L X 0.259"W PLASTIC |
2,924 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | 59150 | Plastic | Alnico 5 (AlNiCo) | 1.125" L x 0.259" W x 0.750" H (28.6mm x 6.40mm x 19.0mm) | 105°C (TA) |
|
M04MAGNET 0.910"L X 0.55"W PBT |
365 | - |
|
Datasheet | M04 | Flange Mount | Bulk | Active | MK04 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico 5 (AlNiCo) | 0.910" L x 0.550" W x 0.230" H (23.0mm x 13.9mm x 5.90mm) | 70°C (TA) |
|

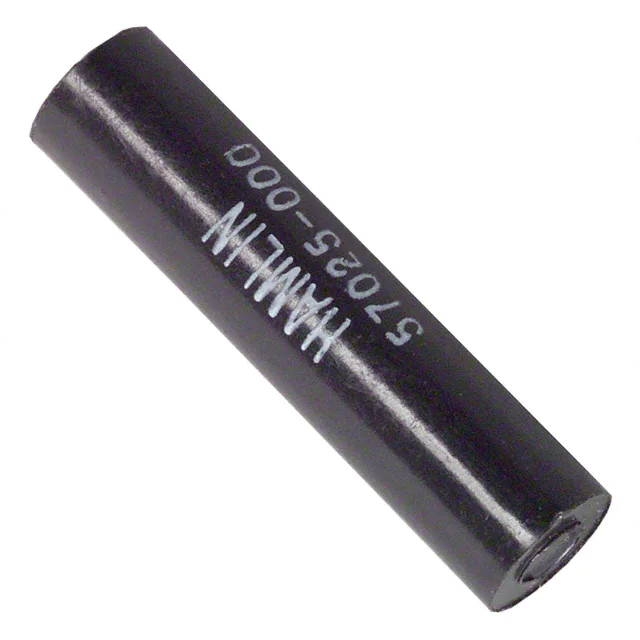

57025-000MAGNET 0.245"DIA X 1"L PLASTIC |
5,466 |
1+：$4.62000 5+：$4.14800 10+：$3.97300 25+：$3.76440 50+：$3.62160 200+：$3.37090 600+：$3.20090 1000+：$3.12941 |
|
Datasheet | - | Cylinder | Bulk | Active | 59025 | Plastic | Alnico 5 (AlNiCo) | 0.245" Dia x 1.00" L (6.22mm x 25.4mm) | 105°C (TA) |
|
SI-MAGB2MMCODED MAG USE W/SI-MAGB2SM |
213 | - |
|
Datasheet | SI-MAG | Flange Mount | Bulk | Active | SI-MAG Series | Thermoplastic | - | 1.693" L x 1.024" W x 0.512" H (43.0mm x 26.0mm x 13.0mm) | -25°C ~ 70°C |
|

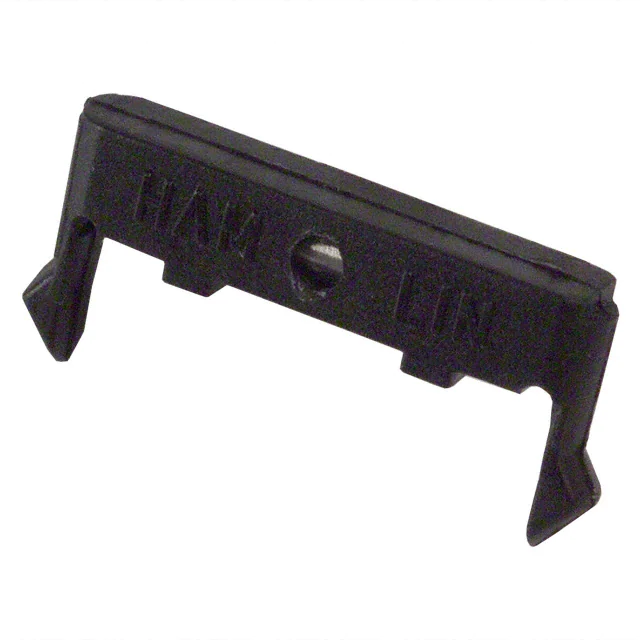

57045-000MAGNET 0.700"L X 0.130"W PLASTIC |
940 | - |
|
Datasheet | - | PCB Module | Box | Active | 59045 | Plastic | Alnico 5 (AlNiCo) | 0.700" L x 0.130" W x 0.170" H (17.8mm x 3.30mm x 4.32mm) | 105°C (TA) |
|

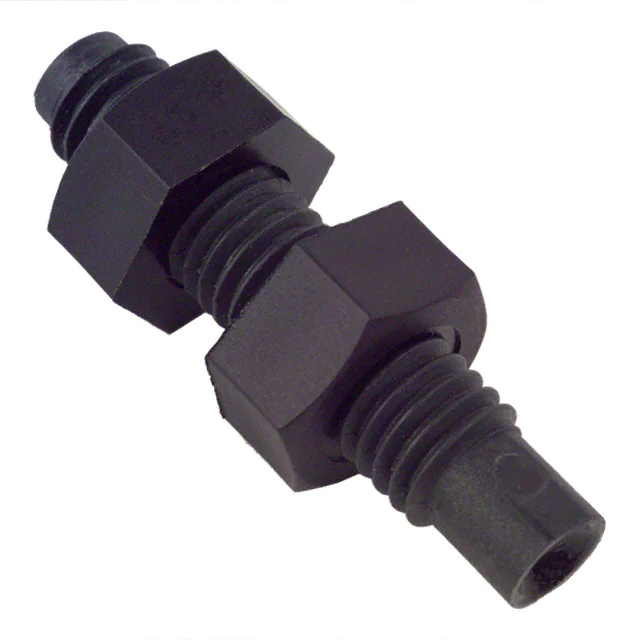

57065-000MAGNET 0.219"DIA X 1.5"L PLASTIC |
739 | - |
|
Datasheet | - | Cylinder, Threaded | Bulk | Active | 59065 | Plastic | Alnico 5 (AlNiCo) | 0.219" Dia x 1.50" L (5.56mm x 38.0mm) | 105°C (TA) |
|
|
57070-000MAGNET 0.219"DIA X 1.5"L PLASTIC |
697 | - |
|
Datasheet | - | Cylinder, Threaded | Bulk | Active | 59070 | Plastic | Alnico 5 (AlNiCo) | 0.219" Dia x 1.50" L (5.56mm x 38.0mm) | 105°C (TA) |
|
S1368BLACK RECTANGULAR ENCAPSULATED U |
515 |
1+：$3.54000 5+：$3.16200 10+：$3.02100 25+：$2.85400 50+：$2.74000 100+：$2.63550 500+：$2.42526 1000+：$2.34694 |
|
Datasheet | - | Flange Mount | Bulk | Active | PSM | Nylon | - | 1.181" L x 0.787" W x 0.276" H (30.00mm x 20.00mm x 7.00mm) | - |
|
57142-00057142-000 ACTUATOR |
502 | - |
|
Datasheet | - | Flange Mount | Box | Active | 59142 | Plastic | Nd-Fe-B | 0.906" L x 0.236" W x 0.551" H (23.0mm x 6.00mm x 14.0mm) | 105°C (TA) |
|
M11/M8MAGNET 0.315"DIA X 1.5"L PLASTIC |
630 | - |
|
Datasheet | M11 | Cylinder, Threaded | Bulk | Active | MK11/M8 | Plastic | Alnico 5 (AlNiCo) | 0.315" Dia x 1.50" L (8.00mm x 38.0mm) | 70°C (TA) |
|
57022-000MAGNET 0.228"DIA X 1"L PLASTIC |
255 | - |
|
Datasheet | - | Cylinder | Box | Active | 59022 | Plastic | Alnico 5 (AlNiCo) | 0.228" Dia x 1.00" L (5.79mm x 25.4mm) | 105°C (TA) |
|

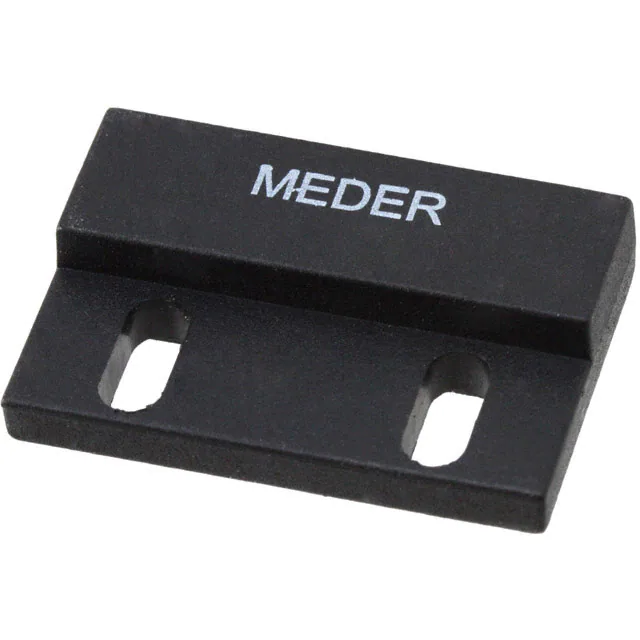

M21P/1MAGNET 1.122"L X 0.246"W PBT |
288 | - |
|
Datasheet | M21 | Flange Mount | Bulk | Active | MK21 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico (AlNiCo) | 1.122" L x 0.246" W x 0.750" H (28.5mm x 6.25mm x 19.0mm) | 150°C (TA) |
|
MMPSM MAGNET BLUEBLUE RH RECTANGULAR ENCAPSULATED |
506 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | MMPSM | Nylon | - | 0.787" L x 0.551" W x 0.236" H (20.00mm x 14.00mm x 6.00mm) | - |
|

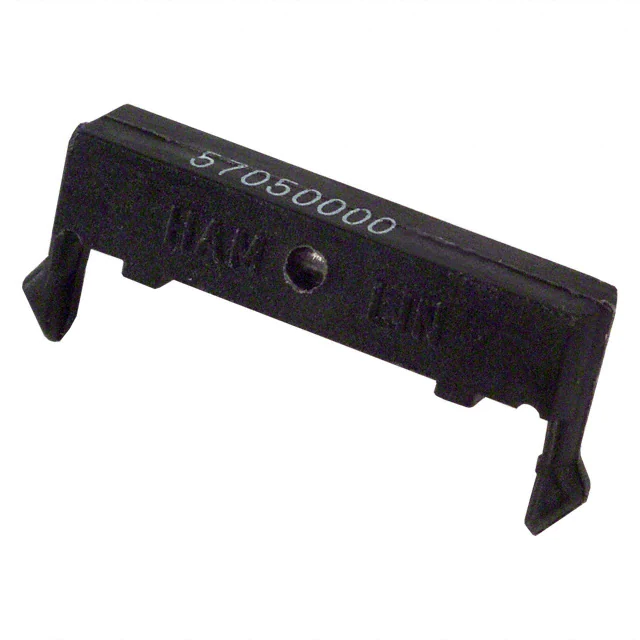

57050-000MAGNET 0.9"L X 0.180"W PLASTIC |
314 | - |
|
Datasheet | - | PCB Module | Bulk | Active | 59050 | Plastic | Alnico 5 (AlNiCo) | 0.900" L x 0.180" W x 0.265" H (22.9mm x 4.57mm x 6.73mm) | 105°C (TA) |
|
57040-000MAGNET 0.42"DIA X 1.22"L PLASTIC |
395 | - |
|
Datasheet | - | Press Fit | Box | Active | 59040 | Plastic | - | 0.420" Dia x 1.22" L (10.7mm x 31.0mm) | 105°C (TA) |
|

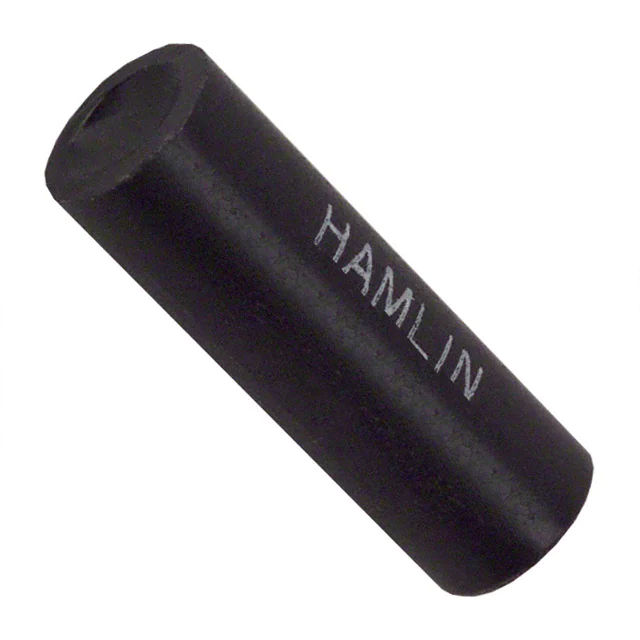

57020-000MAGNET 0.201"DIA X 0.6"L PLASTIC |
125 | - |
|
Datasheet | - | Cylinder | Bulk | Active | 59020 | Plastic | Alnico 5 (AlNiCo) | 0.201" Dia x 0.60" L (5.10mm x 15.2mm) | 105°C (TA) |
|
CTI302MMAGNET |
106 | - |
|
Datasheet | - | Cylinder, Threaded - M8 | Bulk | Active | S1736 | Nickel Plated Brass | - | - | 85°C (TA) |
