Sensor Matched Magnets
Compare the current Sensor Matched Magnets Magnets selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | For Use With/Related Products | Housing Material | Material - Magnet | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M04MAGNET 0.910"L X 0.55"W PBT |
365 | - |
|
Datasheet | M04 | Flange Mount | Bulk | Active | MK04 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico 5 (AlNiCo) | 0.910" L x 0.550" W x 0.230" H (23.0mm x 13.9mm x 5.90mm) | 70°C (TA) |
|
M11/M8MAGNET 0.315"DIA X 1.5"L PLASTIC |
630 | - |
|
Datasheet | M11 | Cylinder, Threaded | Bulk | Active | MK11/M8 | Plastic | Alnico 5 (AlNiCo) | 0.315" Dia x 1.50" L (8.00mm x 38.0mm) | 70°C (TA) |
|
M21P/1MAGNET 1.122"L X 0.246"W PBT |
288 | - |
|
Datasheet | M21 | Flange Mount | Bulk | Active | MK21 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico (AlNiCo) | 1.122" L x 0.246" W x 0.750" H (28.5mm x 6.25mm x 19.0mm) | 150°C (TA) |
|
M13MAGNET 0.906"L X 0.547"W PBT |
113 | - |
|
Datasheet | M13 | Flange Mount | Bulk | Active | MK13 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico 5 (AlNiCo) | 0.906" L x 0.547" W x 0.232" H (23.0mm x 13.9mm x 5.90mm) | 70°C (TA) |
|
M05MAGNET 0.910"L X 0.55"W PBT |
101 | - |
|
Datasheet | M05 | Flange Mount | Bulk | Active | MK05 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico 5 (AlNiCo) | 0.910" L x 0.550" W x 0.230" H (23.0mm x 13.9mm x 5.90mm) | 70°C (TA) |
|

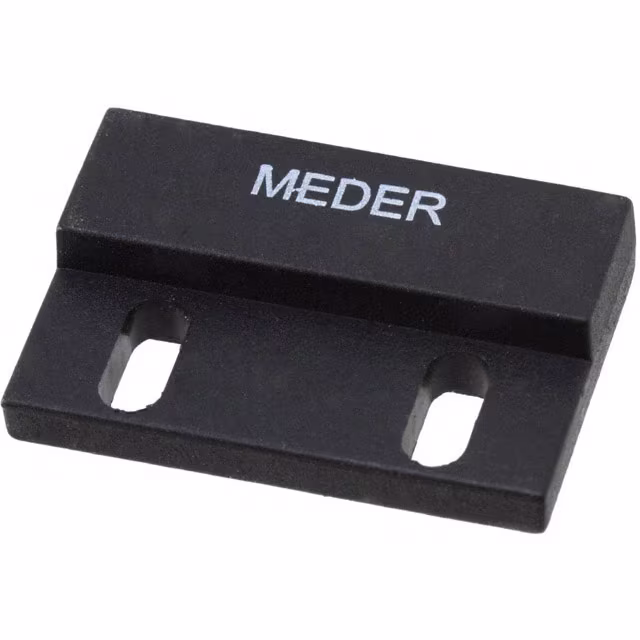

M21P/2MAGNET 1.122"L X 0.246"W PBT |
4,070 | - |
|
Datasheet | M22 | Flange Mount | Bulk | Active | MK21 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico (AlNiCo) | 1.122" L x 0.246" W x 0.750" H (28.5mm x 6.25mm x 19.0mm) | 150°C (TA) |
|
M11/M5MAGNET 0.980"DIA X 0.20"L SS |
3,529 | - |
|
Datasheet | M11 | Cylinder, Threaded | Bulk | Active | MK11 | Stainless Steel | Alnico (AlNiCo) | 0.980" Dia x 0.20" L (25.0mm x 5.00mm) | 70°C (TA) |
|
RM-01-020TARGET MAGNET |
3,619 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Magnetic Reed Sensors | - | Nd-Fe-B | 0.250" Dia x 0.25" L (6.35mm x 6.4mm) | 150°C (TA) |
|
|
RM-01-071ANGULAR POSITION MAGNET |
2,209 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Magnetic Reed Sensors | - | Nd-Fe-B | 0.500" Dia x 0.13" L (12.70mm x 3.2mm) | - |
|
|
PM-SCS50FX075S-01022NTARGET MAGNET |
4,371 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Magnetic Reed Sensors | Stainless Steel | NEO 35 | 0.750" Dia x 1.25" L (19.05mm x 31.8mm) | 150°C (TA) |
