Power Relays, Over 2 Amps
Compare the current Power Relays, Over 2 Amps Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T7CV1D-12RELAY GEN PURPOSE SPST 12A 12V |
3,726 | - |
|
Datasheet | T7C | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 240VAC, 24VDC - Max | 2880VA, 288W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

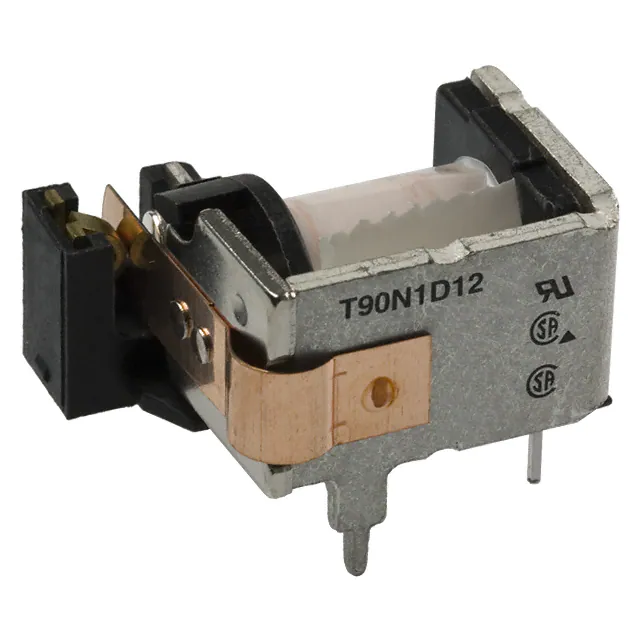

T90N1D42-48RELAY GEN PURPOSE SPST 30A 48V |
2,446 | - |
|
Datasheet | T90 | Tray | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 19 mA | Non Latching | - | PC Pin | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T90N5D42-12RELAY GEN PURPOSE SPDT 20A 12V |
4,055 | - |
|
Datasheet | T90 | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 4155VA | 77 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T90N5D42-24RELAY GEN PURPOSE SPDT 20A 24V |
3,938 | - |
|
Datasheet | T90 | Tray | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 4155VA | 36 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T90S1D42-110RELAY GEN PURPOSE SPST 30A 110V |
2,522 | - |
|
Datasheet | T90 | Bulk | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
V23057A 1A401RELAY GEN PURPOSE SPDT 8A 6V |
3,800 | - |
|
Datasheet | V23057, SCHRACK | Tray | Active | Through Hole | 6VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 75 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.6 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
V23057B 2A402RELAY GEN PURPOSE SPST 8A 12V |
2,432 | - |
|
Datasheet | V23057, SCHRACK | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 36.3 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
V23057A 13A101RELAY GEN PURPOSE SPDT 5A 48V |
3,763 | - |
|
Datasheet | V23057, SCHRACK | Tray | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 10.2 mA | Non Latching | - | PC Pin | - | - | 32 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
V23057A 23A101RELAY GEN PURPOSE SPDT 5A 60V |
2,516 | - |
|
Datasheet | V23057, SCHRACK | Tray | Obsolete | Through Hole | 60VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 8.3 mA | Non Latching | - | PC Pin | - | - | 40 VDC | 6 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
V23057B 2B101RELAY GEN PURPOSE SPDT 5A 12V |
4,295 | - |
|
Datasheet | V23057, SCHRACK | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 36.3 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
How can I narrow the current Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Relays, Over 2 Amps parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
