Power Relays, Over 2 Amps
Compare the current Power Relays, Over 2 Amps Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8-1393215-3RELAY GEN PURPOSE SPST 8A 24V |
4,926 | - |
|
Datasheet | V23057, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 20 mA | Non Latching | - | PC Pin | - | - | 16 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

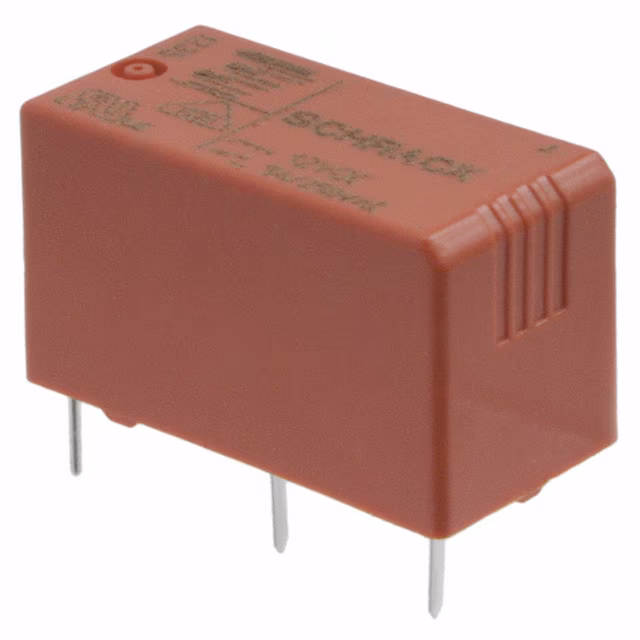

REL30012RELAY GEN PURPOSE SPST 6A 12V |
2,746 | - |
|
Datasheet | REL, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
4-1393217-7RELAY GEN PURPOSE SPST 6A 24V |
1,952 | - |
|
Datasheet | REL, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
V23061A1002A402RELAY GEN PURPOSE SPST 8A 5V |
4,523 | - |
|
Datasheet | MSR, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 42.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1-1393222-6RELAY GEN PURPOSE SPST 8A 9V |
3,758 | - |
|
Datasheet | MSR, SCHRACK | Tube | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 24.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 6.1 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
V23061A1010A402RELAY GEN PURPOSE SPST 8A 60V |
4,224 | - |
|
Datasheet | MSR, SCHRACK | Tube | Obsolete | Through Hole | 60VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 40.8 VDC | 6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
6-1393222-8RELAY GEN PURPOSE SPST 8A 5V |
4,845 | - |
|
Datasheet | MSR, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 42.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 3.4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
7-1393222-0RELAY GEN PURPOSE SPDT 8A 3V |
2,552 | - |
|
Datasheet | MSR, SCHRACK | Tube | Obsolete | Through Hole | 3VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 73.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 2.1 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
8-1393222-6RELAY GEN PURPOSE SPDT 8A 9V |
1,229 | - |
|
Datasheet | MSR, SCHRACK | Tube | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 24.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 6.1 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
V23061B1009A401RELAY GEN PURPOSE SPDT 8A 48V |
1,487 | - |
|
Datasheet | MSR, SCHRACK | Tray | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 5.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 32.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
How can I narrow the current Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Relays, Over 2 Amps parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
