Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSP2A-L2-DC3VRELAY GEN PURPOSE DPST 5A 3V |
1,710 | - |
|
Datasheet | DSP | Bulk | Active | Through Hole | 3VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 100 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 2.4 VDC | - | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
V23148A1105A101RELAY GEN PURPOSE SPDT 5A 12V |
264 | - |
|
Datasheet | V23148, SCHRACK | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 16.7 mA | Non Latching | - | PC Pin | - | - | 8.8 VDC | 1.2 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
G6CK-1114P-US DC5RELAY GEN PURPOSE SPST 10A 5V |
2,355 | - |
|
Datasheet | G6C | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 56 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|

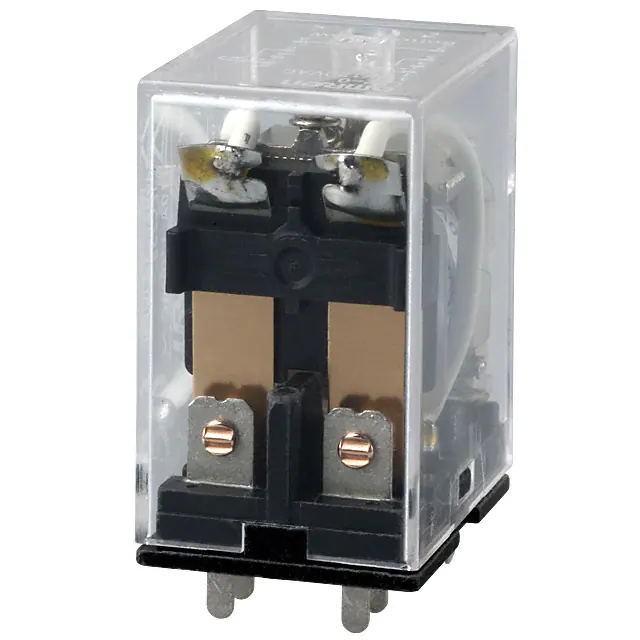

LY1-0-AC110/120RELAY GEN PURPOSE SPDT 15A 120V |
121 | - |
|
Datasheet | LY | Bulk | Active | Through Hole | 120VAC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 9.2 mA | Non Latching | - | PC Pin | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
2-1393240-8RELAY GEN PURPOSE SPST 16A 12V |
7,813 | - |
|
Datasheet | RT1, Inrush, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2850-2A-240AERELAY GEN PURPOSE DPST 40A 240V |
11,812 | - |
|
Datasheet | AZ2850 | Tray | Active | Through Hole | 240VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 63.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RT424A12RELAY GEN PURPOSE DPDT 8A 12V |
17,294 | - |
|
Datasheet | RT2, SCHRACK | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | - | 10 ms | 5 ms | -10°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RT424A05RELAY GEN PURPOSE DPDT 8A 5V |
1,318 | - |
|
Datasheet | RT2, SCHRACK | Box | Active | Through Hole | 5VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | - | 10 ms | 5 ms | -10°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
G2R-14-H DC24RELAY GEN PURPOSE SPDT 5A 24V |
193 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
PT271730RELAY GEN PURPOSE DPDT 12A 230V |
139 | - |
|
Datasheet | PT, SCHRACK | Bulk | Active | Through Hole | 230VAC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 11.8 mA | Non Latching | Mechanical Indicator, Test Button | PC Pin | - | Class F | 184 VAC | 69 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
DK2A-L2-24VRELAY GEN PURPOSE DPST 8A 24V |
783 | - |
|
Datasheet | DK | Box | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 8.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 10 ms | 8 ms | -40°C ~ 65°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
G5RL-K1A-EL-HA DC12RELAY GEN PURPOSE SPST 16A 12V |
990 | - |
|
Datasheet | G5RL-K | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 62.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
DE1A1B-5VRELAY GEN PURPOSE DPST 8A 5V |
2,241 | - |
|
Datasheet | DE | Tube | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 30VDC - Max | 2500VA, 300W | 40 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
7-1415072-1RELAY GEN PURPOSE DPDT 8A 12V |
3,172 | - |
|
Datasheet | RT2, SCHRACK | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 6.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
G6B-1174P-FD-US DC12RELAY GEN PURPOSE SPST 8A 12V |
545 | - |
|
Datasheet | G6B | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | General Purpose | - | - |
|
G2R-14-T130 DC24RELAY GEN PURPOSE SPDT 8A 24V |
873 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
LY1F-AC100/110RELAY GEN PURPOSE SPDT 15A 110V |
142 | - |
|
Datasheet | LY | Bulk | Active | Chassis Mount | 110VAC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 11 mA | Non Latching | - | Plug In | - | - | 88 VAC | 33 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
RT214730RELAY GEN PURPOSE SPDT 12A 230V |
680 | - |
|
Datasheet | RT1, SCHRACK | Tube | Active | Through Hole | 230VAC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 172.5 VAC | 34.5 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
ADY10024RELAY GEN PURPOSE SPST 10A 24V |
317 | - |
|
Datasheet | ADY | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 8 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
V23092A1012A801RELAY GEN PURPOSE SPDT 6A 12V |
3,035 | - |
|
Datasheet | SNR, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
What Power Relays, Over 2 Amps components can I source from EGOO?
You can browse available Power Relays, Over 2 Amps product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Power Relays, Over 2 Amps parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
