Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADJ14024RELAY GEN PURPOSE SPDT 16A 24V |
926 | - |
|
Datasheet | ADJ | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 10.4 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G6CK-2114P-US DC5RELAY GEN PURPOSE DPST 8A 5V |
1,913 | - |
|
Datasheet | G6C | Bulk | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 56 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G6B-2114P-US DC6RELAY GENERAL PURPOSE DPST 5A 6V |
690 | - |
|
Datasheet | G6B | Bulk | Active | Through Hole | 6VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
AZEV132-1AE1BG-24DRELAY EV CHARGING SPST 32A 24V |
301 | - |
|
Datasheet | AZEV132 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 32 A | 400VAC - Max | 12800VA | 64.5 mA | Non Latching | Contact Weld Detection | PC Pin | - | Class F | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO); Silver Nickel (AgNi), Gold (Au) | EV Charging | - | - |
|
RTD14730RELAY GEN PURPOSE SPDT 16A 230V |
1,069 | - |
|
Datasheet | RT1, SCHRACK | Tube | Active | Through Hole | 230VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 172.5 VAC | 34.5 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1-1904005-4RELAY SPDT 12V |
3,148 | - |
|
Datasheet | V2337 | Tray | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | - | - | - | - | Non Latching | - | Plug In | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 100°C | Silver (Ag) | General Purpose | - | - |
.jpg "G2R-1-SN DC48(S)")
|

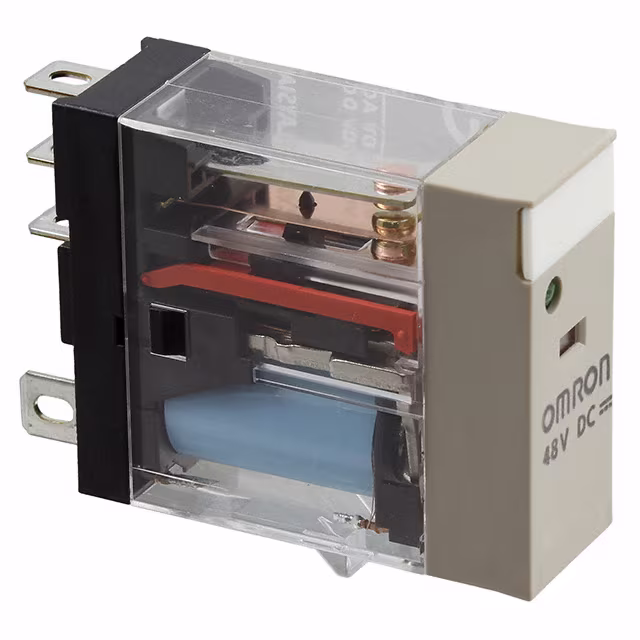

G2R-1-SN DC48(S)RELAY GEN PURPOSE SPDT 10A 48V |
463 | - |
|
Datasheet | G2RS | Bulk | Active | Socketable | 48VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 11.4 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 33.6 VDC | 7.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
G4W-1112P-US-TV8-HP DC12RELAY GEN PURPOSE SPST 15A 12V |
338 | - |
|
Datasheet | G4W | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 66.7 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G2R-1-E AC120RELAY GEN PURPOSE SPDT 16A 120V |
932 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 120VAC | SPDT (1 Form C) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
DK1A1B-L2-5VRELAY GEN PURPOSE DPST 8A 5V |
632 | - |
|
Datasheet | DK | Box | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 40 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 8 ms | -40°C ~ 65°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
T9AP5D52-48RELAY GEN PURPOSE SPDT 20A 48V |
348 | - |
|
Datasheet | T9A | Bulk | Active | Chassis Mount | 48VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 21 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G6B-1174P-1-US DC12RELAY GEN PURPOSE SPST 8A 12V |
372 | - |
|
Datasheet | G6B | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
RT425005RELAY GEN PURPOSE DPDT 8A 5V |
1,026 | - |
|
Datasheet | RT2, SCHRACK | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RT425024RELAY GEN PURPOSE DPDT 8A 24V |
908 | - |
|
Datasheet | RT2, SCHRACK | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
DE1A1B-L2-12VRELAY GEN PURPOSE DPST 8A 12V |
1,010 | - |
|
Datasheet | DE | Tube | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 30VDC - Max | 2500VA, 300W | 16.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 8.4 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G2R-1A-E AC24RELAY GEN PURPOSE SPST 16A 24V |
103 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 24VAC | SPST-NO (1 Form A) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
DK1A1B-L2-3VRELAY GEN PURPOSE DPST 8A 3V |
876 | - |
|
Datasheet | DK | Box | Active | Through Hole | 3VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 66.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 2.1 VDC | - | 10 ms | 8 ms | -40°C ~ 65°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
8-1415536-6RELAY GEN PURPOSE SPST 16A 24V |
4,790 | - |
|
Datasheet | 41083 3mm, SCHRACK | Tray | Active | Through Hole | 24VDC | SPST-NO (DM) (1 Form X) | 16 A | 400VAC - Max | 6400VA | 15 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | - | 15.8 VDC | 1.8 VDC | - | - | -20°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
G2R-24 DC36RELAY GEN PURPOSE DPDT 4A 36V |
119 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 36VDC | DPDT (2 Form C) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 14.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 25.2 VDC | 5.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
1984600000RELAY GEN PURPOSE SPDT 6A 230V |
2,454 | - |
|
Datasheet | TERMSERIES | Bulk | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 10.1 mA | Non Latching | Lighted Indicator, RC Circuit, Socket Included | Screw Terminal | - | - | 169 VAC | 85 VAC | 16 ms | 45 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
What Power Relays, Over 2 Amps components can I source from EGOO?
You can browse available Power Relays, Over 2 Amps product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Power Relays, Over 2 Amps parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
