Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-301XPWR XFMR LAMINATED 7.5VA CHAS MT |
2,722 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 2.5V | 3A | Dual | Single | Yes | 7.5VA | Chassis Mount | Wire Leads | 71.45mm L x 41.28mm W | 41.28mm | 1500Vrms | 0.68 lb (308.44 g) |
|

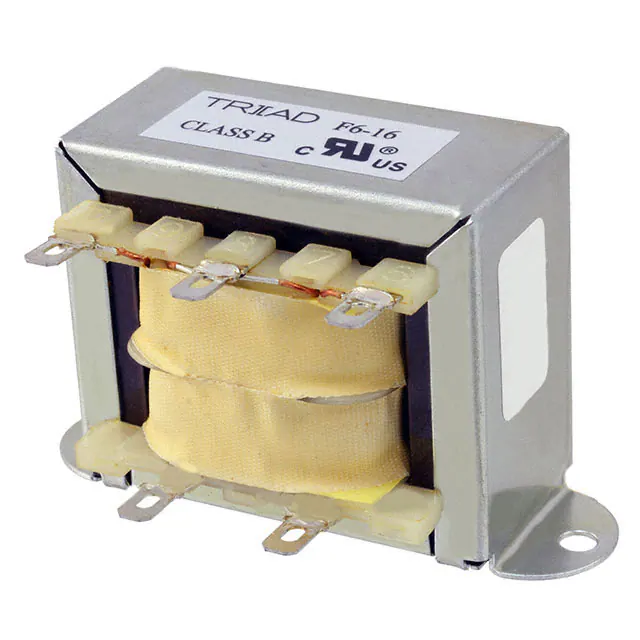

F6-16PWR XFMR LAMINATED 30VA CHAS MT |
3,056 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 16V | 2A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|

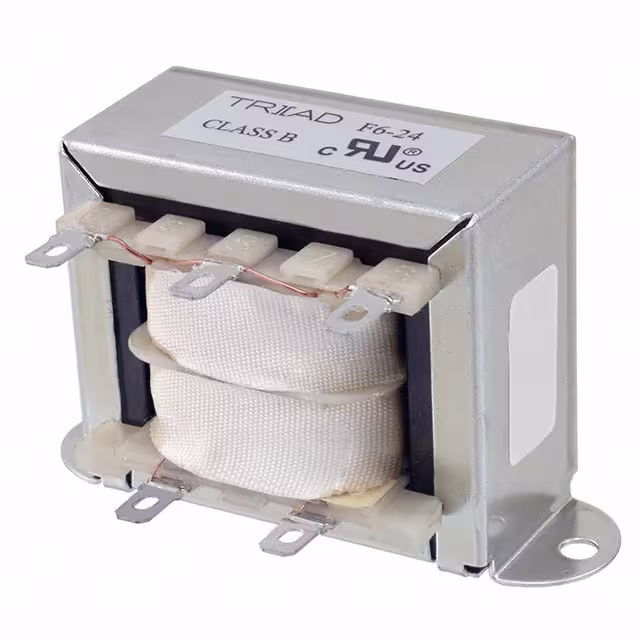

F6-24PWR XFMR LAMINATED 30VA CHAS MT |
1,016 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 24V | 1.25A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|

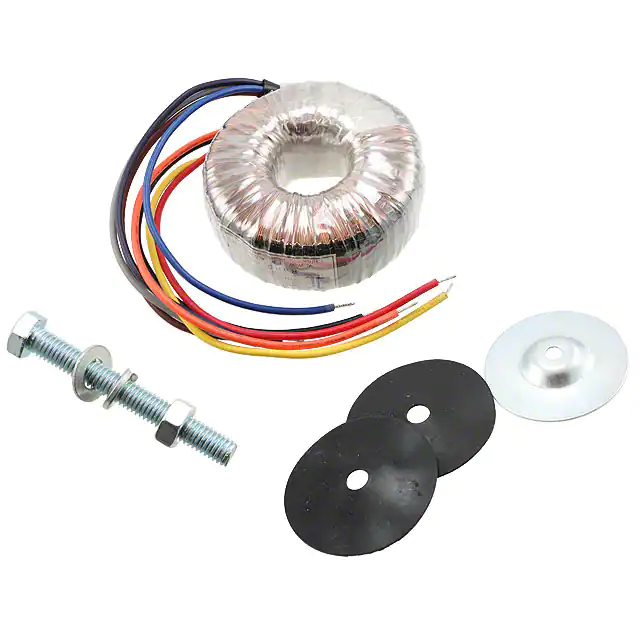

VPT48-520PWR XFMR TOROIDAL 25VA CHAS MT |
4,255 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 24V, Series 48V | Parallel 1.04A, Series 520mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | 71.00mm Dia x 32.00mm W | 34.0mm | 4000Vrms | 0.882 lb (400.07 g) |
|

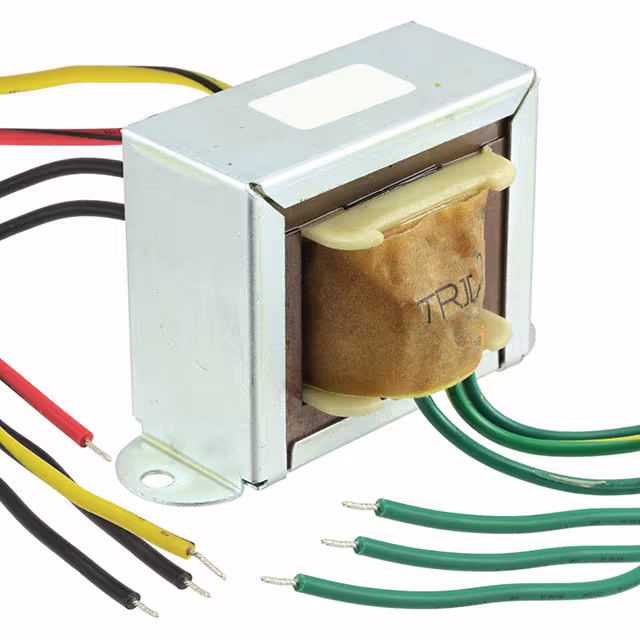

F-345XPWR XFMR LAMINATED 24VA CHAS MT |
1,336 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 24V | 1A | Dual | Single | Yes | 24VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms | 1.3 lbs (589.7 g) |
|

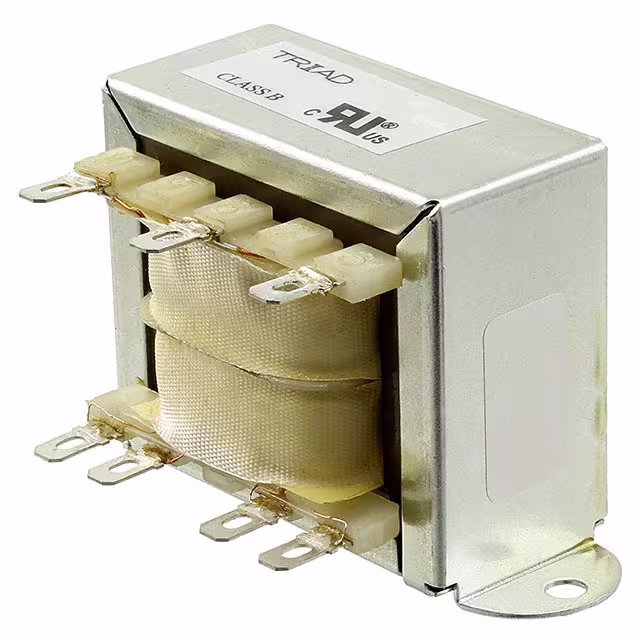

FD6-120PWR XFMR LAMINATED 30VA CHAS MT |
1,686 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 120V | 250mA | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|

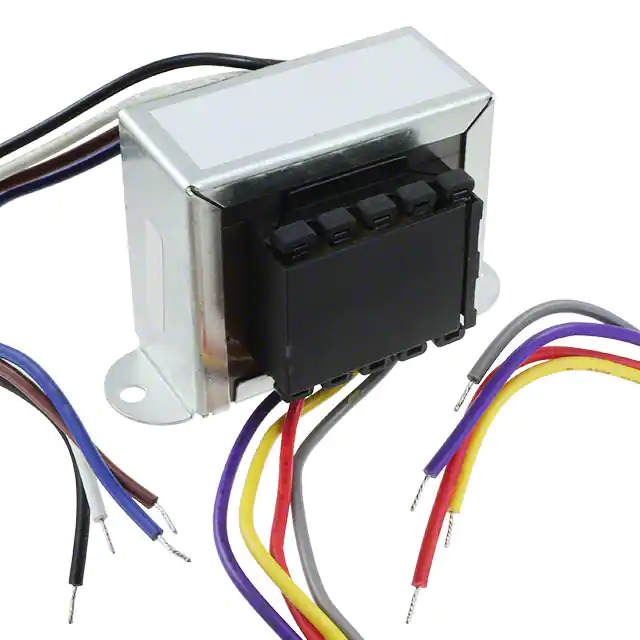

VPL2-10000PWR XFMR LAMINATED 25.0VA CHAS |
3,717 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 2.5V | 10A | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 53.98mm L x 82.55mm W | 49.22 mm | 3500Vrms | 1.3 lbs (589.7 g) |
|

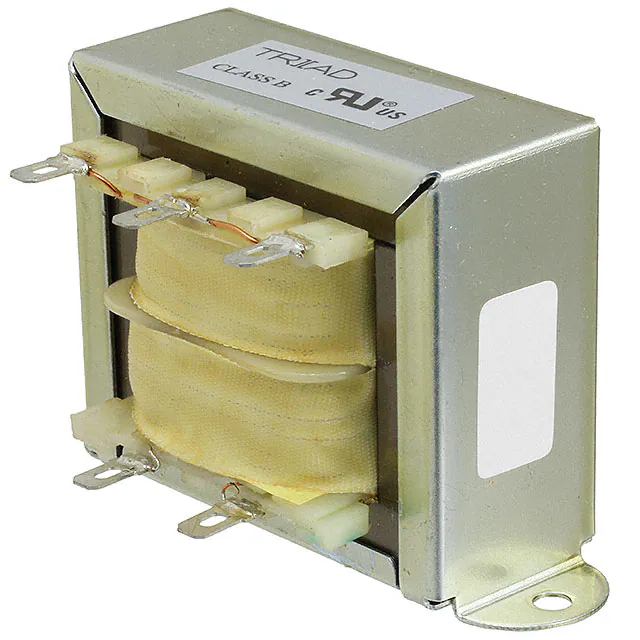

F7-24PWR XFMR LAMINATED 56VA CHAS MT |
2,900 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 24V | 2.4A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|

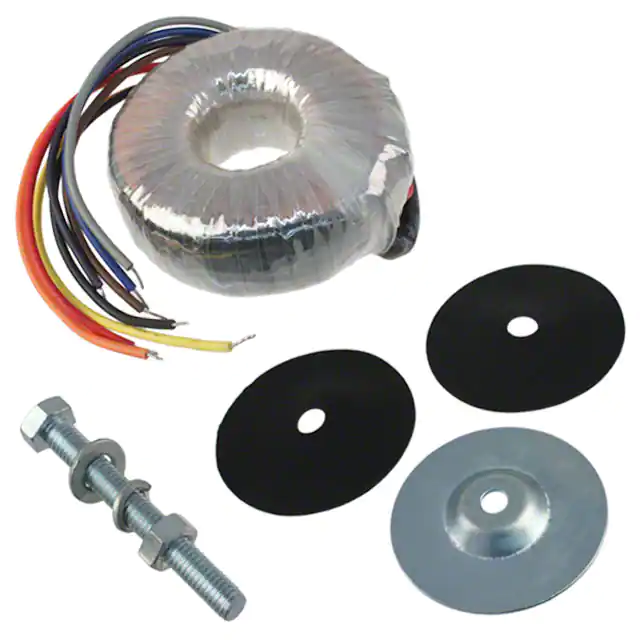

VPT230-110PWR XFMR TOROIDAL 25VA CHAS MT |
3,708 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 220mA, Series 110mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | 71.00mm Dia x 32.00mm W | 34.0mm | 4000Vrms | 0.882 lb (400.07 g) |
|
TCT50-01E07ABPWR XFMR LAMINATED 50VA CHAS MT |
1,952 | - |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V | 24V | 2.08A | Single | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.00mm | 1500Vrms | 2 lbs (907.2 g) |
Power Transformers FAQ
How can I narrow the current Power Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
