Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

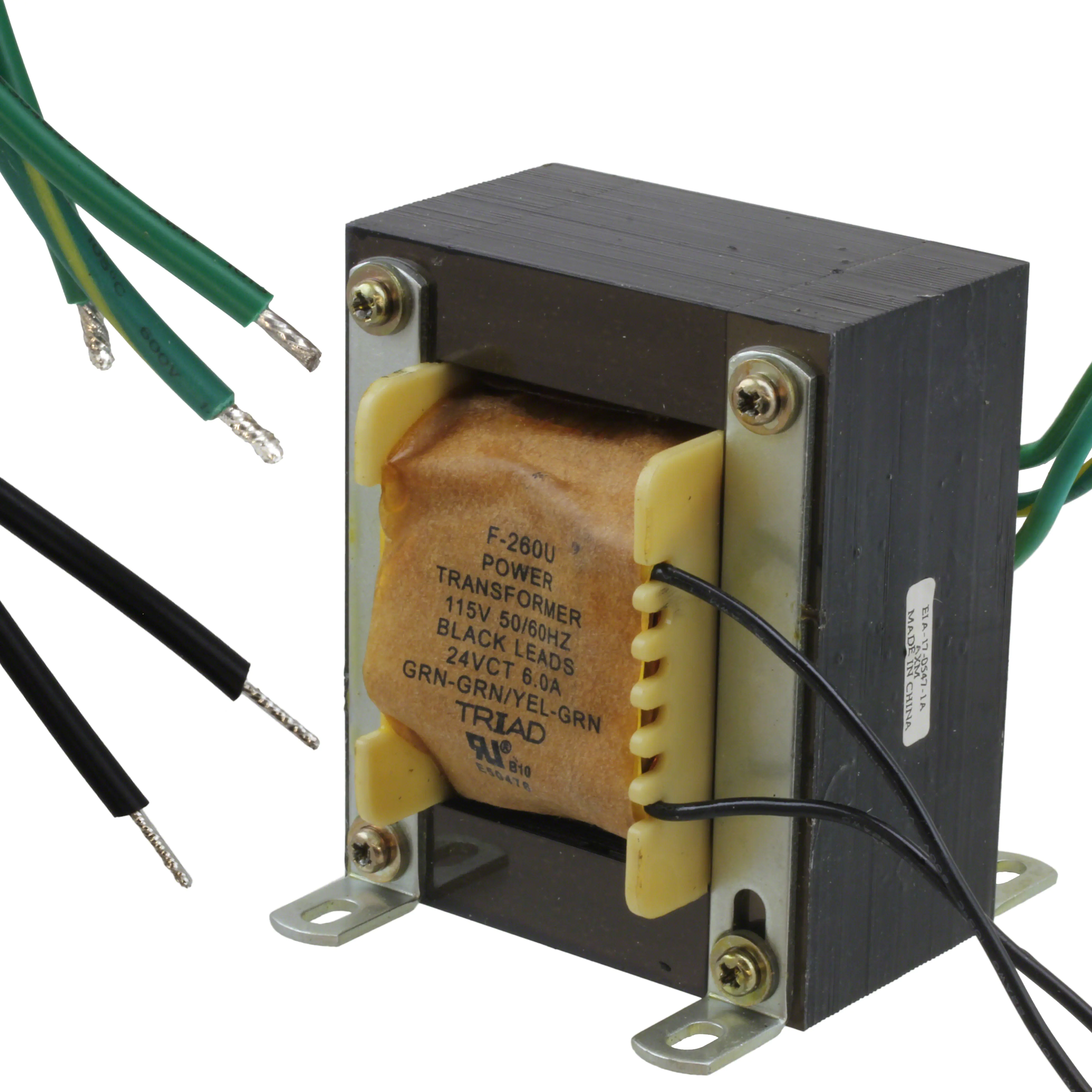

F-260UPWR XFMR LAMINATED 144VA CHAS MT |
3,279 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 24V | 6A | Single | Single | Yes | 144VA | Chassis Mount | Wire Leads | 79.38mm L x 88.90mm W | 95.25mm | 1500Vrms | 6.4 lbs (2.9 kg) |
|

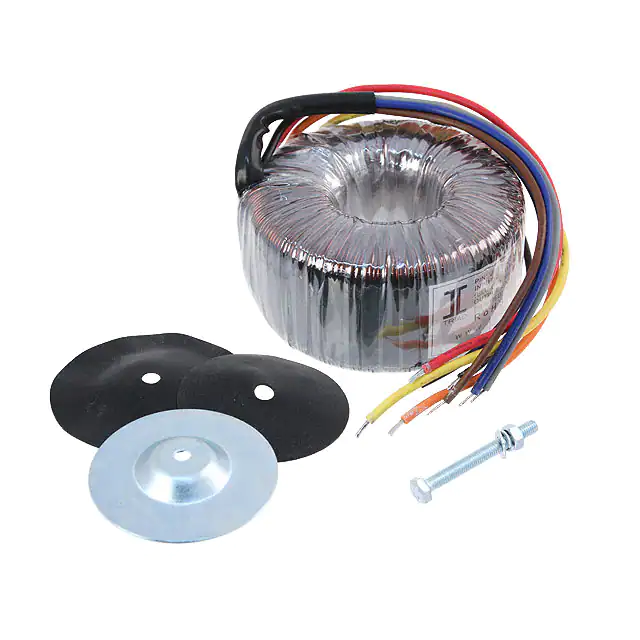

VPT30-3330PWR XFMR TOROIDAL 100VA CHAS MT |
3,701 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 6.66A, Series 3.33A | Dual | Dual | No | 100VA | Chassis Mount | Wire Leads | 87.00mm Dia x 47.00mm W | 51.0mm | 4000Vrms | 2.2 lbs (997.9 g) |
|

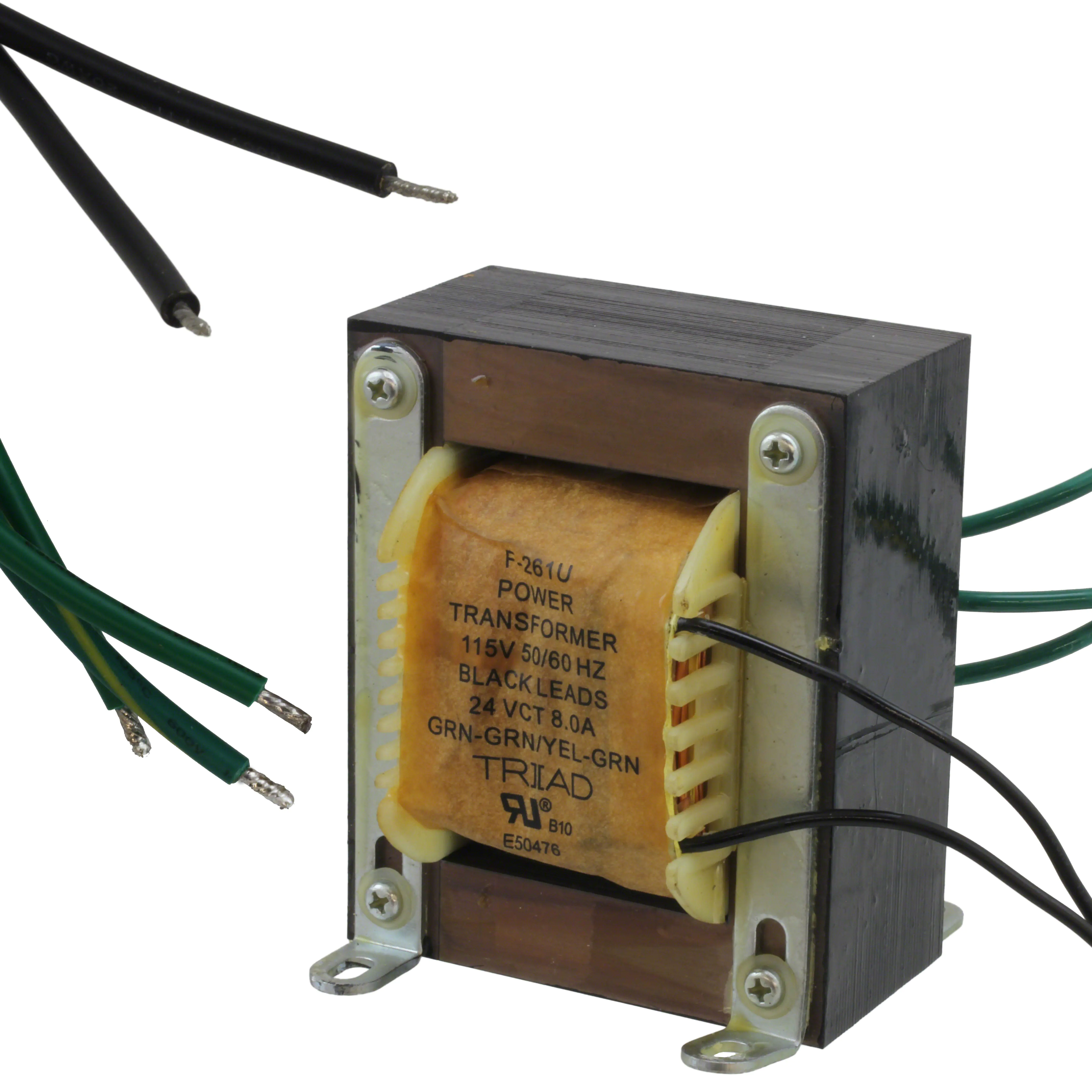

F-261UPWR XFMR LAMINATED 192VA CHAS MT |
1,483 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 24V | 8A | Single | Single | Yes | 192VA | Chassis Mount | Wire Leads | 87.30mm L x 88.90mm W | 104.77mm | 1500Vrms | 7.4 lbs (3.4 kg) |
|
VPS24-7300PWR XFMR LAMINATED 175VA CHAS MT |
3,533 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 14.6A, Series 7.3A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
|
VPS230-760PWR XFMR LAMINATED 175VA CHAS MT |
1,045 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.52A, Series 760mA | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|

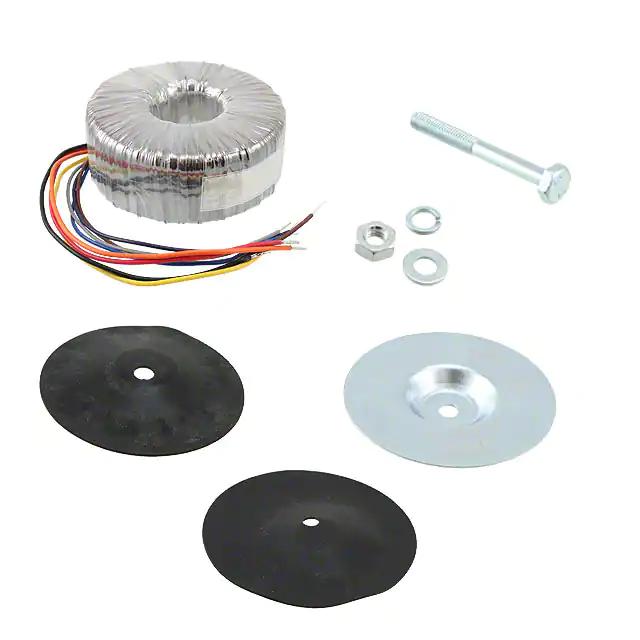

VPT100-5000PWR XFMR TOROIDAL 500VA CHAS MT |
2,702 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 50V, Series 100V | Parallel 10A, Series 5A | Dual | Dual | No | 500VA | Chassis Mount | Wire Leads | 140.00mm Dia x 60.00mm W | 66.0mm | 4000Vrms | 9.3 lbs (4.2 kg) |
|
VPM240-1040PWR XFMR TOROIDAL 250VA CHAS MT |
2,020 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 120V, Series 240V | Parallel 2.08A, Series 1.04A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Wire Leads | 123.00mm Dia | 60.00mm | 4000Vrms | 5.6 lbs (2.5 kg) |
|

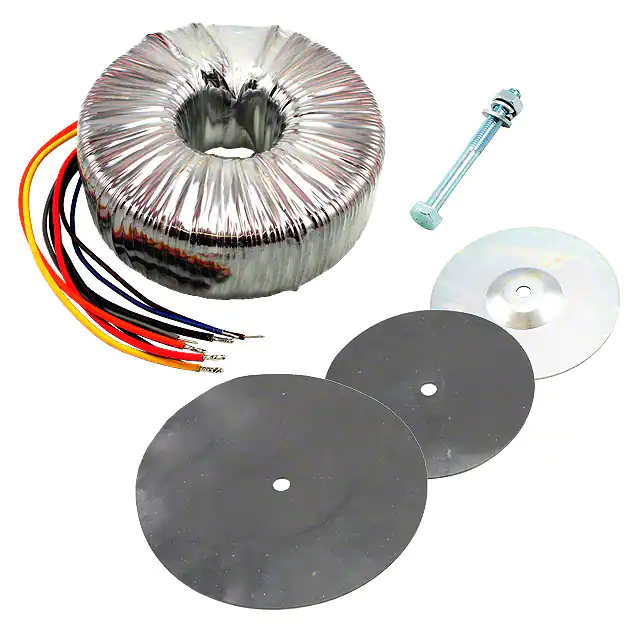

VPT48-20830PWR XFMR TOROIDAL 1000VA CHAS MT |
2,335 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 24V, Series 48V | Parallel 41.66A, Series 20.83A | Dual | Dual | No | 1000VA | Chassis Mount | Wire Leads | 175.00mm Dia x 68.00mm W | 76.0mm | 4000Vrms | 18 lbs (8.2 kg) |
|
VPT100-25000PWR XFMR TOROIDAL 2500VA CHAS MT |
3,144 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 50V, Series 100V | Parallel 50A, Series 25A | Dual | Dual | No | 2500VA | Chassis Mount | Wire Leads | 208.00mm Dia x 112.00mm W | 120.0mm | 4000Vrms | 43 lbs (19.5 kg) |
|

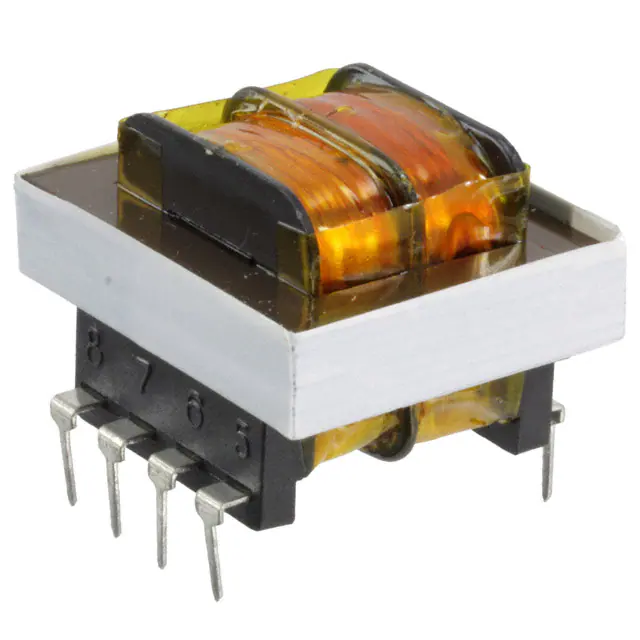

F24-045-C2PWR XFMR LAMINATED 1.1VA TH |
3,470 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 90mA, Series 45mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
Power Transformers FAQ
How can I narrow the current Power Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
