Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-214UPWR XFMR LAMINATED 96VA CHAS MT |
3,742 | - |
|
Datasheet | Control Transformers | Box | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 4A, Series 2A | Single | Dual | No | 96VA | Chassis Mount | Solder Lug | 80.95mm L x 71.42mm W | 86.51mm | 1500Vrms | 3.3 lbs (1.5 kg) |
|
F-108UPWR XFMR LAMINATED 96VA CHAS MT |
4,178 | - |
|
Datasheet | Control Transformers | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 8A, Series 4A | Dual | Dual | No | 96VA | Chassis Mount | Solder Lug | 71.42mm L x 63.50mm W | 86.51mm | 1500Vrms | 3.5 lbs (1.6 kg) |
|
VPT18-5560PWR XFMR TOROIDAL 100VA CHAS MT |
2,194 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 11.12A, Series 5.56A | Dual | Dual | No | 100VA | Chassis Mount | Wire Leads | 87.00mm Dia x 47.00mm W | 51.0mm | 4000Vrms | 2.2 lbs (997.9 g) |
|
VPS12-14000PWR XFMR LAMINATED 175VA CHAS MT |
1,296 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 28A, Series 14A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
|
VPS36-4800PWR XFMR LAMINATED 175VA CHAS MT |
4,481 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 9.6A, Series 4.8A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
|
VPS20-8800PWR XFMR LAMINATED 175VA CHAS MT |
1,033 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 17.6A, Series 8.8A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
VPM240-210PWR XFMR TOROIDAL 50VA CHAS MT |
4,612 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 120V, Series 240V | Parallel 420mA, Series 210mA | Dual, Multiple Taps | Dual | No | 50VA | Chassis Mount | Wire Leads | 92.00mm Dia | 38.00mm | 4000Vrms | 1.6 lbs (725.7 g) |
|

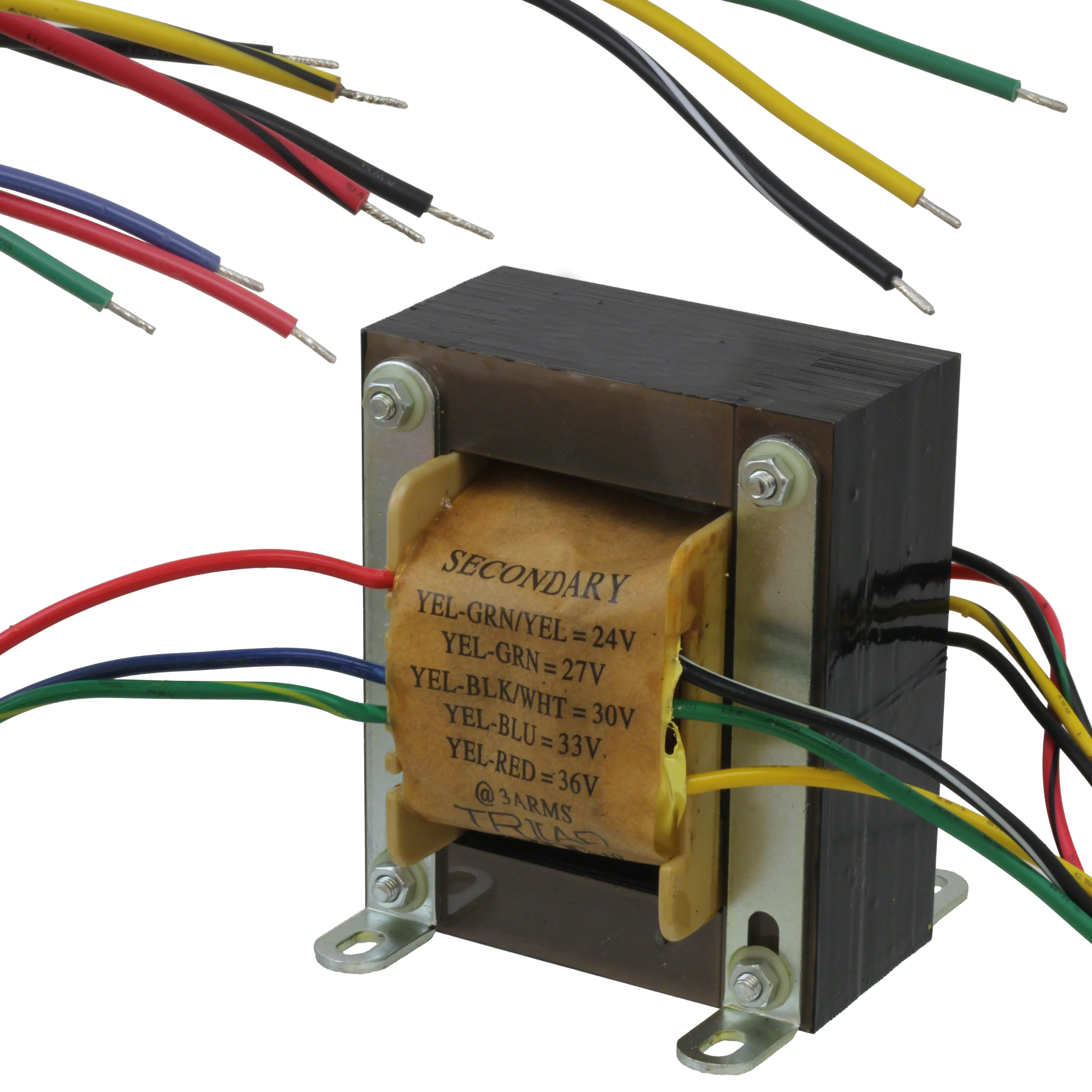

F-361UPWR XFMR LAMINATED 108VA CHAS MT |
4,169 | - |
|
Datasheet | Universal | Box | Active | Laminated Core | 115V, 230V | 24V, 27V, 30V, 33V, 36V | 3A | Dual | Single, Multiple Taps | No | 108VA | Chassis Mount | Wire Leads | 79.38mm L x 82.55mm W | 95.25mm | 1500Vrms | 5.7 lbs (2.6 kg) |
|

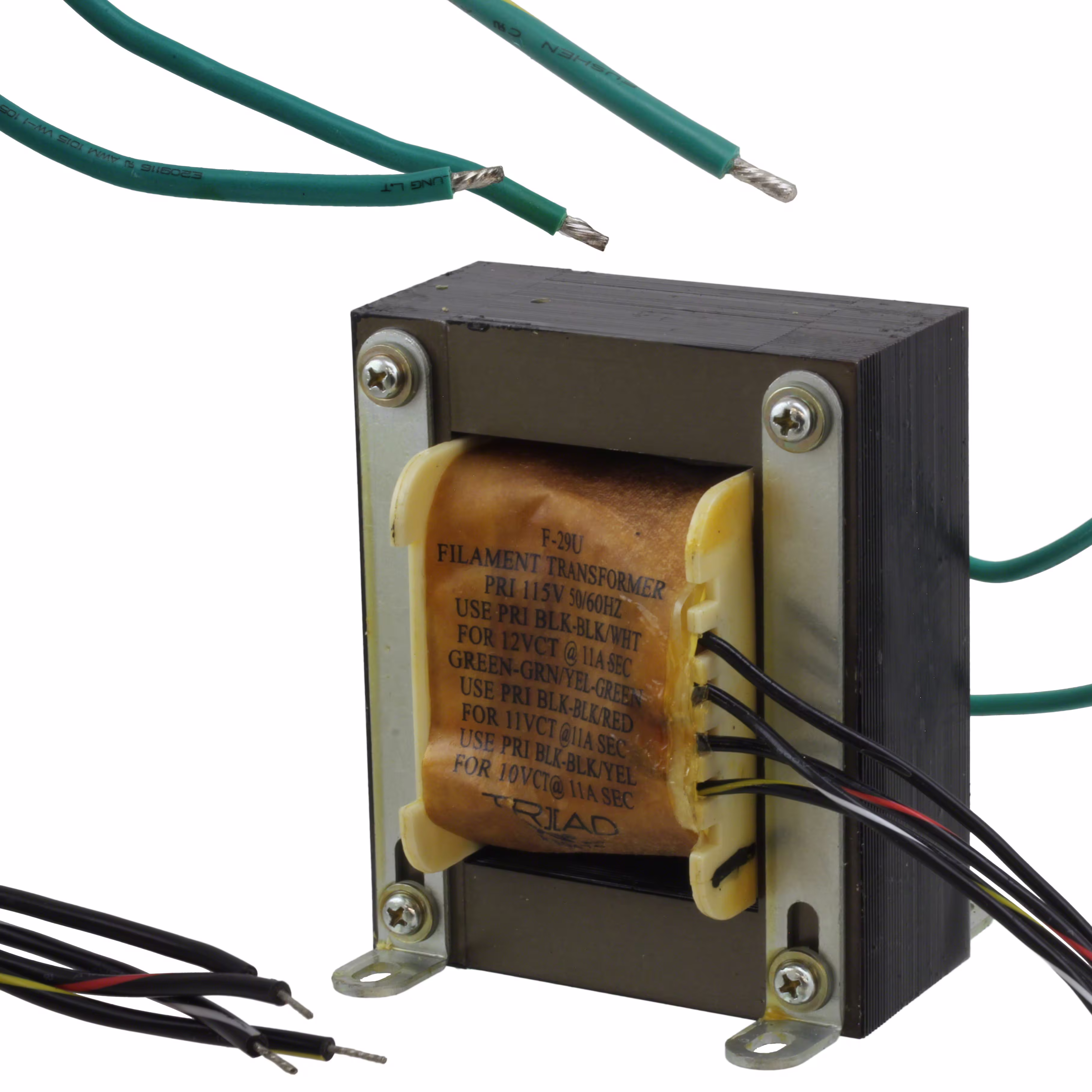

F-29UPWR XFMR LAMINATED 132VA CHAS MT |
3,145 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 10V, 11V, 12V | 11A | Single | Single | Yes | 132VA | Chassis Mount | Wire Leads | 88.90mm L x 85.73mm W | 104.77mm | 3000Vrms | 6.5 lbs (2.9 kg) |
|
|
VPM36-1390PWR XFMR TOROIDAL 50VA CHAS MT |
4,130 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 18V, Series 36V | Parallel 2.78A, Series 1.39A | Dual, Multiple Taps | Dual | No | 50VA | Chassis Mount | Wire Leads | 92.00mm Dia | 38.00mm | 4000Vrms | 1.1 lbs (499 g) |
