Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

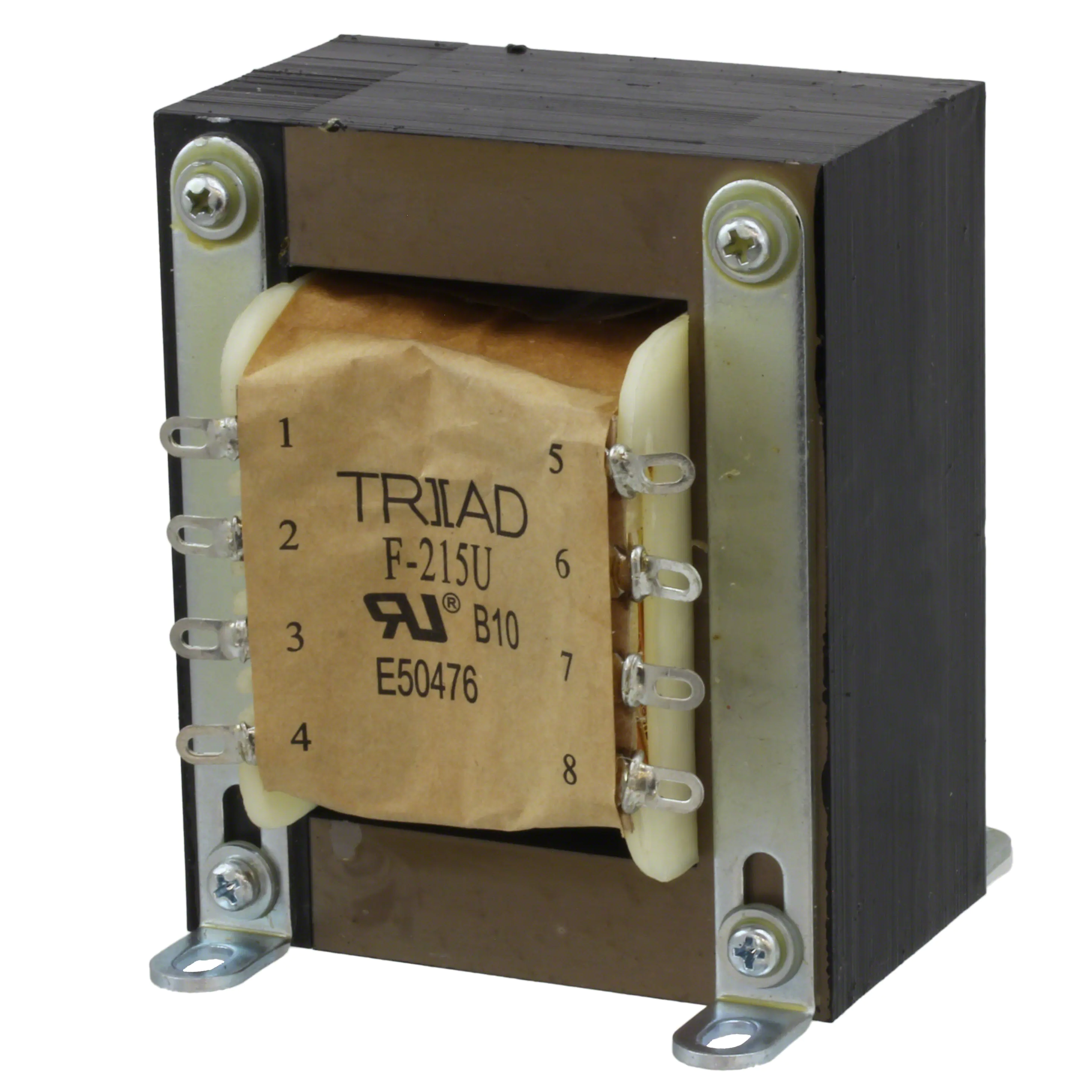

F-215UPWR XFMR LAMINATED 192VA CHAS MT |
2,225 | - |
|
Datasheet | Control Transformers | Box | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 8A, Series 4A | Single | Dual | No | 192VA | Chassis Mount | Solder Lug | 87.30mm L x 98.43mm W | 106.35mm | 1500Vrms | 6.1 lbs (2.8 kg) |
|
VPM18-5560PWR XFMR TOROIDAL 100VA CHAS MT |
4,614 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 9V, Series 18V | Parallel 11.12A, Series 5.56A | Dual, Multiple Taps | Dual | No | 100VA | Chassis Mount | Wire Leads | 96.00mm Dia | 52.00mm | 4000Vrms | 2.7 lbs (1.2 kg) |
|
|
VPM24-4170PWR XFMR TOROIDAL 100VA CHAS MT |
1,561 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 12V, Series 24V | Parallel 8.34A, Series 4.17A | Dual, Multiple Taps | Dual | No | 100VA | Chassis Mount | Wire Leads | 96.00mm Dia | 52.00mm | 4000Vrms | 2.7 lbs (1.2 kg) |
|

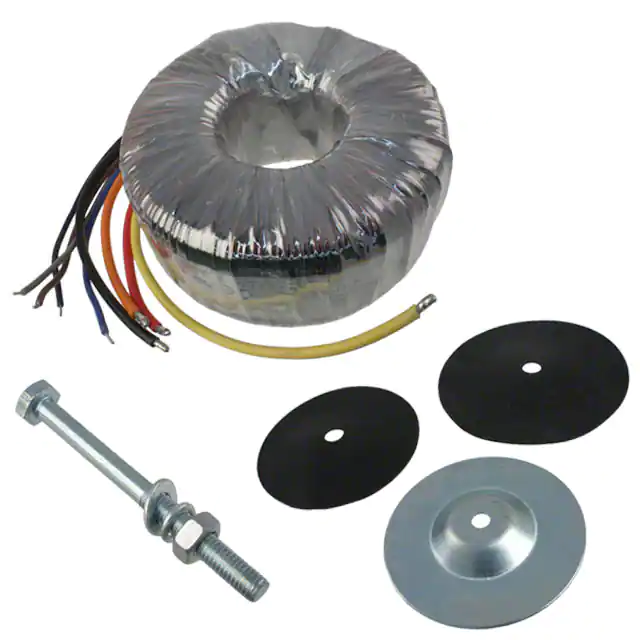

VPT12-20800PWR XFMR TOROIDAL 250VA CHAS MT |
2,592 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 6V, Series 12V | Parallel 41.6A, Series 20.8A | Dual | Dual | No | 250VA | Chassis Mount | Wire Leads | 112.00mm Dia x 54.00mm W | 58.0mm | 4000Vrms | 4.9 lbs (2.2 kg) |
|

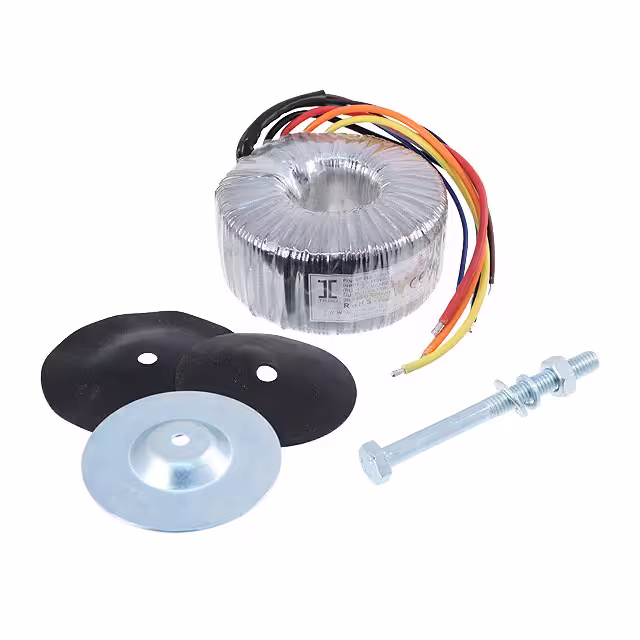

VPT18-13800PWR XFMR TOROIDAL 250VA CHAS MT |
2,627 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 27.6A, Series 13.8A | Dual | Dual | No | 250VA | Chassis Mount | Wire Leads | 112.00mm Dia x 54.00mm W | 58.0mm | 4000Vrms | 4.9 lbs (2.2 kg) |
|
|
VPM24-6670PWR XFMR TOROIDAL 160VA CHAS MT |
4,964 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 12V, Series 24V | Parallel 13.34A, Series 6.67A | Dual, Multiple Taps | Dual | No | 160VA | Chassis Mount | Wire Leads | 113.00mm Dia | 52.00mm | 4000Vrms | 4 lbs (1.8 kg) |
|

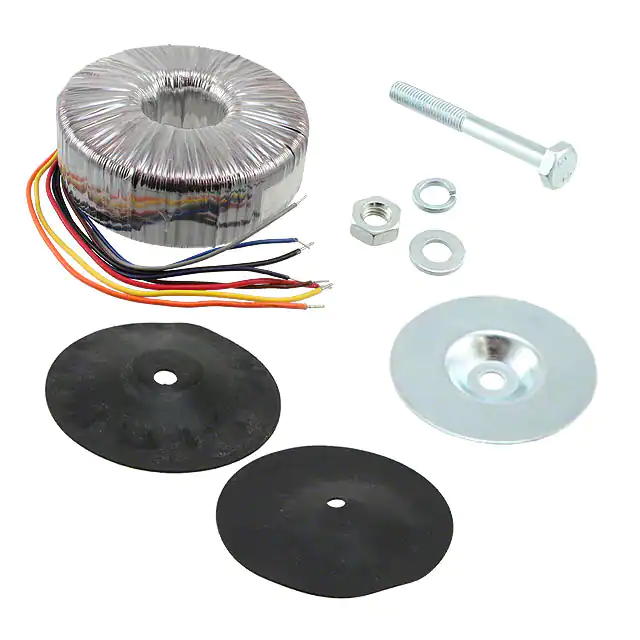

VPT100-10000PWR XFMR TOROIDAL 1000VA CHAS MT |
3,659 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 50V, Series 100V | Parallel 20A, Series 10A | Dual | Dual | No | 1000VA | Chassis Mount | Wire Leads | 175.00mm Dia x 68.00mm W | 76.0mm | 4000Vrms | 18 lbs (8.2 kg) |
|
|
VPM48-10400PWR XFMR TOROIDAL 500VA CHAS MT |
1,428 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 24V, Series 48V | Parallel 20.8A, Series 10.4A | Dual, Multiple Taps | Dual | No | 500VA | Chassis Mount | Wire Leads | 147.00mm Dia | 64.00mm | 4000Vrms | 10 lbs (4.5 kg) |
|
|
VPM48-20830PWR XFMR TOROIDAL 1000VA CHAS MT |
1,574 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 24V, Series 48V | Parallel 41.66A, Series 20.83A | Dual, Multiple Taps | Dual | No | 1000VA | Chassis Mount | Wire Leads | 183.00mm Dia | 74.00mm | 4000Vrms | 19 lbs (8.6 kg) |
|
VPP28-090-BPWR XFMR LAMINATED 2.5VA TH |
3,251 | - |
|
Datasheet | PC Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 180mA, Series 90mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 28.58mm | 4000Vrms | 0.25 lb (113.4 g) |
