Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F20-120-C2PWR XFMR LAMINATED 2.5VA TH |
1,659 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 240mA, Series 120mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
|
F36-065-C2PWR XFMR LAMINATED 2.4VA TH |
2,724 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 130mA, Series 65mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms | 0.25 lb (113.4 g) |
|
|
F48-050-C2PWR XFMR LAMINATED 2.5VA TH |
3,643 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 100mA, Series 50mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
|
F56-045-C2PWR XFMR LAMINATED 2.5VA TH |
1,043 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 28 V, Series 56V | Parallel 90mA, Series 45mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
FS36-065-C2PWR XFMR LAMINATED 2.4VA TH |
2,648 | - |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 130mA, Series 65mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms | 0.25 lb (113.4 g) |
|
|
FS56-045-C2PWR XFMR LAMINATED 2.4VA TH |
1,339 | - |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 90mA, Series 45mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms | 0.25 lb (113.4 g) |
|
F10-110PWR XFMR LAMINATED 1.1VA TH |
1,678 | - |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 220mA, Series 110mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|

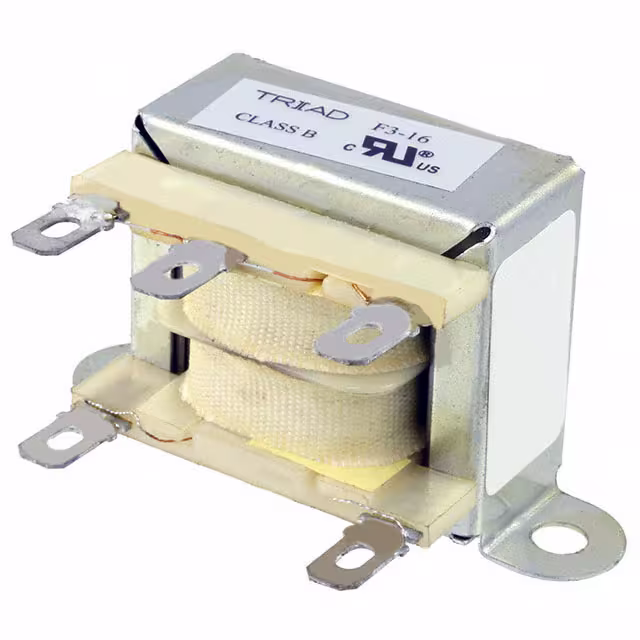

F3-16PWR XFMR LAMINATED 2.4VA CHAS MT |
3,347 | - |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 16V | 150mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
|

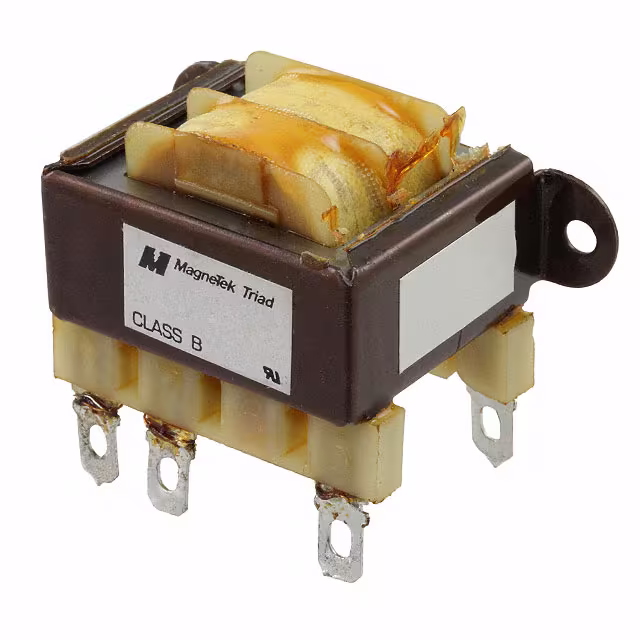

F3-20PWR XFMR LAMINATED 2.4VA CHAS MT |
3,852 | - |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 20V | 112mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
|
F3-28PWR XFMR LAMINATED 2.4VA CHAS MT |
4,218 | - |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 28V | 85mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
Power Transformers FAQ
How can I narrow the current Power Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
