Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

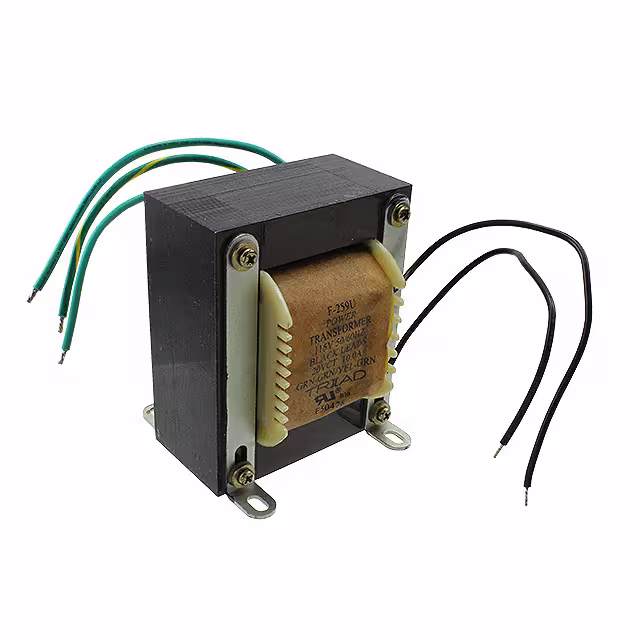

F-259UPWR XFMR LAMINATED 200VA CHAS MT |
1,450 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 20V | 10A | Single | Single | Yes | 200VA | Chassis Mount | Wire Leads | 87.30mm L x 88.90mm W | 104.77mm | 1500Vrms | 7.4 lbs (3.4 kg) |
|
VPT18-8800PWR XFMR TOROIDAL 160VA CHAS MT |
2,182 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 17.6A, Series 8.8A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 103.00mm Dia x 48.00mm W | 52.0mm | 4000Vrms | 3.6 lbs (1.6 kg) |
|
VPM240-31200PWR XFMR TOROIDAL 7500VA CHAS MT |
4,659 | - |
|
Datasheet | Toroidal Medical, VPM | Bulk | Active | Toroidal | 208V, 240V | Parallel 120V, Series 240V | Parallel 62.4A, Series 31.2A | Dual, Multiple Taps | Dual | No | 7500VA | Chassis Mount | Wire Leads | 330.00mm Dia | 140.00mm | 4000Vrms | 137 lbs (62.1 kg) |
|
F28-040-C2PWR XFMR LAMINATED 1.1VA TH |
2,365 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
F-133PPWR XFMR LAMINATED 1.5VA TH |
4,682 | - |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 15V, Series 30V | Parallel 100mA, Series 50mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 35.31mm L x 39.67mm W | 30.15mm | 1500Vrms | 0.219 lb (99.34 g) |
|
|
F20-055-C2PWR XFMR LAMINATED 1.1VA TH |
2,838 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 110mA, Series 55mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
FS48-050-C2PWR XFMR LAMINATED 2.4VA TH |
2,670 | - |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 100mA, Series 50mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms | 0.25 lb (113.4 g) |
|
F48-023PWR XFMR LAMINATED 1.1VA TH |
3,313 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 46mA, Series 23mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
F28-420-C2-BPWR XFMR LAMINATED 12VA TH |
3,007 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 840mA, Series 420mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|

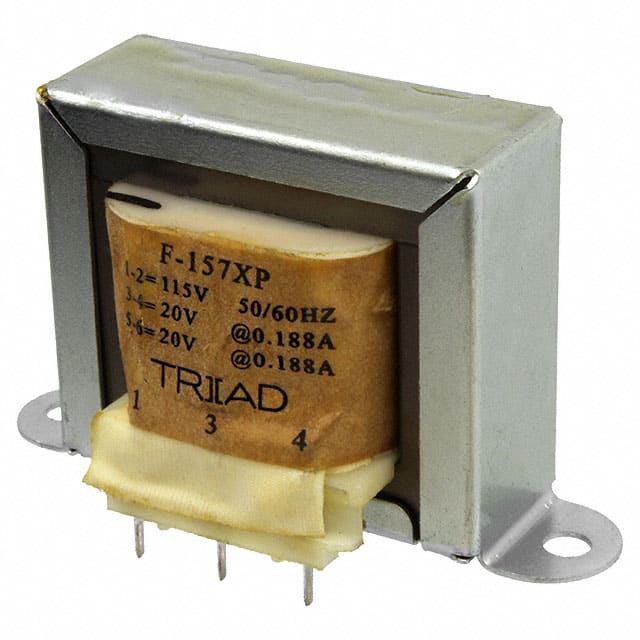

F-157XPPWR XFMR LAMINATED 7.5VA CHAS MT |
3,565 | - |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 20V, Series 40V | Parallel 376mA, Series 188mA | Single | Dual | No | 7.5VA | Chassis Mount | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms | 0.657 lb (298.01 g) |
Power Transformers FAQ
How can I narrow the current Power Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
