PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LVR100S-240PTC RESET FUSE 240V 1A RADIAL |
3,435 | - |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bulk | Active | Polymeric | 240V (265V Int) | 1 A | 2 A | 10 A | 21 s | 218 mOhms | 580 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.736" Dia x 0.201" T (18.70mm x 5.10mm) | 0.961" (24.40mm) | - | 0.400" (10.15mm) |
|

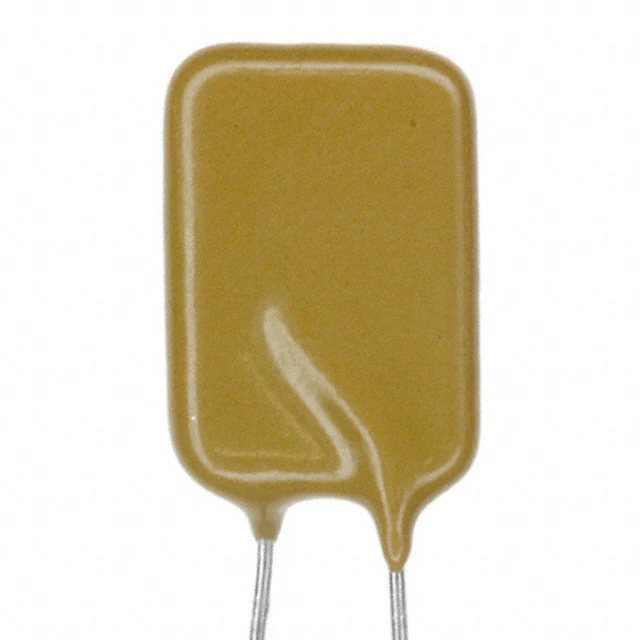

0ZRE0200FF1APTC RESET FUSE 240V 2A RADIAL |
13,996 | - |
|
Datasheet | Radial, Disc | 0ZRE | Bulk | Active | Polymeric | 240V | 2 A | 4 A | 20 A | 28 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.980" L x 0.240" W (24.90mm x 6.10mm) | 1.331" (33.80mm) | - | 0.402" (10.20mm) |
|
1206L050/24WRPTC RESET FUSE 24V 500MA 1206 |
4,385 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 24V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 750 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.049" (1.25mm) | - |
|
MF-GSMF300/36X-2PTC RESET FUSE 36V 3A SMD |
17,448 | - |
|
Datasheet | Nonstandard SMD | Multifuse®, MF-GSMF | Tape & Reel (TR) | Active | Polymeric | 36V | 3 A | 5.2 A | 20 A | 20 s | 10 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.341" L x 0.250" W (8.65mm x 6.35mm) | - | 0.063" (1.60mm) | - |
|

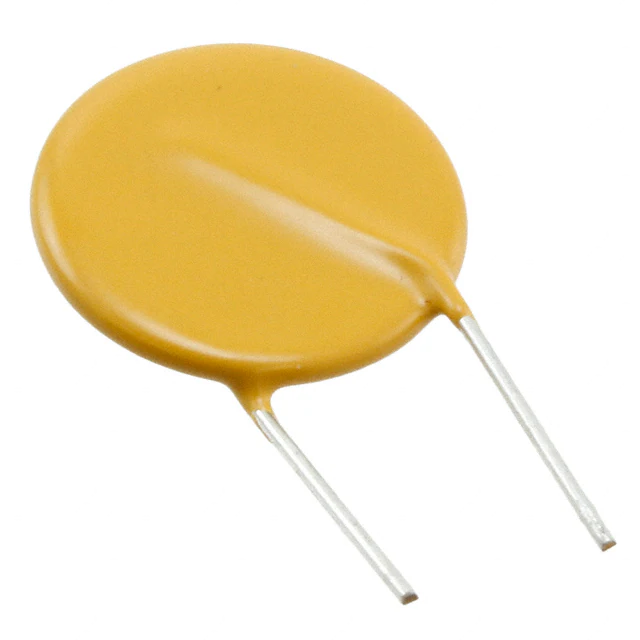

LVR125S-240PTC RESET FUSE 240V 1.25A RADIAL |
5,132 | - |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bulk | Active | Polymeric | 240V (265V Int) | 1.25 A | 2.5 A | 12.5 A | 23 s | 165 mOhms | 440 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.835" Dia x 0.209" T (21.20mm x 5.30mm) | 1.079" (27.40mm) | - | 0.400" (10.15mm) |
|

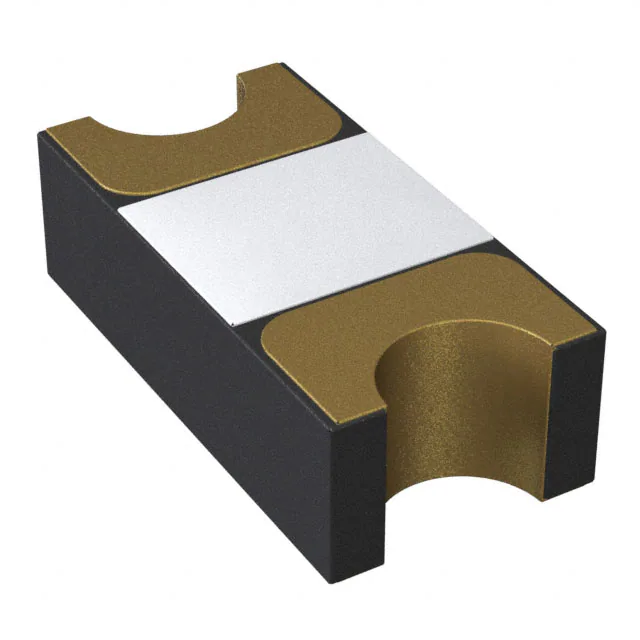

MF-ASML010/6-2PTC RESET FUSE 6V 100MA 0402 |
27,208 | - |
|
Datasheet | 0402 (1005 Metric), Concave | Multifuse®, MF-ASML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 100 mA | 300 mA | 50 A | 1 s | 150 mOhms | 3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
B59315P1120A062PTC RESET FUSE 80V 150MA 4032 |
5,013 | - |
|
Datasheet | 4032 (1080 Metric) | B59315 | Tape & Reel (TR) | Active | Ceramic | 80V | 150 mA | 310 mA | 1.6 A | - | - | - | 16 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.394" L x 0.315" W (10.00mm x 8.00mm) | - | 0.150" (3.80mm) | - |
,-Concave.jpg "0ZCF0330FF2C")
|
0ZCF0330FF2CPTC RESET FUSE 24V 3.3A 2920 |
8,450 | - |
|
Datasheet | 2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 24V | 3.3 A | 5.5 A | 100 A | 20 s | 10 mOhms | 48 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
|
|
0ZCF0400FF2APTC RESET FUSE 16V 4A 2920 |
3,469 | - |
|
Datasheet | 2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 8 A | 100 A | 4 s | 10 mOhms | 40 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.059" (1.50mm) | - |
|
|
0ZCF0500FF2APTC RESET FUSE 16V 5A 2920 |
1,105 | - |
|
Datasheet | 2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 16V | 5 A | 10 A | 100 A | 5 s | 5 mOhms | 25 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.059" (1.50mm) | - |
|
0603L002/60YRPTC RESET FUSE 60V 20MA 0603 |
7,096 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 60V | 20 mA | 60 mA | 40 A | 1 s | 12 Ohms | 70 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|
|
0603L001/60YRPTC RESET FUSE 60V 10MA 0603 |
2,408 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 60V | 10 mA | 50 mA | 40 A | 1 s | 15 Ohms | 100 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|
B59840C0130A070PTC RESET FUSE 265V 330MA RADIAL |
2,918 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 265V | 330 mA | 500 mA | 2.2 A | - | - | - | 9 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.197" T (17.50mm x 5.00mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|
2920L400/15MRPTC RESET FUSE 15V 4A 2920 |
39,002 | - |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 15V | 4 A | 8 A | 40 A | 4 s | 10 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.063" (1.60mm) | - |
|
|
1206L075SLYRPTC RESET FUSE 6V 750MA 1206 |
5,981 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 50 A | 300 ms | 17 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.030" (0.75mm) | - |
 Concave.jpg "0603L100SLYR")
|
0603L100SLYRPTC RESET FUSE 6V 1A 0603 |
11,960 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 1 A | 1.8 A | 50 A | 300 ms | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
0805L110SLYRPTC RESET FUSE 6V 1.1A 0805 |
1,899 | - |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 1.8 A | 50 A | 300 ms | 30 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
1206L300SLTHYRPTC RESET FUSE 6V 3A 1206 |
1,289 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 50 A | 4 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.032" (0.80mm) | - |
|
1812L260SLPRPTC RESET FUSE 6V 2.6A 1812 |
7,013 | - |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 6 A | 50 A | 2 s | 3 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|
|
0603L050YRPTC RESET FUSE 6V 500MA 0603 |
9,592 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 40 A | 100 ms | 100 mOhms | 680 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.061" (1.55mm) | - |
PTC Resettable Fuses FAQ
What PTC Resettable Fuses components can I source from EGOO?
You can browse available PTC Resettable Fuses product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PTC Resettable Fuses parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
