PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

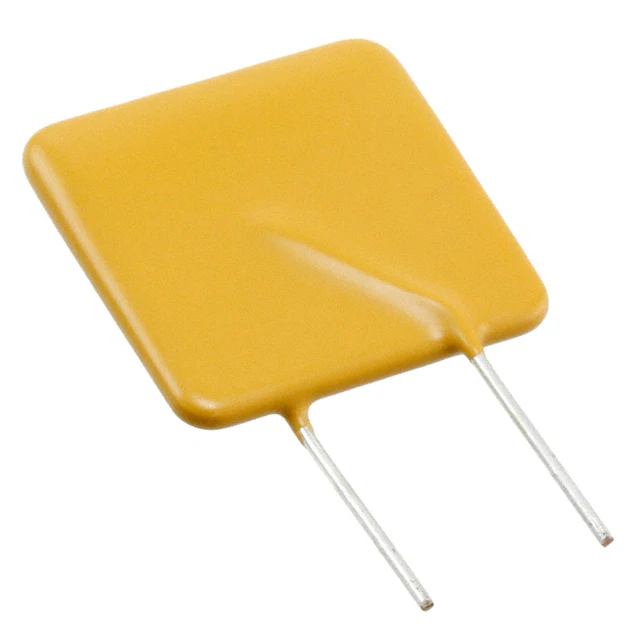

LVR200S-240PTC RESET FUSE 240V 2A RADIAL |
2,123 | - |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bulk | Active | Polymeric | 240V (265V Int) | 2 A | 4 A | 20 A | 28 s | 89 mOhms | 221 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.980" L x 0.240" W (24.90mm x 6.10mm) | 1.331" (33.80mm) | - | 0.400" (10.15mm) |
|
0805L020YRPTC RESET FUSE 9V 200MA 0805 |
19,772 | - |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 9V | 200 mA | 500 mA | 100 A | 20 ms | 650 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
0805L035YRPTC RESET FUSE 6V 350MA 0805 |
14,354 | - |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 100 A | 100 ms | 250 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
|
0805L010YRPTC RESET FUSE 15V 100MA 0805 |
12,018 | - |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 15V | 100 mA | 300 mA | 100 A | 1.5 s | 1 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
0805L005/30YRPTC RESET FUSE 30V 50MA 0805 |
8,332 | - |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 30V | 50 mA | 150 mA | 40 A | 1.5 s | 3.6 Ohms | 20 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
0603L004YRPTC RESET FUSE 24V 40MA 0603 |
119,060 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 24V | 40 mA | 120 mA | 20 A | 1 s | 4 Ohms | 40 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
|
0805L050WRPTC RESET FUSE 6V 500MA 0805 |
59,278 | - |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 850 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
|
0603L010YRPTC RESET FUSE 15V 100MA 0603 |
21,766 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 15V | 100 mA | 300 mA | 40 A | 1 s | 900 mOhms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
|
0603L035YRPTC RESET FUSE 6V 350MA 0603 |
9,565 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 40 A | 100 ms | 200 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.061" (1.55mm) | - |
|
|
0805L100WRPTC RESET FUSE 6V 1A 0805 |
7,532 | - |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 6V | 1 A | 1.95 A | 40 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.071" (1.80mm) | - |
|
|
0603L025YRPTC RESET FUSE 9V 250MA 0603 |
5,961 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 9V | 250 mA | 550 mA | 40 A | 80 ms | 500 mOhms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
|
0603L020YRPTC RESET FUSE 9V 200MA 0603 |
4,885 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 9V | 200 mA | 500 mA | 40 A | 600 ms | 550 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|

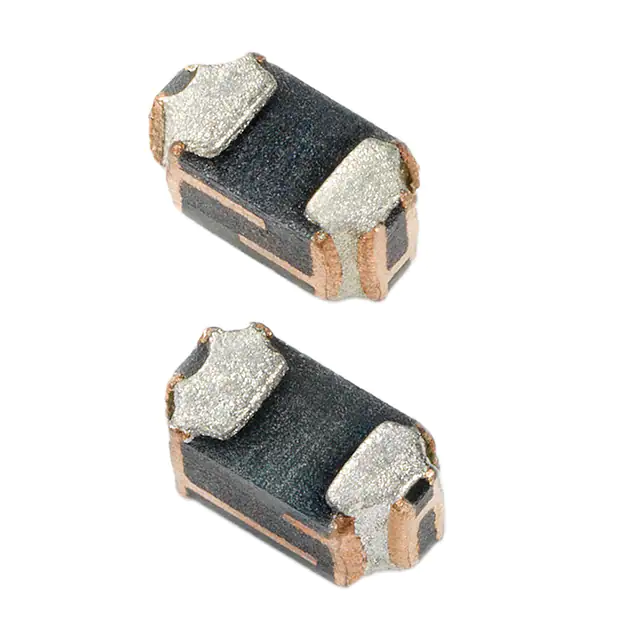

0402L100SLKRPTC RESET FUSE 1.0A 6V 0402 |
10,738 | - |
|
Datasheet | 0402 (1005 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 1 A | 2 A | 40 A | 200 ms | 30 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
YQS8068PTC RESET FUSE 265V 65MA RADIAL |
1,945 | - |
|
Datasheet | Radial, Disc | YM | Bulk | Active | Ceramic | 265V | 65 mA | 98 mA | 400 mA | - | - | - | 100 Ohms | 0°C ~ 55°C | - | - | - | Through Hole | 0.217" Dia x 0.197" T (5.50mm x 5.00mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
0402L035SLKRPTC RESET FUSE 6V 350MA 0402 |
12,070 | - |
|
Datasheet | 0402 (1005 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 700 mA | 50 A | 100 ms | 50 mOhms | 700 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
1206L150/12SLYRPTC RESET FUSE 12V 1.5A 1206 |
6,600 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 12V | 1.5 A | 3 A | 50 A | 300 ms | 10 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.033" (0.85mm) | - |
|
|
0402L010SLKRPTC RESET FUSE 6V 100MA 0402 |
13,494 | - |
|
Datasheet | 0402 (1005 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 100 mA | 300 mA | 40 A | 1 s | 150 mOhms | 2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
2920L700/24SLERPTC RESET FUSE 7.0A 24V 2920 |
2,743 | - |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 24V | 7 A | 14 A | 50 A | 2 s | 1 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.079" (2.00mm) | - |
|
|
2920L500/24SLDRPTC RESET FUSE 5.0A 24V 2920 |
1,950 | - |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 24V | 5 A | 10 A | 50 A | 2 s | 1 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.079" (2.00mm) | - |
|
|
2920L600/24SLERPTC RESET FUSE 6.0A 24V 2920 |
5,159 | - |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 24V | 6 A | 12 A | 50 A | 2 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.079" (2.00mm) | - |
