PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LVRL200PTC RESET FUSE 120V 2A RADIAL |
9,219 | - |
|
Datasheet | Radial, Disc | PolySwitch®, LVRL | Bulk | Obsolete | Polymeric | 120V (135V Int) | 2 A | 4.2 A | 20 A | 36 s | 80 mOhms | 210 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.925" L x 0.161" W (23.50mm x 4.10mm) | 1.252" (31.80mm) | - | 0.400" (10.15mm) |
|
PTR060V0090-TRPTC RESET FUSE 60V 900MA RADIAL |
8,602 | - |
|
Datasheet | Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" Dia x 0.118" T (11.70mm x 3.00mm) | 0.618" (15.70mm) | - | 0.197" (5.00mm) |
|
PTCCL11H361FBETHERMISTOR PTC 5.3 OHM 20% RAD |
5,353 | - |
|
Datasheet | Radial, Disc | PTCCL - 145V | Bulk | Obsolete | Ceramic | 145V | 360 mA | 540 mA | 3.5 A | - | - | - | 5.3 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.413" Dia x 0.197" T (10.50mm x 5.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
MF-RG1000-0-14PTC RESETTABLE 10A 16V RADIAL LE |
6,959 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
PTGLCSAS1R2K3B51A0PTC RESET FUSE 51V 749MA RADIAL |
8,736 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 51V | 749 mA | 996 mA | 5 A | - | - | - | 1.2 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.453" Dia x 0.138" T (11.50mm x 3.50mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|
RL3005-25-110-12-PTFPTC RESET FUSE 12V 180MA RADIAL |
4,802 | - |
|
Datasheet | Radial, Disc | PTF | Bulk | Obsolete | Ceramic | 12V | 180 mA | 120 mA | - | - | - | - | 25 Ohms | - | - | - | - | Through Hole | 0.350" Dia x 0.150" T (8.90mm x 3.80mm) | 0.350" (8.89mm) | - | 0.250" (6.35mm) |
|
RL3005-10-110-12-PTFPTC RESET FUSE 12V 190MA RADIAL |
3,806 | - |
|
Datasheet | Radial, Disc | PTF | Bulk | Obsolete | Ceramic | 12V | 190 mA | 290 mA | - | - | - | - | 10 Ohms | - | - | - | - | Through Hole | 0.350" Dia x 0.150" T (8.90mm x 3.80mm) | 0.350" (8.89mm) | - | 0.250" (6.35mm) |
|
RGEF700-APPTC RESET FUSE 16V 7A RADIAL |
2,622 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Cut Tape (CT) | Obsolete | Polymeric | 16V | 7 A | 11.9 A | 100 A | 3.5 s | 7.7 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.098" W (10.70mm x 2.50mm) | 0.776" (19.70mm) | - | 0.199" (5.05mm) |
|
RHEF050-APPTC RESET FUSE 30V 500MA RADIAL |
7,692 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RHEF | Cut Tape (CT) | Active | Polymeric | 30V | 500 mA | 920 mA | 40 A | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|

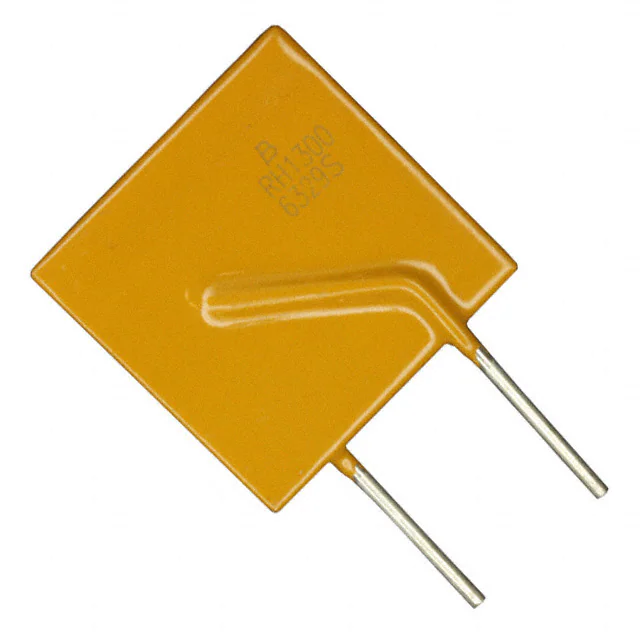

MF-RHT1300-APPTC RESET FUSE 16V 13A RADIAL |
4,597 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Tape & Box (TB) | Active | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.215" (5.45mm) |
|
|
MF-RG1000-AP-14PTC RESETTABLE 10A 16V RADIAL LE |
5,907 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
|
MF-RG1000-2-14PTC RESETTABLE 10A 16V RADIAL LE |
5,747 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT1300-0-14PTC 13.0A 16V RADIAL LEADED HI-T |
9,013 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.402" (10.20mm) |
|
SMD200-2POLYSWITCH 2.00A HOLD SMD |
9,823 | - |
|
Datasheet | 2-SMD | PolySwitch®, SMD | Cut Tape (CT) | Obsolete | Polymeric | 15V | 2 A | 4 A | 40 A | 12 s | 50 mOhms | 125 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
|
SMD150-2POLYSWITCH 1.50A HOLD SMD |
4,077 | - |
|
Datasheet | 2-SMD | PolySwitch®, SMD | Cut Tape (CT) | Obsolete | Polymeric | 15V | 1.5 A | 3 A | 40 A | 5 s | 60 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
|
SMD260-2POLYSWITCH 2.6A RESET FUSE SMD |
4,918 | - |
|
Datasheet | 2920 (7351 Metric) | PolySwitch®, SMD | Cut Tape (CT) | Obsolete | Polymeric | 6V | 2.6 A | 5.2 A | 40 A | 20 s | 25 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
|
SMD300-2POLYSWITCH 3.00A RESET FUSE SMD |
2,357 | - |
|
Datasheet | 2920 (7351 Metric) | PolySwitch®, SMD | Cut Tape (CT) | Obsolete | Polymeric | 6V | 3 A | 6 A | 40 A | 35 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
MF-MSMF250/16-2PTC RESET FUSE 16V 2.5A 1812 |
3,033 | - |
|
Datasheet | 1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 2.5 A | 5 A | 100 A | 5 s | 15 mOhms | 100 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|

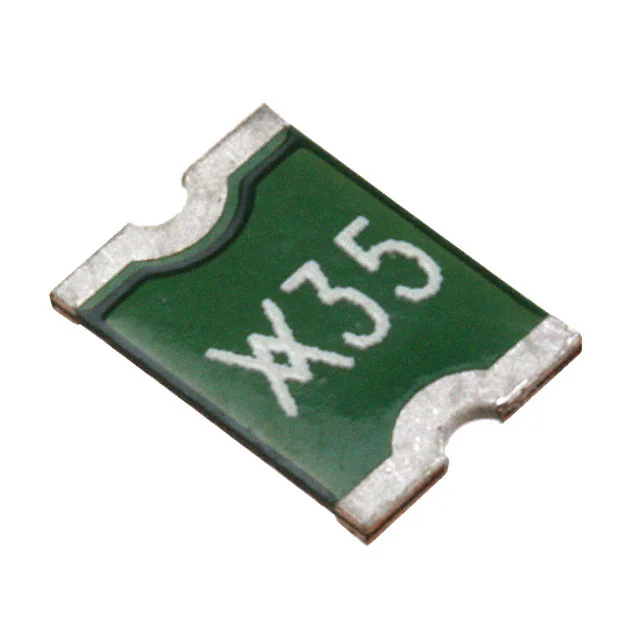

MINISMDC350LR-2PTC RESET FUSE 6V 3.5A 1812 |
6,094 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PolySwitch® | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3.5 A | 8 A | 50 A | - | 6 mOhms | 25 mOhms | - | - | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.017" (0.43mm) | - |
.jpg "NANOSMD175LR-2")
|
NANOSMD175LR-2PTC RESET FUSE 6V 1.75A 1206 |
3,371 | - |
|
Datasheet | 1206 (3216 Metric) | PolySwitch®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.75 A | 5 A | 50 A | 1 s | 8 mOhms | - | - | - | - | - | - | Surface Mount | 0.127" L x 0.063" W (3.22mm x 1.60mm) | - | 0.039" (1.00mm) | - |
