PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

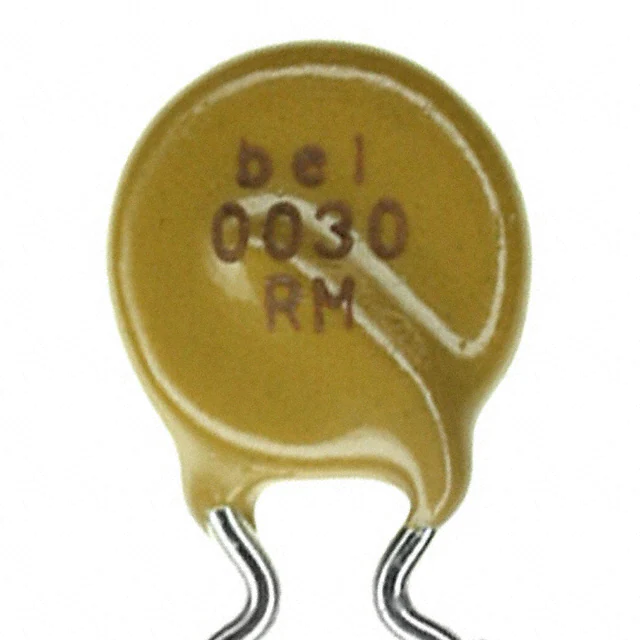

0ZRM0030FF1EPTC RESET FUSE 120V 300MA RADIAL |
18,977 | - |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 300 mA | 600 mA | 3 A | 8.5 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|

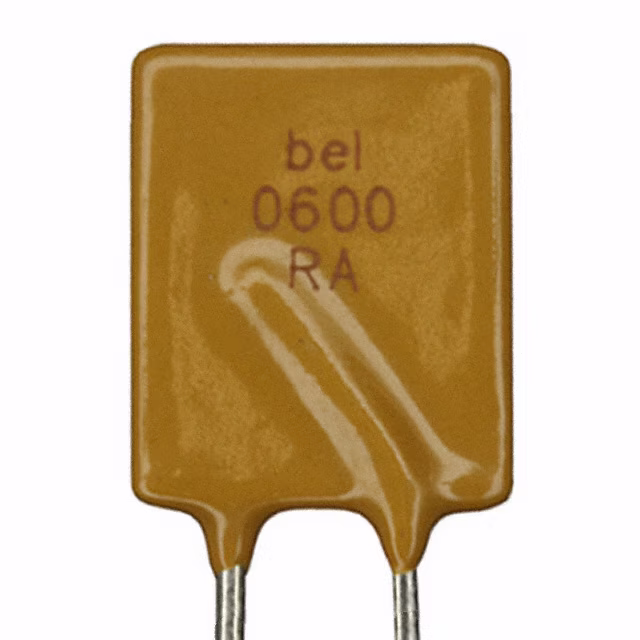

0ZRA0600FF1EPTC RESET FUSE 16V 6A RADIAL |
4,990 | - |
|
Datasheet | Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 5.8 s | 9 mOhms | 33 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.673" (17.10mm) | - | 0.201" (5.10mm) |
|
0ZRN0050FF1EPTC RESET FUSE 30V 500MA RADIAL |
2,970 | - |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 30V | 500 mA | 900 mA | 40 A | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
0ZRP0090FF1EPTC RESET FUSE 60V 900MA RADIAL |
1,460 | - |
|
Datasheet | Radial, Disc | 0ZRP | Bulk | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 2 s | 190 mOhms | 520 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.310" L x 0.142" W (7.87mm x 3.60mm) | 0.550" (13.97mm) | - | 0.201" (5.10mm) |
|
0ZRP0110FF1EPTC RESET FUSE 60V 1.1A RADIAL |
4,796 | - |
|
Datasheet | Radial, Disc | 0ZRP | Bulk | Active | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 3 s | 170 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.299" L x 0.142" W (7.60mm x 3.60mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|
0ZRE0025FF2BPTC RESET FUSE 240V 250MA RADIAL |
2,273 | - |
|
Datasheet | Radial, Disc | 0ZRE | Tape & Reel (TR) | Active | Polymeric | 240V | 250 mA | 560 mA | 6 A | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.685" (17.40mm) | - | 0.201" (5.10mm) |
|
0ZRM0065FF1EPTC RESET FUSE 120V 650MA RADIAL |
1,680 | - |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 650 mA | 1.3 A | 5 A | 5.7 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.150" T (9.70mm x 3.80mm) | 0.587" (14.90mm) | - | 0.201" (5.10mm) |
|
0ZRN0200FF1EPTC RESET FUSE 16V 2A RADIAL |
35,869 | - |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 2 A | 3.8 A | 100 A | 3 s | 45 mOhms | 110 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) | 0.567" (14.40mm) | - | 0.201" (5.10mm) |
|
0ZRM0050FF2CPTC RESET FUSE 120V 500MA RADIAL |
2,490 | - |
|
Datasheet | Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 500 mA | 1 A | 3 A | 6 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.362" Dia x 0.150" T (9.20mm x 3.80mm) | 0.587" (14.90mm) | - | 0.201" (5.10mm) |
|
0ZRP0185FF1APTC RESET FUSE 60V 1.85A RADIAL |
2,062 | - |
|
Datasheet | Radial, Disc | 0ZRP | Bulk | Active | Polymeric | 60V | 1.85 A | 3.7 A | 40 A | 12.6 s | 60 mOhms | 250 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.512" L x 0.142" W (13.00mm x 3.60mm) | 0.740" (18.80mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses FAQ
How can I narrow the current PTC Resettable Fuses selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete PTC Resettable Fuses parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
