PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZTJ0035FF2EPTC RESET FUSE 16V 350MA 1206 |
2,052 | - |
|
Datasheet | 1206 (3216 Metric), Concave | 0ZTJ | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 950 mA | 80 A | 200 ms | 200 mOhms | 1.6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.043" (1.10mm) | - |
|
|
0ZTJ0016FF2EPTC RESET FUSE 30V 160MA 1206 |
1,821 | - |
|
Datasheet | 1206 (3216 Metric), Concave | 0ZTJ | Tape & Reel (TR) | Active | Polymeric | 30V | 160 mA | 800 mA | 80 A | 100 ms | 700 mOhms | 6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.043" (1.10mm) | - |
|
0ZRS0070FF1EPTC RESET FUSE 32V 700MA RADIAL |
2,264 | - |
|
Datasheet | Radial, Disc | 0ZRS | Bulk | Active | Ceramic | 32V | 700 mA | 1.4 A | 100 A | 3.2 s | 230 mOhms | 800 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.272" L x 0.118" W (6.90mm x 3.00mm) | 0.425" (10.80mm) | - | 0.201" (5.10mm) |
|
0ZSA0200FF1EPTC RESET FUSE 30V 2A STRAP |
2,672 | - |
|
Datasheet | Strap | 0ZSA | Bulk | Active | Polymeric | 30V | 2 A | 4.4 A | 100 A | 4 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.880" L x 0.417" W (22.35mm x 10.60mm) | - | 0.043" (1.10mm) | - |
|
0ZRS0100FF1EPTC RESET FUSE 32V 1A RADIAL |
1,550 | - |
|
Datasheet | Radial, Disc | 0ZRS | Bulk | Active | Ceramic | 32V | 1 A | 1.9 A | 100 A | 6.2 s | 150 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.201" (5.10mm) |
|
0ZRN1000FF1APTC RESET FUSE 16V 10A RADIAL |
260 | - |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 10 A | 18.5 A | 100 A | 9 s | 6.2 mOhms | 15 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.402" (10.20mm) |
|

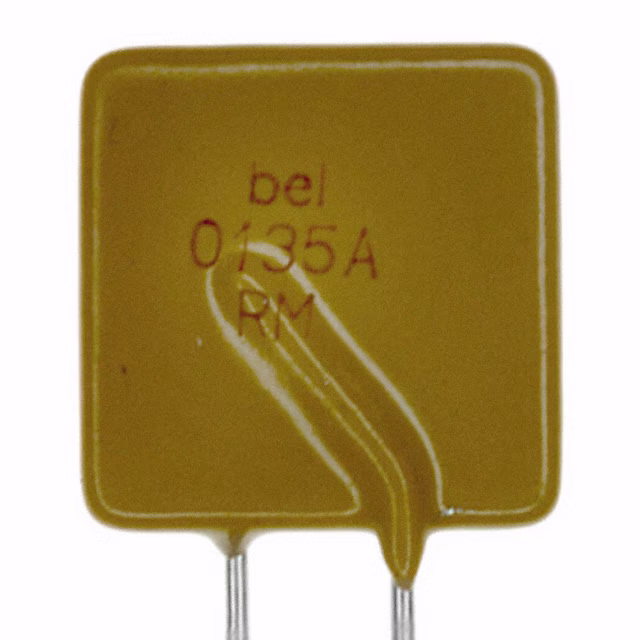

0ZRM0135AF1APTC RESET FUSE 120V 1.35A RADIAL |
1,008 | - |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 1.35 A | 2.7 A | 13.5 A | 20 s | 110 mOhms | 300 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.610" L x 0.161" W (15.50mm x 4.10mm) | 0.811" (20.60mm) | - | 0.201" (5.10mm) |
|
|
0ZCF0700FF2CPTC RESET FUSE 7.0A 12V SMD 2920 |
1,651 | - |
|
Datasheet | 2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 12V | 7 A | 14 A | 100 A | - | - | - | - | - | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.059" (1.50mm) | - |
|
0ZRE0125FF1APTC RESET FUSE 240V 1.25A RADIAL |
500 | - |
|
Datasheet | Radial, Disc | 0ZRE | Bulk | Active | Polymeric | 240V | 1.25 A | 2.5 A | 12.5 A | 23 s | 170 mOhms | 440 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.835" Dia x 0.209" T (21.20mm x 5.30mm) | 1.079" (27.40mm) | - | 0.402" (10.20mm) |
|
0ZRN1500FF1APTC RESET FUSE 16V 15A RADIAL |
737 | - |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 15 A | 28 A | 100 A | 20 s | 3.2 mOhms | 9.2 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.402" (10.20mm) |
PTC Resettable Fuses FAQ
How can I narrow the current PTC Resettable Fuses selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete PTC Resettable Fuses parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
