PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTR016V1500-TRPTC RESET FUSE 16V 15A RADIAL |
700 | - |
|
Datasheet | Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 15 A | 25.5 A | 100 A | 10 s | 2 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.989" L x 0.122" W (25.10mm x 3.10mm) | 1.142" (29.00mm) | - | 0.394" (10.00mm) |
|
RKEF500-2PTC RESET FUSE 60V 5A RADIAL |
116 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RKEF | Tape & Reel (TR) | Active | Polymeric | 60V | 5 A | 10 A | 40 A | 28 s | 12 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.140" L x 0.120" W (29.00mm x 3.00mm) | 1.142" (29.00mm) | - | 0.400" (10.15mm) |
|
1210L005/90WR1210L |
3,573 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PolySwitch® 1210L | Tape & Reel (TR) | Active | Polymeric | 90V | 50 mA | 150 mA | 10 A | 200 ms | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.049" (1.25mm) | - |
|
30R500UMRPTC RESET FUSE 30V 5A RADIAL |
3,097 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 30R | Cut Tape (CT) | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 1.008" (25.60mm) | - | 0.402" (10.20mm) |
|
PTCTL7MR100SBEPTC RESET FUSE 600V 175MA RADIAL |
2,684 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 600V | 175 mA | 400 mA | 1 A | 7 s | - | - | 10 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.512" Dia x 0.217" T (13.00mm x 5.50mm) | 0.709" (18.00mm) | - | 0.197" (5.00mm) |
|

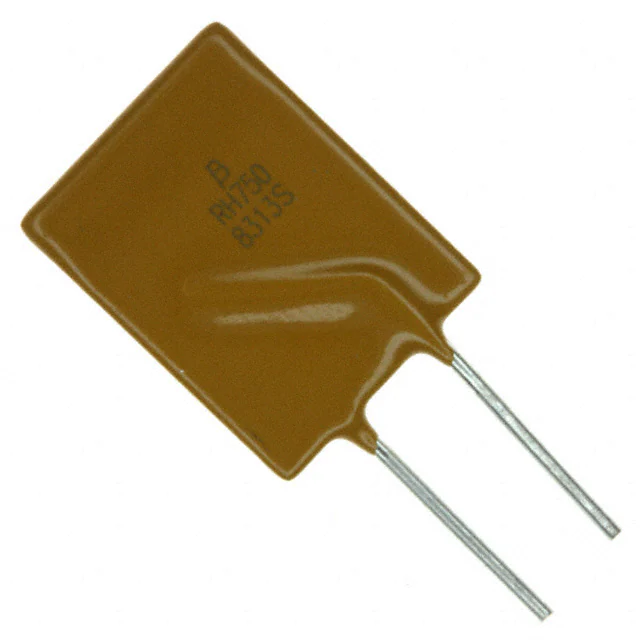

MF-RHT750-0PTC RESET FUSE 16V 7.5A RADIAL |
2,800 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.114" (2.90mm) |
|
|
RKEF500K-2PTC RESET FUSE 60V 5A RADIAL |
6,522 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RKEF | Tape & Reel (TR) | Active | Polymeric | 60V | 5 A | 10 A | 40 A | 28 s | 12 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.140" L x 0.120" W (29.00mm x 3.00mm) | 1.142" (29.00mm) | - | 0.400" (10.15mm) |
|
MF-LR730/20-0PTC RESET FUSE 20V 7.3A STRAP |
3,449 | - |
|
Datasheet | Strap | Multifuse®, MF-LR | Bulk | Active | Polymeric | 20V | 7.3 A | 14.1 A | 100 A | 5 s | 6 mOhms | 15 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.106" L x 0.559" W (28.10mm x 14.20mm) | - | 0.039" (1.00mm) | - |
|
B59870C0160A070PTC RESET FUSE 160V 125MA RADIAL |
1,141 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 160V | 125 mA | 250 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
MF-ASML020/6-2PTC RESET FUSE 6V 200MA 0402 |
10,279 | - |
|
Datasheet | 0402 (1005 Metric), Concave | Multifuse®, MF-ASML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 200 mA | 500 mA | 50 A | 1 s | 100 mOhms | 1.6 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
.jpg "MF-PSML300/12-2")
|
MF-PSML300/12-2PTC RESET FUSE 12V 3A 0805 |
19,725 | - |
|
Datasheet | 0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 12V | 3 A | 6 A | 50 A | 5 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.055" (1.40mm) | - |
.jpg "B59215P1120A062")
|
B59215P1120A062THERMISTOR PTC 25 OHM 25% 2SMD |
8,732 | - |
|
Datasheet | 2-SMD | B59215 | Tape & Reel (TR) | Active | Ceramic | 80V | 100 mA | 210 mA | 1 A | - | 15 Ohms | 25 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
B59965C0120A070PTC RESET FUSE 30V 600MA RADIAL |
1,914 | - |
|
Datasheet | Radial, Disc | B59965 | Bulk | Active | Ceramic | 30V | 600 mA | 1.2 A | 4.3 A | - | - | - | 1.2 Ohms | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
|
MF-PSML200/12-2PTC RESET FUSE 12V 2A 0805 |
1,431 | - |
|
Datasheet | 0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 12V | 2 A | 4 A | 50 A | 2 s | 5 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.055" (1.40mm) | - |
|
B59975C0120A070PTC RESET FUSE 30V 450MA RADIAL |
9,587 | - |
|
Datasheet | Radial, Disc | B59975 | Bulk | Active | Ceramic | 30V | 450 mA | 900 mA | 3 A | - | - | - | 1.8 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
B59885C0120A070PTC RESET FUSE 550V 15MA RADIAL |
3,237 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 550V | 15 mA | 30 mA | 100 mA | - | - | - | 1.2 kOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
MF-ASML050/6-2PTC RESET FUSE 6V 500MA 0402 |
22,663 | - |
|
Datasheet | 0402 (1005 Metric), Concave | Multifuse®, MF-ASML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 50 A | 100 ms | 500 mOhms | 500 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
|
MF-ASML035/6-2PTC RESET FUSE 6V 350MA 0402 |
8,645 | - |
|
Datasheet | 0402 (1005 Metric), Concave | Multifuse®, MF-ASML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 700 mA | 50 A | 100 ms | 50 mOhms | 850 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|

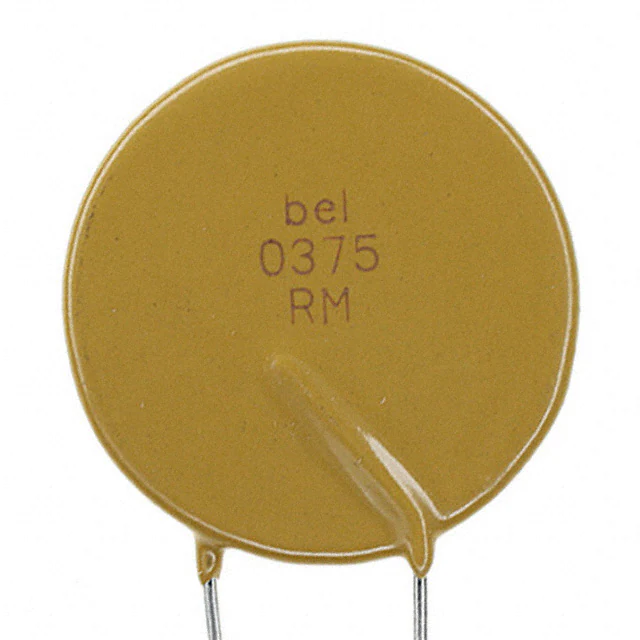

0ZRM0375FF1APTC RESET FUSE 120V 3.75A RADIAL |
4,550 | - |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 3.75 A | 7.5 A | 20 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 1.161" Dia x 0.161" T (29.50mm x 4.10mm) | 1.339" (34.00mm) | - | 0.402" (10.20mm) |
|
0805L400SLWRPTC RESET FUSE 4.0A 6V 0805 |
40,340 | - |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 4 A | 9 A | 50 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.055" (1.40mm) | - |
PTC Resettable Fuses FAQ
What PTC Resettable Fuses components can I source from EGOO?
You can browse available PTC Resettable Fuses product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PTC Resettable Fuses parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
