PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-LSMF500/16X-22920 RESETTABLE SMD PPTC 5.0A/16 |
2,713 | - |
|
Datasheet | 2920 (7351 Metric), Concave | Multifuse®, MF-LSMF | Tape & Reel (TR) | Active | Polymeric | 16V | 5 A | - | - | - | - | - | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | - | - |
|
PTCTL8NR100HBEPTC RESET FUSE 250V 100MA RADIAL |
600 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 250V | 100 mA | 450 mA | 10 A | 40 s | - | - | 10 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.535" Dia x 0.236" T (13.60mm x 6.00mm) | 0.732" (18.60mm) | - | 0.197" (5.00mm) |
|
1206L150SLYRPTC RESET FUSE 6V 1.5A 1206 |
10,983 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3.9 A | 50 A | 300 ms | 10 mOhms | 65 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.028" (0.70mm) | - |
|
0805L200SLTHYRPTC RESET FUSE 6V 2A 0805 |
10,219 | - |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 1 s | 5 mOhms | 45 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
0603L200SL-VYRPTC RESET FUSE 2.0A 6V 0603 |
7,435 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 1 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|
1206L380SLTHYRPTC RESET FUSE 6V 2.82A 1206 |
6,840 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2.82 A | 8 A | 50 A | 5 s | 2 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.028" (0.70mm) | - |
|
|
1206L200SLYRPTC RESET FUSE 6V 2A 1206 |
5,032 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 500 ms | 5 mOhms | 25 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.024" (0.60mm) | - |
|

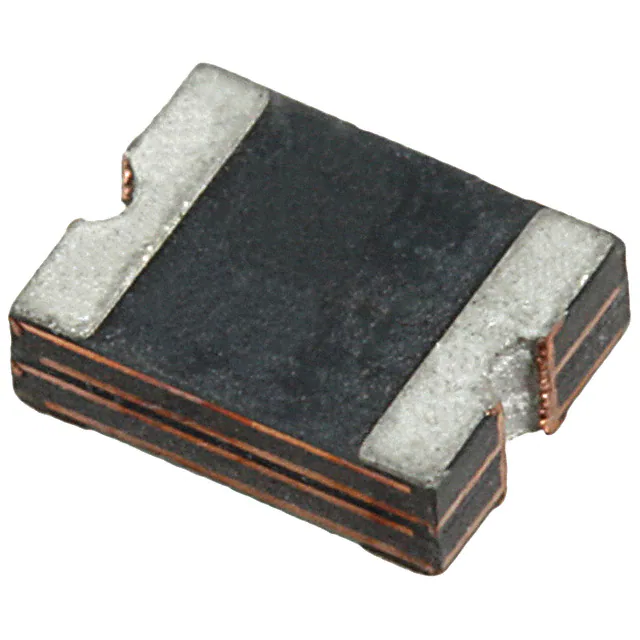

1210L300SLWRPTC RESET FUSE 6V 3A 1210 |
983 | - |
|
Datasheet | 1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 50 A | 2 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
B59115P1080A062PTC RESET FUSE 80V 40MA 3225 |
20,959 | - |
|
Datasheet | 3225 (8063 Metric) | B59115 | Tape & Reel (TR) | Active | Ceramic | 80V | 40 mA | 85 mA | 700 mA | - | - | - | 55 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
|
B59215P1080A062PTC RESET FUSE 80V 65MA 3225 |
20,079 | - |
|
Datasheet | 3225 (8063 Metric) | B59215 | Tape & Reel (TR) | Active | Ceramic | 80V | 65 mA | 135 mA | 1 A | - | - | - | 25 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
B59101P1120A062PTC RESET FUSE 24V 355MA 2SMD |
6,743 | - |
|
Datasheet | 2-SMD | B59101 | Tape & Reel (TR) | Active | Ceramic | 24V | 355 mA | - | 170 mA | - | 7.8 Ohms | 13 Ohms | - | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.398" L x 0.138" W (10.10mm x 3.50mm) | - | 0.150" (3.80mm) | - |
|
|
B59201P1080A062PTC RESET FUSE 30V 165MA 3225 |
1,952 | - |
|
Datasheet | 3225 (8063 Metric) | B59201 | Tape & Reel (TR) | Active | Ceramic | 30V | 165 mA | 340 mA | 1 A | - | - | - | 4.6 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
1812L300MRPTC RESET FUSE 6V 3A 1812 |
3,520 | - |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 5 A | 100 A | 4 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.059" (1.50mm) | - |
|
|
1812L010/60DRPTC RESET FUSE 60V 100MA 1812 |
2,081 | - |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 300 mA | 10 A | 1.5 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|
CL20 250120PTC RESET FUSE 480V 300MA RADIAL |
3,601 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | - | 480V | 300 mA | 600 mA | - | - | - | - | 25 Ohms | - | - | - | - | Through Hole | 0.866" Dia x 0.236" T (22.00mm x 6.00mm) | - | - | 0.307" (7.80mm) |
|
B59940C0120A070PTC RESET FUSE 80V 450MA RADIAL |
580 | - |
|
Datasheet | Radial, Disc | B59940 | Bulk | Active | Ceramic | 80V | 450 mA | 900 mA | 8 A | - | - | - | 2.3 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.866" Dia x 0.138" T (22.00mm x 3.50mm) | 1.004" (25.50mm) | - | 0.197" (5.00mm) |
|
|
0805L150/12SLYRLOW RHO SMD |
2,719 | - |
|
Datasheet | 0805 (2012 Metric), Concave | PolySwitch® Low Rho | Tape & Reel (TR) | Active | Polymeric | 12V | 1.5 A | 3 A | 50 A | 500 ms | 7 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
0603L003/36YR-APTC 36V POLYFUSE SMD 0603 .030A |
2,299 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 36V | 30 mA | 90 mA | 40 A | 1 s | 6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|
2920L330/24MR-APTC RESET FUSE 24V 3.3A 2920 |
2,007 | - |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 24V | 3.3 A | 5.5 A | 40 A | 5 s | 15 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.079" (2.00mm) | - |
|
AHEF1000PTC RESET FUSE 32V 10A RADIAL |
579 | - |
|
Datasheet | Radial, Disc | PolySwitch®, AHEF | Bag | Active | Polymeric | 32V | 10 A | 20 A | 100 A | 15 s | 6 mOhms | 16 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.157" W (23.50mm x 4.00mm) | 1.098" (27.90mm) | - | 0.400" (10.15mm) |
PTC Resettable Fuses FAQ
What PTC Resettable Fuses components can I source from EGOO?
You can browse available PTC Resettable Fuses product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PTC Resettable Fuses parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
