PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,-Concave.jpg "0ZCG0035FF2C")
|
0ZCG0035FF2CPTC RESET FUSE 16V 350MA 1812 |
3,391 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 700 mA | 40 A | 100 ms | 320 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|
SMD0603B010TFPTC RESET FUSE 15V 100MA 0603 |
2,404 | - |
|
Datasheet | 0603 (1608 Metric), Concave | SMD0603 | Tape & Reel (TR) | Active | Polymeric | 15V | 100 mA | 300 mA | 40 A | 1 s | 900 mOhms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (0.98mm) | - |
|
SMD1812B125TF/16PTC RESET FUSE 16V 1.25A 1812 |
5,553 | - |
|
Datasheet | 1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 1.25 A | 2.5 A | 100 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.059" (1.50mm) | - |
|
PTS06039V020PTC RESET FUSE 200MA 9V 0603 |
3,049 | - |
|
Datasheet | 0603 (1608 Metric), Concave | PTS0603 | Tape & Reel (TR) | Active | - | 9V | 200 mA | 500 mA | 4 A | 600 ms | 300 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.035" W (1.60mm x 0.90mm) | - | 0.031" (0.80mm) | - |
|
|
PTS06039V016PTC RESET FUSE 160MA 9V 0603 |
2,037 | - |
|
Datasheet | 0603 (1608 Metric), Concave | PTS0603 | Tape & Reel (TR) | Active | - | 9V | 160 mA | 400 mA | 4 A | 1 s | 400 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.031" W (1.65mm x 0.80mm) | - | 0.031" (0.80mm) | - |
|
|
SMD1812B075TF/24PTC RESET FUSE 24V 750MA 1812 |
1,475 | - |
|
Datasheet | 1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 24V | 750 mA | 1.5 A | 100 A | 200 ms | 100 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
PTS181216V125PTC RESET FUSE 16V 1.25A 1812 |
2,179 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 1.25 A | 2.5 A | 100 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
BK30-185-SIPTC RESET FUSE 30V 1.85A RAD |
17,956 | - |
|
Datasheet | Radial, Disc | BK30 | Bulk | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 35 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.386" L x 0.122" W (9.80mm x 3.10mm) | 0.732" (18.60mm) | - | 0.201" (5.10mm) |
|
PTS181216V050PTC RESET FUSE 16V 500MA 1812 |
7,952 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 500 mA | 1 A | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.027" (0.68mm) | - |
|
|
SMD2920B185TFPTC RESET FUSE 33V 1.85A 2920 |
3,548 | - |
|
Datasheet | 2920 (7351 Metric), Concave | SMD2920 | Tape & Reel (TR) | Active | Polymeric | 33V | 1.85 A | 3.7 A | 40 A | 2.5 s | 30 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
PTS08056V075PTC RESET FUSE 6V 750MA 0805 |
3,343 | - |
|
Datasheet | 0805 (2012 Metric) | PTS0805 | Tape & Reel (TR) | Active | - | 6V | 750 mA | 1.5 A | 100 A | 0.3 s | - | - | - | - | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
0ZRC0010FF1EPTC RESET FUSE 90V 100MA RADIAL |
15,730 | - |
|
Datasheet | Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
0ZCH0110FF2EPTC RESET FUSE 8V 1.1A 1210 |
10,863 | - |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
|
0ZCG0160AF2CPTC RESET FUSE 12V 1.6A 1812 |
7,201 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 12V | 1.6 A | 3.2 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.053" (1.35mm) | - |
|
PFMF.075.2PTC RESET FUSE 13.2V 750MA 1812 |
7,933 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PFMF | Tape & Reel (TR) | Active | Polymeric | 13.2V | 750 mA | 1.5 A | 100 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
0ZRC0017FF1EPTC RESET FUSE 90V 170MA RADIAL |
2,892 | - |
|
Datasheet | Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 170 mA | 340 mA | 40 A | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

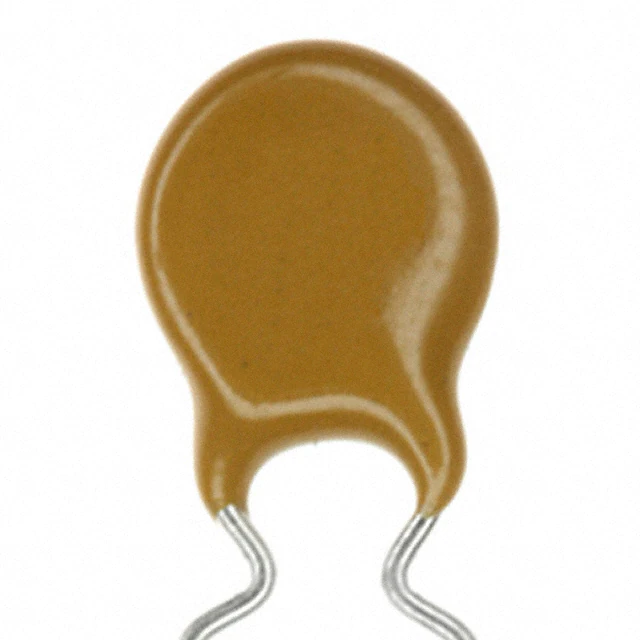

0ZRC0035FF1EPTC RESET FUSE 90V 350MA RADIAL |
1,391 | - |
|
Datasheet | Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 350 mA | 750 mA | 40 A | 10 s | 700 mOhms | 2.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
PTS181224V110PTC RESET FUSE 24V 1.1A 1812 |
6,049 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 24V | 1.1 A | 2.2 A | 20 A | 500 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
|
PTSA181224V150PTC RESET FUSE 1.5A 24V 1812 |
2,619 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 24V | 1.5 A | 3 A | 40 A | 1.5 s | 30 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.067" (1.70mm) | - |
|
RXEF050-APPTC RESET FUSE 72V 500MA RADIAL |
17,705 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) | 0.539" (13.70mm) | - | 0.199" (5.05mm) |
PTC Resettable Fuses FAQ
What PTC Resettable Fuses components can I source from EGOO?
You can browse available PTC Resettable Fuses product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PTC Resettable Fuses parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
