PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RXEF160K-2PTC RESET FUSE 72V 1.6A RADIAL |
6,880 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia x 0.118" T (16.30mm x 3.00mm) | 0.819" (20.80mm) | - | 0.199" (5.05mm) |
|
PTSLR12106V750PTC RESET FUSE 7.5A 6V 1210 |
3,441 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PTSLR1210 | Tape & Reel (TR) | Active | - | 6V | 7.5 A | 15 A | 50 A | 5 s | 1 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.135" L x 0.110" W (3.43mm x 2.80mm) | - | 0.039" (1.00mm) | - |
|
|
PTSLR12106V700PTC RESET FUSE 7A 6V 1210 |
41,403 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PTSLR1210 | Tape & Reel (TR) | Active | - | 6V | 7 A | 14 A | 50 A | 5 s | 1 mOhms | 8 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.135" L x 0.110" W (3.43mm x 2.80mm) | - | 0.039" (1.00mm) | - |
|
MF-RM008/240-2PTC RESET FUSE 240V 80MA RADIAL |
13,467 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RM | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.508" (12.90mm) | - | 0.114" (2.90mm) |
|
MF-S420PTC RESET FUSE 30V 4.2A STRAP |
5,884 | - |
|
Datasheet | Strap | Multifuse®, MF-S | Bulk | Active | Polymeric | 30V | 4.2 A | 7.6 A | 100 A | 6 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.240" L x 0.522" W (31.50mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|
RHEF200-2PTC RESET FUSE 16V 2A RADIAL |
4,960 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Active | Polymeric | 16V | 2 A | 3.8 A | 100 A | 4.3 s | 45 mOhms | 110 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.370" Dia x 0.122" T (9.40mm x 3.10mm) | 0.567" (14.40mm) | - | 0.199" (5.05mm) |
,-Concave.jpg "0ZCN0110FF2C")
|
0ZCN0110FF2CPTC RESET FUSE 15V 1.1A 2016 |
3,898 | - |
|
Datasheet | 2016 (5041 Metric), Concave | 0ZCN | Tape & Reel (TR) | Active | Polymeric | 15V | 1.1 A | 2.2 A | 100 A | 500 ms | 100 mOhms | 400 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.028" (0.70mm) | - |
|
60R010XPRPTC RESET FUSE 60V 100MA RADIAL |
3,270 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
MF-RM008/240-0PTC RESET FUSE 240V 80MA RADIAL |
2,109 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RM | Bulk | Active | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.508" (12.90mm) | - | 0.114" (2.90mm) |
|
MF-R090-0-9PTC RESET FUSE 30V 900MA RADIAL |
1,472 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
MF-RX025/72-0PTC RESET FUSE 72V 250MA RADIAL |
1,326 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 250 mA | 500 mA | 40 A | 2.5 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
MF-RM016/240-2PTC RESET FUSE 240V 160MA RADIAL |
7,804 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RM | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 160 mA | 370 mA | 2 A | 15 s | 2.5 Ohms | 7.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.390" Dia x 0.150" T (9.90mm x 3.80mm) | 0.543" (13.80mm) | - | 0.201" (5.10mm) |
, Concave.jpg "FEMTOSMDC012F-2")
|
FEMTOSMDC012F-2PTC RESET FUSE 9V 120MA 0603 |
4,465 | - |
|
Datasheet | 0603 (1608 Metric), Concave | PolySwitch®, femtoSMDC | Tape & Reel (TR) | Active | Polymeric | 9V | 120 mA | 300 mA | 40 A | 100 ms | 1.1 Ohms | 5.8 Ohms | - | - | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
SMDC075F-2PTC RESET FUSE 33V 750MA 2920 |
4,384 | - |
|
Datasheet | 2920 (7351 Metric), Concave | SMDC | Tape & Reel (TR) | Active | Polymeric | 33V | 750 mA | 1.5 A | 40 A | 300 ms | 100 mOhms | 610 mOhms | - | - | - | - | - | Surface Mount | 0.295" L x 0.201" W (7.50mm x 5.10mm) | - | 0.035" (0.90mm) | - |
|
MF-RM033/240-2PTC RESET FUSE 240V 330MA RADIAL |
4,373 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RM | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 330 mA | 740 mA | 4.5 A | 21 s | 770 mOhms | 2.6 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.150" W (11.40mm x 3.80mm) | 0.787" (20.00mm) | - | 0.114" (2.90mm) |
|
PICOSMDC012S-2PTC RESET FUSE 15V 120MA 0805 |
3,197 | - |
|
Datasheet | 0805 (2012 Metric), Concave | PolySwitch®, picoSMD | Tape & Reel (TR) | Active | Polymeric | 15V | 120 mA | 300 mA | 100 A | 100 ms | 1.5 Ohms | 9 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.027" (0.68mm) | - |
|
ASMD075F-2PTC RESET FUSE 30V 600MA 2SMD |
2,120 | - |
|
Datasheet | 2-SMD | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 30V | 600 mA | 1.48 A | 40 A | 20 s | 290 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.125" (3.18mm) | - |
|
0ZRF0008FF1EPTC RESET FUSE 60V 80MA RADIAL |
1,750 | - |
|
Datasheet | Radial, Disc | 0ZRF | Box | Active | Polymeric | 60V | 80 mA | 240 mA | 3 A | 4 s | 14 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.288" L x 0.181" W (5.80mm x 4.60mm) | 0.378" (9.60mm) | - | 0.197" (5.00mm) |
|
MF-RHT400-2PTC RESET FUSE 16V 4A RADIAL |
13,400 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 7.5 A | 100 A | 5 s | 24 mOhms | 60 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|

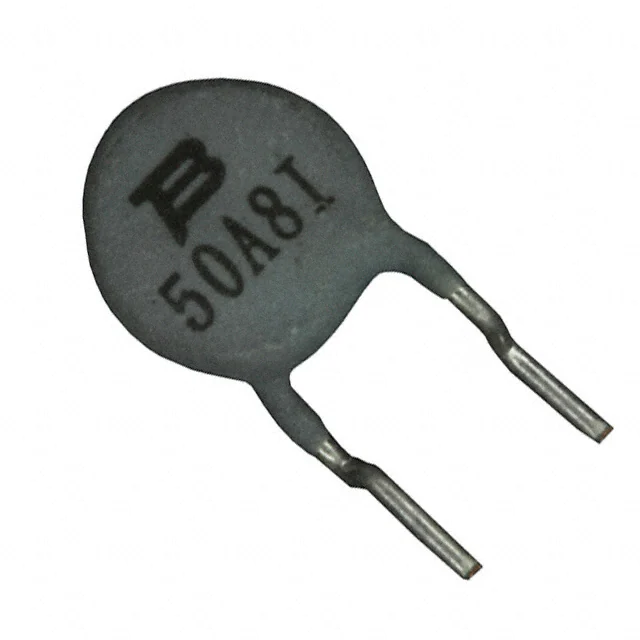

CMF-RL50A-0PTC RESET FUSE 220V 50MA RADIAL |
8,400 | - |
|
Datasheet | Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 50 mA | 100 mA | 3 A | 100 ms | - | - | 50 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.295" L x 0.220" W (7.50mm x 5.60mm) | 0.512" (13.00mm) | - | 0.197" (5.00mm) |
PTC Resettable Fuses FAQ
What PTC Resettable Fuses components can I source from EGOO?
You can browse available PTC Resettable Fuses product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PTC Resettable Fuses parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
