PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASMD150F/33-2PTC RESET FUSE 33V 1.2A 2SMD |
5,354 | - |
|
Datasheet | 2-SMD | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 33V | 1.2 A | 2.88 A | 40 A | 14 s | 68 mOhms | 230 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | 0.118" (3.00mm) | - | - |
|
LVR016S-2PTC RESET FUSE 240V 160MA RADIAL |
5,011 | - |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 160 mA | 370 mA | 2 A | 15 s | 2.5 Ohms | 7.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.390" Dia x 0.150" T (9.90mm x 3.80mm) | 0.492" (12.50mm) | - | 0.200" (5.08mm) |
|
PTSLR12066V110PTC RESET FUSE 6V 1.1A 1206 |
4,715 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 50 A | 300 ms | 15 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.028" (0.70mm) | - |
|
|
PTSLR12066V150PTC RESET FUSE 6V 1.5A 1206 |
4,181 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 50 A | 300 ms | 10 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.028" (0.70mm) | - |
|
0ZTJ0035FF2EPTC RESET FUSE 16V 350MA 1206 |
2,052 | - |
|
Datasheet | 1206 (3216 Metric), Concave | 0ZTJ | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 950 mA | 80 A | 200 ms | 200 mOhms | 1.6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.043" (1.10mm) | - |
|
|
0ZTJ0016FF2EPTC RESET FUSE 30V 160MA 1206 |
1,821 | - |
|
Datasheet | 1206 (3216 Metric), Concave | 0ZTJ | Tape & Reel (TR) | Active | Polymeric | 30V | 160 mA | 800 mA | 80 A | 100 ms | 700 mOhms | 6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.043" (1.10mm) | - |
|
MF-RHT050-2PTC RESET FUSE 30V 500MA RADIAL |
3,827 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 30V | 500 mA | 920 mA | 40 A | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
MF-USML300/6-2PTC RESET FUSE 6V 3A 1210 |
2,498 | - |
|
Datasheet | 1210 (3225 Metric), Concave | Multifuse®, MF-USML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 50 A | 5 s | 3 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
CMF-RL50A-10-0PTC RESET FUSE 220V 50MA RADIAL |
1,270 | - |
|
Datasheet | Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 50 mA | 100 mA | 3 A | 100 ms | - | - | 50 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.295" L x 0.220" W (7.50mm x 5.60mm) | 0.512" (13.00mm) | - | 0.197" (5.00mm) |
|
30R160UPRPTC RESET FUSE 30V 1.6A RADIAL |
3,980 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 30R | Cut Tape (CT) | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
TRF250-180-2PTC RESET FUSE 100V 180MA RADIAL |
2,430 | - |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Active | Polymeric | 100V (250V Int) | 180 mA | 650 mA | 10 A | 2 s | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" Dia x 0.150" T (9.00mm x 3.80mm) | 0.472" (12.00mm) | - | 0.200" (5.08mm) |
|
RUEF500K-2PTC RESET FUSE 30V 5A RADIAL |
2,064 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Tape & Reel (TR) | Active | Polymeric | 30V | 5 A | 10 A | 100 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 1.008" (25.60mm) | - | 0.400" (10.15mm) |
|
|
PTSLR12066V400PTC RESET FUSE 6V 4A 1206 |
1,184 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 4 A | 8 A | 50 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.047" (1.20mm) | - |
|

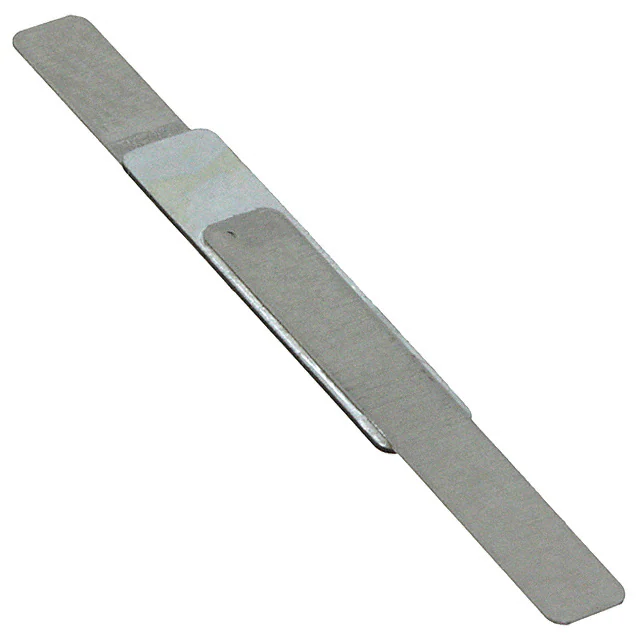

VLR175FPTC RESET FUSE 12V 1.75A STRAP |
1,029 | - |
|
Datasheet | Strap | PolySwitch®, VLR | Bulk | Active | Polymeric | 12V | 1.75 A | 4.2 A | 100 A | 5 s | 17 mOhms | 62 mOhms | - | -40°C ~ 70°C | - | - | - | User Defined | 0.935" L x 0.122" W (23.75mm x 3.10mm) | - | 0.032" (0.80mm) | - |
|
VTP210LFPTC RESET FUSE 16V 2.1A STRAP |
1,015 | - |
|
Datasheet | Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 2.1 A | 4.7 A | 100 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.024" L x 0.209" W (26.00mm x 5.30mm) | - | 0.032" (0.80mm) | - |
|
MF-R700-2PTC RESET FUSE 30V 7A RADIAL |
4,727 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 7 A | 14 A | 40 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.870" L x 0.118" W (22.10mm x 3.00mm) | 1.173" (29.80mm) | - | 0.402" (10.20mm) |
|
MF-RHT070-0PTC RESET FUSE 16V 700MA RADIAL |
3,472 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 700 mA | 1.4 A | 40 A | 4 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.270" L x 0.118" W (6.86mm x 3.00mm) | 0.425" (10.80mm) | - | 0.114" (2.90mm) |
|
MF-RM025/240-0PTC RESET FUSE 240V 250MA RADIAL |
2,933 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RM | Bulk | Active | Polymeric | 240V (265V Int) | 250 mA | 560 mA | 3.5 A | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.394" L x 0.150" W (10.00mm x 3.80mm) | 0.787" (20.00mm) | - | 0.114" (2.90mm) |
|
0ZRS0070FF1EPTC RESET FUSE 32V 700MA RADIAL |
2,264 | - |
|
Datasheet | Radial, Disc | 0ZRS | Bulk | Active | Ceramic | 32V | 700 mA | 1.4 A | 100 A | 3.2 s | 230 mOhms | 800 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.272" L x 0.118" W (6.90mm x 3.00mm) | 0.425" (10.80mm) | - | 0.201" (5.10mm) |
|
600R150-RBZRPTC RESET FUSE 60V 150MA RADIAL |
4,999 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 600R | Cut Tape (CT) | Active | Polymeric | 60V (600V Int) | 150 mA | 300 mA | 3 A | 3 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses FAQ
What PTC Resettable Fuses components can I source from EGOO?
You can browse available PTC Resettable Fuses product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PTC Resettable Fuses parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
