Pulse Transformers
Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QGS6015RSMDL 5G DUAL PORT 4PAIR POE 60W |
3,972 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | 0°C ~ 70°C | - | - |
|
|
QGS2015RSMDL 5G DUAL PORT N/A |
1,080 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | 0°C ~ 70°C | - | - |
|
|
T60404N4646X4604646X460 |
4,486 | - |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
T60404N4646X4614646X461 |
2,188 | - |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
TG1G-E233NVRLTRISO MOD 1G DUAL X-TEMP 48P SMD T |
4,483 | - |
|
Datasheet | - | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.090" L x 0.740" W (27.69mm x 18.80mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
749022015TRANSFORMER LAN 10/100/1000 SMD |
2,851 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.720" L x 0.511" W (18.28mm x 12.98mm) | 0.404" (10.26mm) | - | - | - |
|
HX6096FNLTPULSE XFMR 1CT:1CT TX/RX |
3,807 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
PL1960NLTXFMR TOROID GATE-DR SMT CU PBC |
1,482 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 785µH | 9.7VµS | 1:1 | Surface Mount | 0.265" L x 0.340" W (6.73mm x 8.64mm) | 0.140" (3.56mm) | - | - | - |
|
H1062NLMODULE XFRMR QUAD ETHR LAN40SOIC |
2,991 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
AGS9015RMMDL 2.5G 2 PORT 4PAIR POE 90W |
1,510 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
PL1863NLTPOWER |
1,578 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 1.2mH | 27.2VµS | 2:1:1 | Surface Mount | - | - | - | - | - |
|
|
T60404N4644X4004644X400 |
2,358 | - |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
PL1960TXFMR TOR GATE-DR SMT CUPID PBC |
2,057 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 785µH | 9.7VµS | 1:1 | Surface Mount | 0.265" L x 0.340" W (6.73mm x 8.64mm) | 0.140" (3.56mm) | - | - | - |
|
|
PL3445NLPOWER |
2,210 | - |
|
Datasheet | - | Tube | Active | Gate Drive | 5mH | 75VµS | 1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 125°C | - | - |
|
HU4102NLTMDL,SIN, DUAL 2.5G,1:1,SMT |
3,883 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 180µH | - | - | Surface Mount | 1.100" L x 0.430" W (27.94mm x 10.92mm) | 0.328" (8.33mm) | - | - | - |
|
|
HX1222NLMDL SIN 100D 1:1 4KV SMT T |
3,784 | - |
|
Datasheet | - | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HX1223NLMDL SIN 100D 1:1 4KV SMT TU |
2,270 | - |
|
Datasheet | - | Tube | Active | - | 350µH | - | 1:1 | Surface Mount | 0.570" L x 0.537" W (14.48mm x 13.64mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

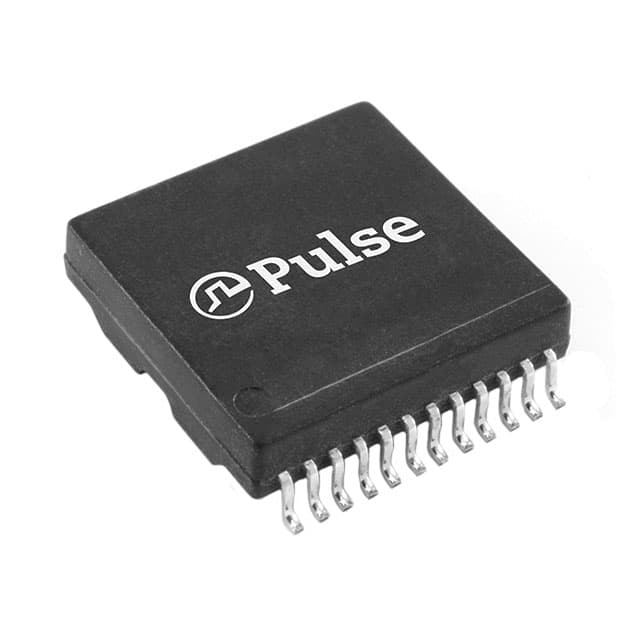

H1270NLTXFRMR MODULE 2PORT 1:1 10/100 |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.515" L x 0.500" W (13.08mm x 12.70mm) | 0.145" (3.69mm) | 0°C ~ 70°C | - | - |
|
HX5224CNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
3,191 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.728" L x 0.604" W (18.50mm x 15.34mm) | 0.385" (9.77mm) | -40°C ~ 85°C | - | - |
|
|
HU4102NLMODULE MAGNETIC DUAL 2.5GB SMT |
1,954 | - |
|
Datasheet | - | Tube | Active | - | - | - | - | Surface Mount | 1.100" L x 0.430" W (27.94mm x 10.92mm) | 0.328" (8.33mm) | 0°C ~ 70°C | - | - |
Pulse Transformers FAQ
What Pulse Transformers components can I source from EGOO?
You can browse available Pulse Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Pulse Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
