Pulse Transformers
Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL2077NLTPOWER |
3,196 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 840nH | 28VµS | 1:1:1 | Surface Mount | - | - | - | - | - |
|
|
PL2077TPOWER |
1,121 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 840nH | 28VµS | 1:1:1 | Surface Mount | - | - | - | - | - |
|
|
PL1863TPOWER |
3,016 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 1.2mH | 27.2VµS | 2:1:1 | Surface Mount | - | - | - | - | - |
|
|
100B-1003FTEXTMP XFMR 100BT SMG COM NPB |
2,720 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.265" W (12.70mm x 6.73mm) | 0.245" (6.22mm) | - | - | - |
|
|
HM6098NLTMDL SIN 1GPP 1:1 SMT TR |
3,549 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 120µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 105°C | - | - |
|
|
X-1568TSMT CM1 3MH 2.5A T&R COM PBC |
4,588 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 3µH | - | - | Surface Mount | 0.669" L x 0.390" W (17.00mm x 9.90mm) | 0.390" (9.90mm) | - | - | - |
|
|
TG110-RPE15NVLFISO MOD 10/100 QUAD POE 0.35A 48 |
3,293 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.090" L x 0.740" W (27.69mm x 18.80mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
|
TG1G-E234NVLFISO MOD 1G DUAL X-TEMP 48P SMD |
1,703 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.090" L x 0.740" W (27.69mm x 18.80mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
|
PL3057POWER |
1,637 | - |
|
Datasheet | - | Tube | Active | Gate Drive | 1.2mH | 27.2VµS | 2.5:1:1 | Surface Mount | - | - | -40°C ~ 130°C | - | - |
|
|
PL3057NLPOWER |
2,076 | - |
|
Datasheet | - | Tube | Active | Gate Drive | 1.2mH | 27.2VµS | 2.5:1:1 | Surface Mount | - | - | -40°C ~ 130°C | - | - |
|
|
IPH-21-0001IL1 PULSE TRANSFORMER THT SPEZ |
4,471 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|
|
ISRF-0235-D101ISRF PULSE TRANSFORMER SMD 0.1A |
3,126 | - |
|
Datasheet | IS | Tape & Reel (TR) | Active | SCR and Triac Trigger (Encapsulated) | 1.1mH | 150VµS | 1:1:1 | Surface Mount | 0.512" L x 0.598" W (13.00mm x 15.20mm) | 0.433" (11.00mm) | -25°C ~ 100°C | - | - |
|
|
T60404N4646X1604646X160 |
1,218 | - |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
MTBAUGDT250252TRANSFORMER, GATE DRIVE 5MM, 250 |
3,712 | - |
|
Datasheet | MTBAUGDT | Tape & Reel (TR) | Active | Gate Drive | 300µH | 23.8VµS | 2.5:1:1 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|
|
TG1G-E234NVLFTRISO MOD 1G DUAL X-TEMP 48P SMD T |
1,905 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.090" L x 0.740" W (27.69mm x 18.80mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
|
TG110-RPE15NVLFTRISO MOD 10/100 QUAD POE 0.35A |
1,391 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.090" L x 0.740" W (27.69mm x 18.80mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
|
T60404N4646X1614646X161 |
4,239 | - |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
H5089NLTTRANSFORMER MODULE GIGABIT 2PORT |
4,025 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|

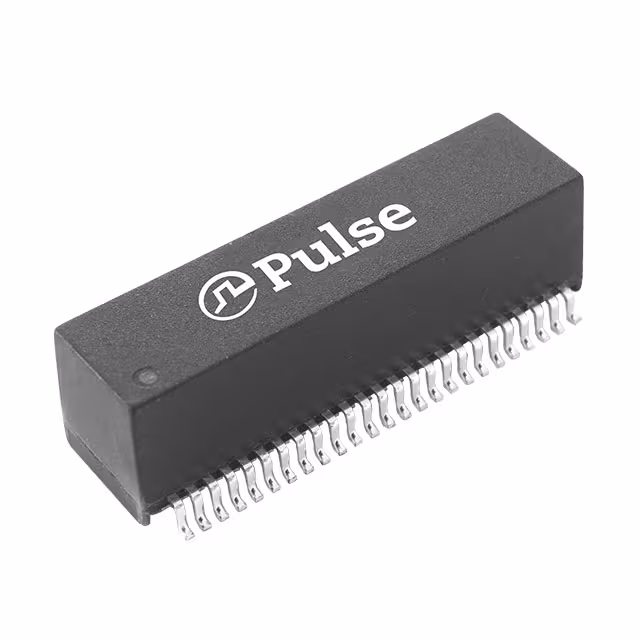

HU4103NLTMDL,SIN, DUAL 2.5G POE,1:1,SMT |
2,407 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 150µH | - | - | Surface Mount | 1.100" L x 0.430" W (27.94mm x 10.92mm) | 0.328" (8.33mm) | 0°C ~ 70°C | - | - |
|

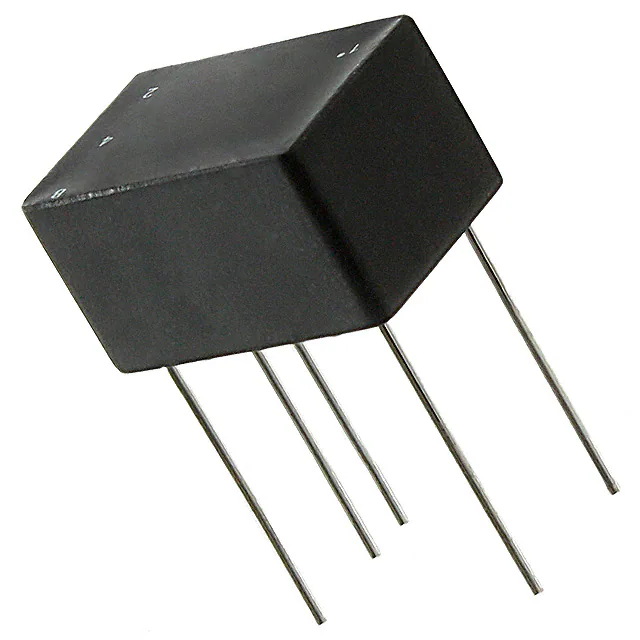

PE-5156XNLTRANSFORMER 1:1 700VRMS |
2,960 | - |
|
Datasheet | - | Tube | Active | - | 1.2mH | 77VµS | 1:1 | Through Hole | 0.650" L x 0.443" W (16.51mm x 11.25mm) | 0.400" (10.16mm) | 0°C ~ 70°C | - | - |
