Pulse Transformers
Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM13126PEL10/100 BASE TX LAN POE +85 C, IE |
4,572 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | Automotive | AEC-Q200 |
|

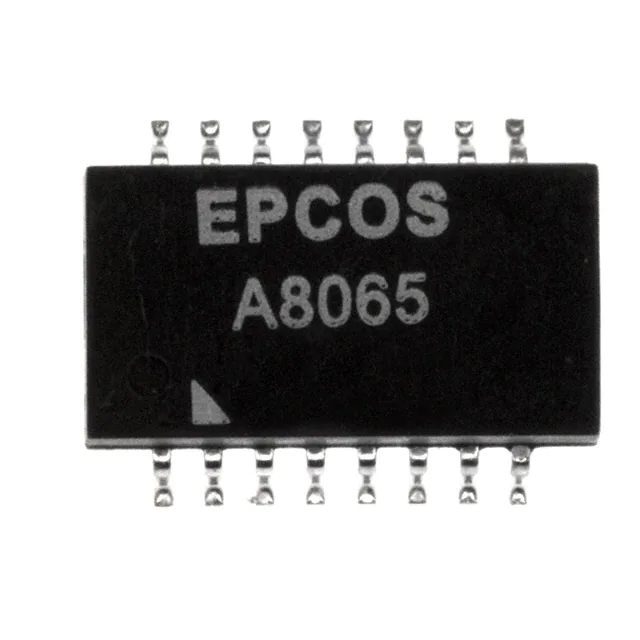

B78476A8065A003PULSE XFMR 1CT:1CT 350UH |
53,346 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.220" (5.60mm) | -40°C ~ 85°C | - | - |
|

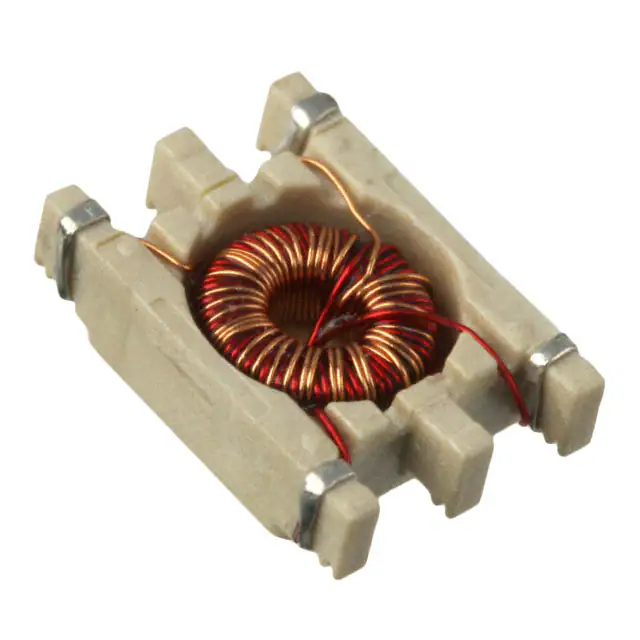

PA2001NLTPULSE XFMR 1:1 403UH |
1,671 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 403µH | 12VµS | 1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.098" (2.49mm) | -40°C ~ 130°C | - | - |
|
S558-5500-25-FMODULE XFRMR LAN 10/100 POE SMD |
1,700 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

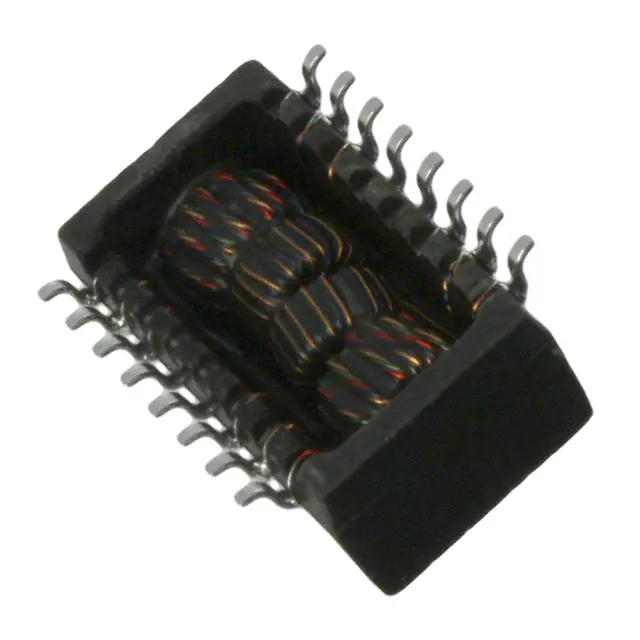

S558-5999-U7-FMODULE XFRMR LAN 10/100B-TX SMD |
25,037 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
S558-5999-T5-FMODULE XFRMR LAN 10/100B-TX SMD |
13,524 |
1+：$2.05000 10+：$1.85300 25+：$1.78040 50+：$1.72660 100+：$1.67420 250+：$1.60680 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
S558-5999-T7-FMODULE XFRMR LAN 10/100B-TX SMD |
3,361 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
PH9384.034NLTXFMR GATE-DR 3T:4CT SMT NPB |
1,065 | - |
|
Datasheet | PH9384 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) | - | - | - |
|
|
PE-68386NLTPULSE XFMR 1:1 785UH |
2,036 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 785µH | 9.7VµS | 1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.098" (2.49mm) | -40°C ~ 130°C | - | - |
|
ALANL100X1-DE12DTXFRMR LAN 1CT:1CT 350UH |
2,390 | - |
|
Datasheet | ALANL100X1-D | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.16mm) | -40°C ~ 85°C | - | - |
|

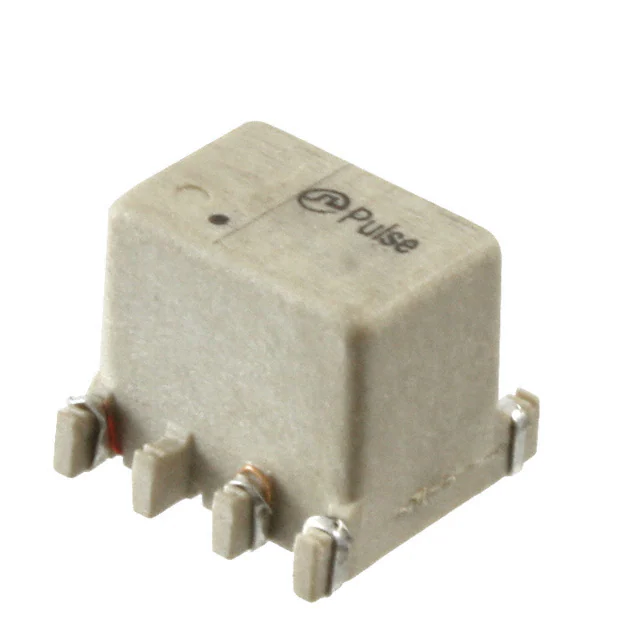

PA2002NLTPULSE XFMR 1:1:1 1.8MH |
5,897 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 1.8mH | 60VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
|
PE-68386NLPULSE XFMR 1:1 785UH |
1,415 | - |
|
Datasheet | - | Tube | Active | - | 785µH | 9.7VµS | 1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.098" (2.49mm) | -40°C ~ 130°C | - | - |
|

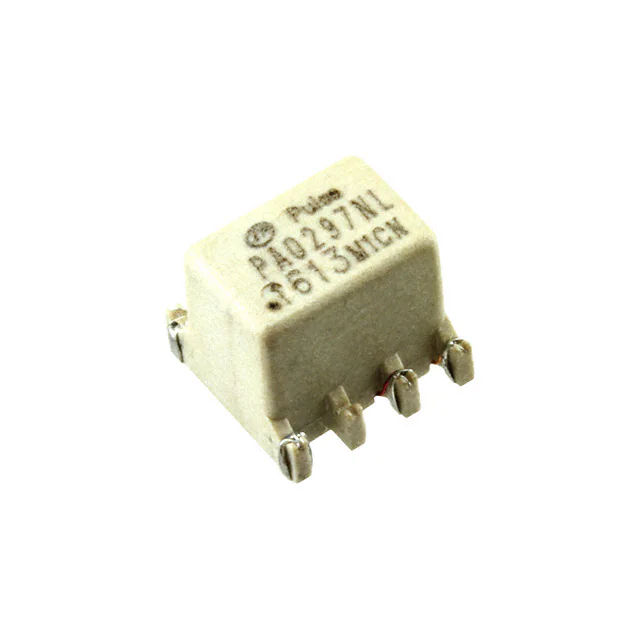

PA0297NLTPULSE XFMR 2:1:1 1200UH |
680 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 1.2mH | 27.2VµS | 2:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
SM51589PELPULSE XFMR 1CT:1CT 350UH |
7,643 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
IL-11-0002IL1 PULSE TRANSFORMER THT 0.25A |
321 | - |
|
Datasheet | IL | Bulk | Active | Isolation and Data Interface (Encapsulated) | 2.5mH | - | 1:1 | Through Hole | 0.689" L x 0.728" W (17.50mm x 18.50mm) | 0.453" (11.50mm) | -25°C ~ 70°C | - | - |
|
SM51625ELXFRMR LAN POE+ 1.2A 24SMD |
1,214 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN | 10µH | - | 1:1 | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.246" (6.25mm) | -40°C ~ 85°C | - | - |
|
|
IL-10-0001IL5 PULSE TRANSFORMER THT 0.1A |
4,182 | - |
|
Datasheet | IL | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 2.5mH | 250VµS | 1:1:1 | Through Hole | 0.689" L x 0.728" W (17.50mm x 18.50mm) | 0.453" (11.50mm) | -25°C ~ 70°C | - | - |
|
749013011ATRANS WE-LAN 10/100 POE SMD |
817 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.250" (6.35mm) | -40°C ~ 105°C | - | - |
|
749020111AWE-LAN 10/100/1000 BASE-T SMT TR |
4,729 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1 | - | 0.650" L x 0.354" W (16.50mm x 9.00mm) | 0.093" (2.35mm) | 0°C ~ 70°C | - | - |
|
|
7490100111ATRANSFORMER LAN 10/100 SMD |
3,206 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.250" (6.35mm) | -40°C ~ 105°C | - | - |
Pulse Transformers FAQ
What Pulse Transformers components can I source from EGOO?
You can browse available Pulse Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Pulse Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
