Pulse Transformers
Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T60403D4097X055GATE DRIVE TRANSFORMER PTH 1:1:1 |
8,239 |
1+：$5.01000 10+：$4.47400 25+：$4.27520 50+：$4.13040 100+：$3.99010 300+：$3.77687 500+：$3.68144 1000+：$3.55565 |
|
Datasheet | - | Box | Active | - | 6.5mH | 200VµS | 1:1:1 | Through Hole | 0.654" L x 0.583" W (16.60mm x 14.80mm) | 0.532" (13.50mm) | -40°C ~ 85°C | - | - |
|
HCTSM80101AAL-EXFMR 3.3-5V/3.3-15V,350MA PK TR |
1,733 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Active | - | 250µH | 11.0VµS | 1:1 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
7490140117CXFMR LAN 10/100 BASE-T 1:1 350UH |
520 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.224" (5.70mm) | -40°C ~ 105°C | - | - |
|
749020023AXFRMR LAN 1000 BASE-T 1:1 350UH |
325 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.167" (4.25mm) | -40°C ~ 85°C | - | - |
|

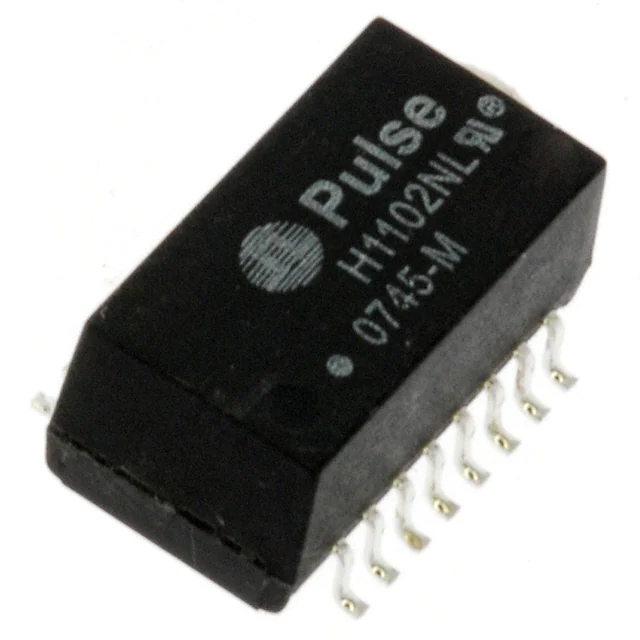

H1102NLMODULE XFRMR SGL ETHR LAN 16SOIC |
8,676 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
HM2113ZNLTXFMR CMC MODULE AECQ BATT MNGT |
1,937 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.354" L x 0.478" W (9.00mm x 12.15mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|
H1102FNLTPULSE XFMR LAN 350UH SMD |
9,076 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|

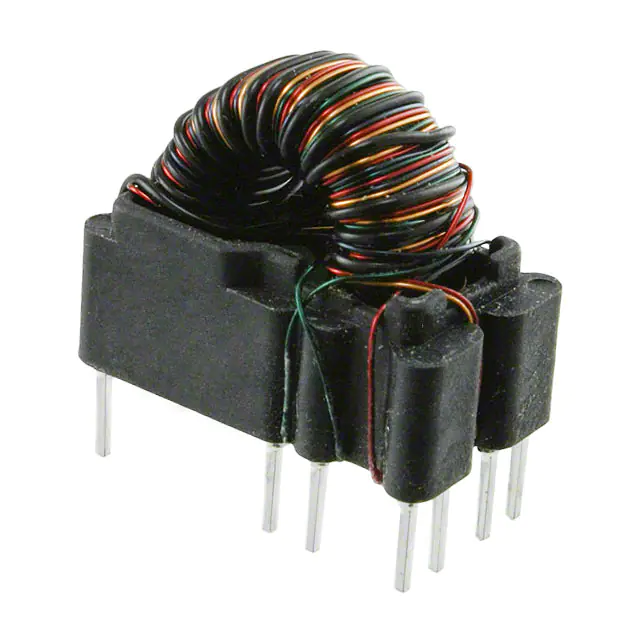

P0585NLPULSE XFMR 1:1:1 450UH |
800 | - |
|
Datasheet | - | Tube | Active | - | 450µH | 95VµS | 1:1:1:1:1 | Through Hole | 0.810" L x 0.480" W (20.57mm x 12.19mm) | 0.750" (19.05mm) | -40°C ~ 125°C | - | - |
|
|
H1102FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
730 | - |
|
Datasheet | - | Bulk | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
H2019FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,193 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
AGST5009BMDL SMD 2.5G SINGLE PORT N/A |
2,943 | - |
|
Datasheet | AGST5009xx | Tape & Reel (TR) | Active | LAN 2.5G Base-T | 180µH | - | - | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.157" (4.00mm) | 0°C ~ 70°C | - | - |
|
|
HX2019FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
1,389 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|

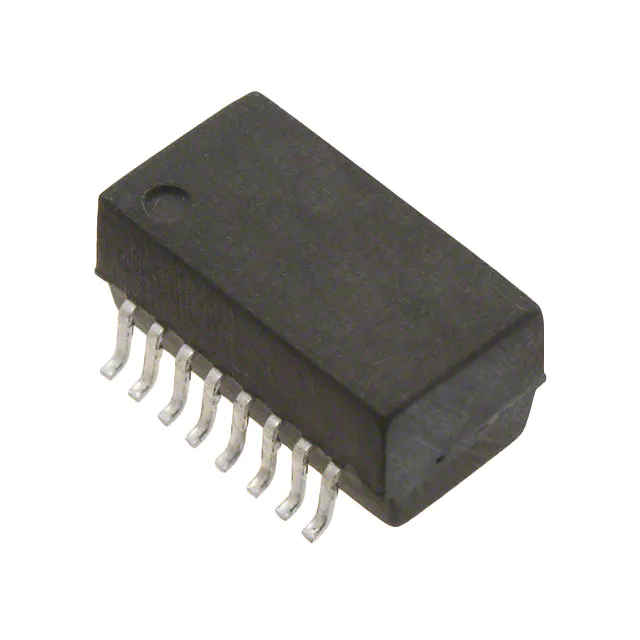

T1094NLTXFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH |
111 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

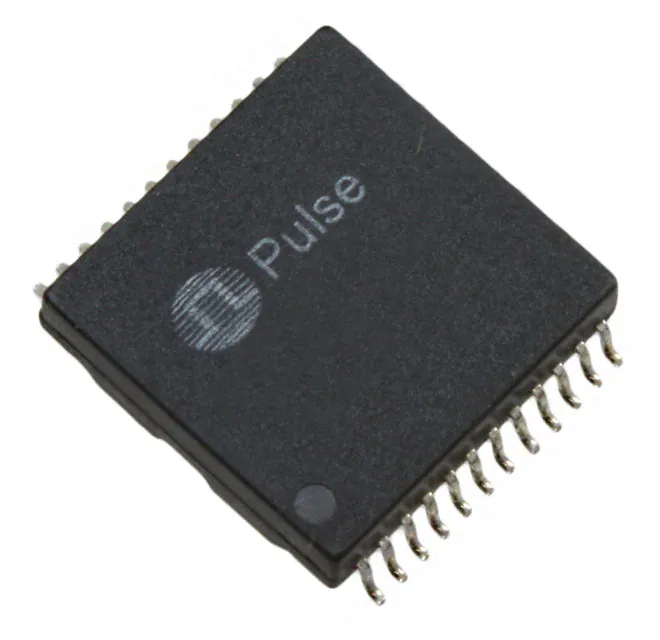

HX1294NLMODULE XFRMR LAN 10/100 SMD |
2,773 |
1+：$7.58000 10+：$6.84200 35+：$6.46486 70+：$6.26400 105+：$6.14895 280+：$5.87811 525+：$5.71000 1015+：$5.53824 |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 325µH | - | 1CT:1CT | Surface Mount | 0.538" L x 0.599" W (13.67mm x 15.21mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
|
PA1736NLTPULSE XFMR 20.5UH |
567 |
1+：$5.40000 10+：$4.88100 25+：$4.68480 50+：$4.54040 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 20.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|

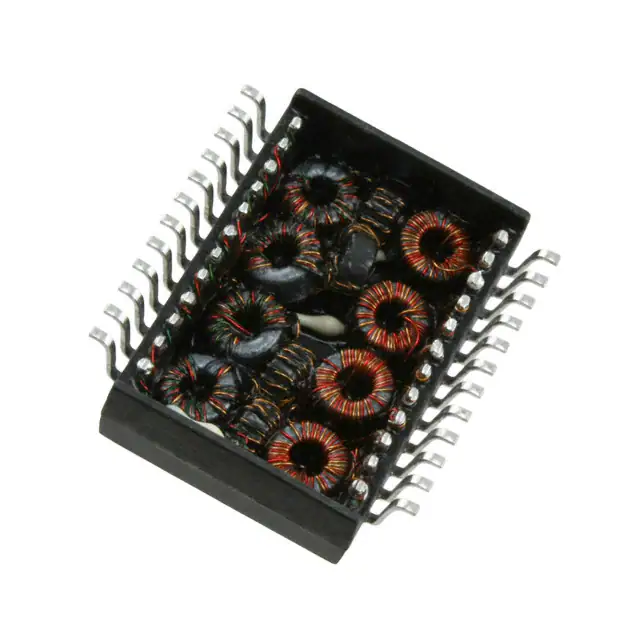

H6062NLTXFRMR MODUL GIGABT 1PORT POE 1:1 |
927 | - |
|
Datasheet | Star Magnetics™ | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|
H5084FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
84,975 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.600" L x 0.385" W (15.24mm x 9.78mm) | 0.163" (4.14mm) | 0°C ~ 70°C | - | - |
|
HX1098NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
6,159 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.158" (4.01mm) | -40°C ~ 85°C | - | - |
|
H5084NLTMODULE MAGNETIC 1PORT 1000BASE-T |
376 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.163" (4.14mm) | 0°C ~ 70°C | - | - |
|
HX1188NLMODULE XFRMR SGL ETHR LAN 16SOIC |
2,490 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
