Pulse Transformers

Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification

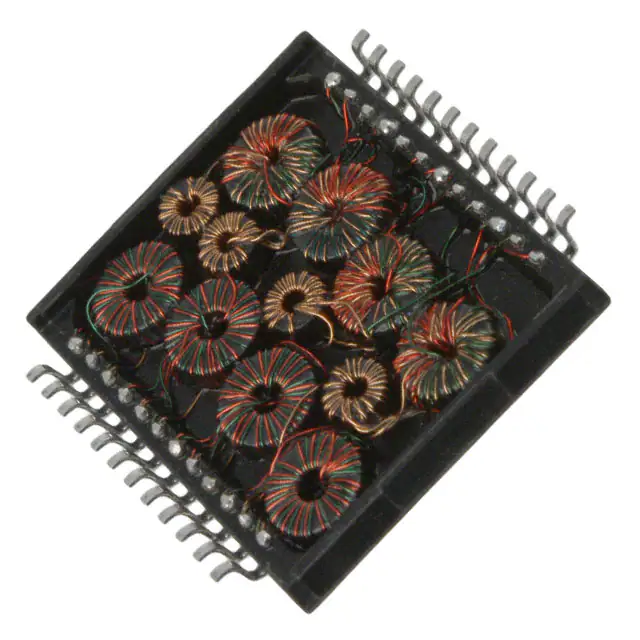

H5019NLT TRANSFORMER MODULE GIGABIT 1PORT Pulse Electronics	4,604	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.780" L x 0.655" W (19.81mm x 16.64mm)	0.100" (2.54mm)	0°C ~ 70°C	-	-
HX6062NL PULSE XFMR 1CT:1CT TX/RX Pulse Electronics	123	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100/1000 Base-T	325µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.689" L x 0.480" W (17.50mm x 12.20mm)	0.225" (5.72mm)	-40°C ~ 85°C	-	-
HX1148NL MODULE TRANSFMR SNGL LAN 16P SMD Pulse Electronics	523	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1 Transmitter, 1CT:1CT Receiver	Surface Mount	1.000" L x 0.390" W (25.40mm x 9.91mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-

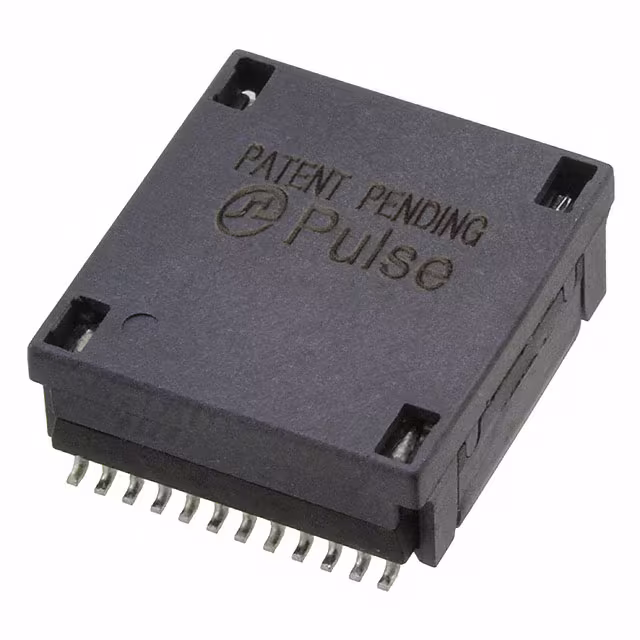

H7008FNLT TRANSFORMER MODULE 10GBASE-T Pulse Electronics	3,021	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10G Base-T	200µH	-	1:1	Surface Mount	0.591" L x 0.539" W (15.00mm x 13.70mm)	0.230" (5.85mm)	0°C ~ 70°C	-	-

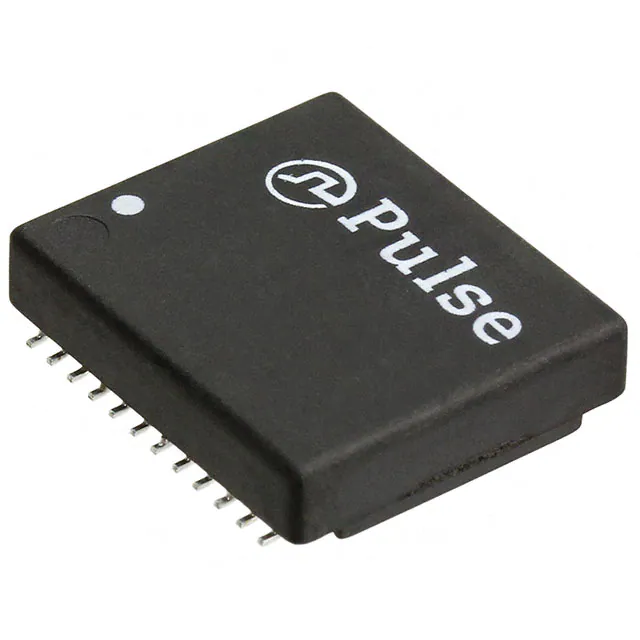

H5015FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	1,782	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.695" L x 0.596" W (17.66mm x 15.14mm)	0.180" (4.57mm)	0°C ~ 70°C	-	-
HD8005FNLT TRANSFORMER HDBASE-T 57W Pulse Electronics	900	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	HDBase-T	100µH	-	1:1	Surface Mount	0.539" L x 0.591" W (13.70mm x 15.00mm)	0.230" (5.85mm)	0°C ~ 70°C	-	-
T1142NL XFRMR T1/E1/CEPT/ISDN-PRI 1:2.4 Pulse Electronics	362	-	RFQ	Datasheet	-	Tube	Active	T1/E1 (Quad)	1mH, 1mH	-	1:2.4 Transmitter, 1:1 Receiver	Surface Mount	1.125" L x 0.485" W (28.58mm x 12.32mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-
HX1332CNL XFRMR MODULE 100B-TX 16 PIN SMT Pulse Electronics	208	-	RFQ	Datasheet	HX1332CNL	Tube	Active	LAN 100 Base-TX	350µH	-	1:1	Surface Mount	1.000" L x 0.677" W (25.40mm x 17.20mm)	0.406" (10.30mm)	-40°C ~ 85°C	-	-
R5032NL XFRMR ETHERNET MOD IND 1000B-T iNRCORE, LLC	537	-	RFQ	Datasheet	-	Tube	Active	LAN 1000 Base-T	350µH	-	-	Surface Mount	0.650" L x 0.370" W (16.51mm x 9.41mm)	0.088" (2.24mm)	-40°C ~ 85°C	-	-
HD8006FNL TRANSFORMER HDBASET 140W Pulse Electronics	260	-	RFQ	Datasheet	-	Tube	Active	HDBase-T	120µH	-	1:1	Surface Mount	0.698" L x 0.625" W (17.73mm x 15.88mm)	0.320" (8.12mm)	0°C ~ 70°C	-	-
H5079NLT MODULE MINI-MAG 1PORT 1000BASE-T Pulse Electronics	2,582	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.785" L x 0.551" W (19.94mm x 14.00mm)	0.100" (2.54mm)	0°C ~ 70°C	-	-
749052051 XFRMR LAN 10G BASE-T 1:1 120UH Würth Elektronik	164	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10G Base-T	120µH	-	1:1	Surface Mount	0.720" L x 0.579" W (18.29mm x 14.70mm)	0.346" (8.80mm)	-40°C ~ 85°C	-	-
H5004NL MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics	1,094	-	RFQ	Datasheet	-	Tube	Active	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	0°C ~ 70°C	-	-
HM1331NL MDL,SIN,100D,1:1,SMT Pulse Electronics	245	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.600" W (12.70mm x 15.24mm)	0.300" (7.62mm)	-40°C ~ 85°C	-	-
H1664NL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	143	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.110" L x 0.480" W (28.19mm x 12.19mm)	0.225" (5.72mm)	0°C ~ 70°C	-	-
HX5G1010NL TRANSF MODULE 5G 4 CH 60W POE Pulse Electronics	290	-	RFQ	Datasheet	-	Tube	Active	General Purpose	120µH	-	1CT:1CT	Surface Mount	0.650" L x 0.360" W (16.51mm x 9.14mm)	0.082" (2.08mm)	-	-	-
G500 TRANSFORMER 5.0MH 1:1:1 PULSE Tamura	2,518	-	RFQ	Datasheet	G5	Tube	Active	Isolation and Data Interface (Encapsulated)	5mH	25VµS	1:1:1 Ter	Through Hole	0.350" L x 0.500" W (8.90mm x 12.70mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
IT239 XFRMR PULSE 1:1 SGL 3MH .25A Schaffner EMC Inc.	420	-	RFQ	Datasheet	IT	Tray	Active	Data/Voice Coupling	3mH	-	1:1	Through Hole	1.063" L x 0.886" W (27.00mm x 22.50mm)	-	-25°C ~ 70°C	-	-
HX5026NL XFRMR MODULE 1000B-T 1 CH SMT Pulse Electronics	503	-	RFQ	Datasheet	-	Tube	Active	General Purpose	350µH	-	1:1	Surface Mount	0.715" L x 0.480" W (18.16mm x 12.19mm)	0.260" (6.60mm)	-	-	-
7490220115 XFRMR LAN 1CT:1CT 350UH Würth Elektronik	400	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.720" L x 0.480" W (18.30mm x 12.20mm)	0.250" (6.35mm)	-40°C ~ 85°C	-	-

Pulse Transformers FAQ

What Pulse Transformers components can I source from EGOO?

You can browse available Pulse Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.

Can EGOO help with hard-to-source or obsolete Pulse Transformers parts?

Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.

Does EGOO support BOM and small-batch sourcing?

Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.

How do I request pricing and availability?

Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
