| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESMIT-4164XFMR MODEM SMD |
161 | - |
|
Datasheet | CBM | Tape & Reel (TR) | Active | Data/Voice Coupling | 30µH | - | 1:1.67 | Surface Mount | 0.179" L x 0.280" W (4.55mm x 7.10mm) | 0.078" (1.98mm) | - | - | - |
|
PM2180.011NLTXFMR GATE-DR 1CT:1CT SM NPB |
2,533 | - |
|
Datasheet | PM2180.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 1CT:1CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
PH9085.021NLTIND PWR 3.0X3.0X1.2 1.16MH SMT |
1,525 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | - | - | - |
|
HM2106NLTMDL, SIN, XFMR, 1:1, 4.3KV, SMT, |
610 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 135µH | - | 1:1 | Surface Mount | 0.335" L x 0.524" W (8.50mm x 13.31mm) | 0.226" (5.75mm) | -40°C ~ 125°C | - | - |
|
VMT40DR-201S2P4PULSE TRANSFORMERS FOR BMS, VMT4 |
1,801 | - |
|
Datasheet | VMT | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.425" L x 0.335" W (10.80mm x 8.50mm) | 0.157" (4.00mm) | -40°C ~ 125°C | - | - |
|
PA1277NLXFMR FLYBACK EP10 SMT |
561 | - |
|
Datasheet | PA1277NL | Tray | Active | Isolation and Data Interface (Encapsulated) | 20.4µH | - | - | Surface Mount | 0.600" L x 0.515" W (15.24mm x 13.08mm) | 0.451" (11.45mm) | - | - | - |
|
|
PM2180.012NLTXFMR GATE-DR 1CT:2CT SM NPB |
2,698 | - |
|
Datasheet | PM2180.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 1CT:2CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
S558-5999-J1-FMODULE XFRMR LAN 10/100B-TX SMD |
7,019 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
S558-5999-W2-FMODULE XFRMR LAN 10/100B-TX SMD |
4,143 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
B78476A8247A003PULSE XFMR 1CT:1CT 350UH |
621 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.272" W (12.70mm x 6.90mm) | 0.230" (5.85mm) | -40°C ~ 85°C | - | - |
|
PA2777NLPULSE XFMR 1:1 335.2UH |
872 | - |
|
Datasheet | - | Tray | Active | - | 335.2µH | 9.3VµS | 1:1 | Surface Mount | 0.291" L x 0.248" W (7.40mm x 6.30mm) | 0.232" (5.90mm) | -40°C ~ 130°C | - | - |
|
ALANL100X1-EF10ET10/100BASE-TX LAN XFMR |
1,160 | - |
|
Datasheet | ALANL100X1-E | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.15mm) | 0°C ~ 70°C | - | - |
|

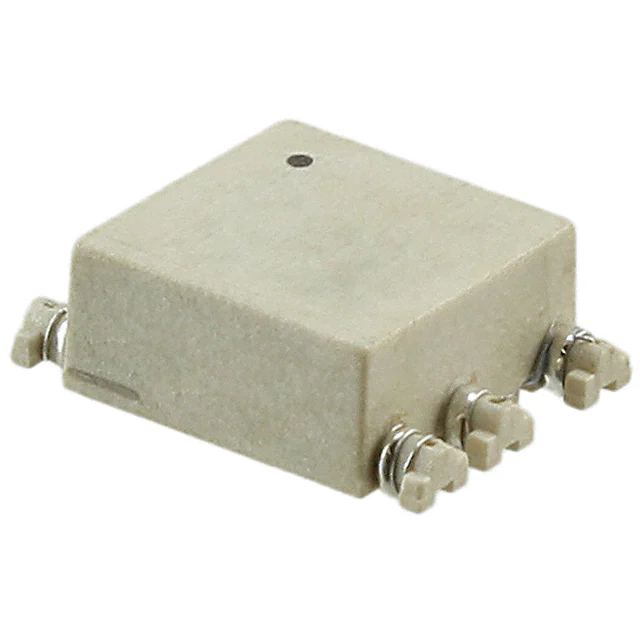

PA2005NLTPULSE XFMR 1:1:1 840UH |
5,058 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 840µH | 26VµS | 1:1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.160" (4.06mm) | -40°C ~ 130°C | - | - |
|
PH9572.233NLTGDT, FUNCTIONAL, EP7, SMT |
14,367 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 1.8mH | 56.5VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
|
PH9572.211NLTGDT, FUNCTIONAL, EP7, SMT |
13,154 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 4mH | 84.7VµS | 2:1:1 | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
74941301WE-BMS SMT TRANSFORMER -40C TO + |
620 | - |
|
Datasheet | WE-BMS | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.350" L x 0.299" W (8.90mm x 7.60mm) | 0.217" (5.50mm) | -40°C ~ 125°C | - | - |
|
PA3493NLTPULSE XFMR 1.25:1 656UH |
3,586 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 656µH | 23VµS | 1.25:1 | Surface Mount | 0.430" L x 0.380" W (10.92mm x 9.65mm) | 0.105" (2.67mm) | -40°C ~ 130°C | - | - |
|
|
PA2649NLTPULSE XFMR 100.5UH |
1,360 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 100.5µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PE-65745NLTXFRMR LAN ISOL 1CT:1.414CT 10B-T |
2,759 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 140µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
0553-0013-BC-FMODULE XFRMR LAN T1/E1 PCB |
841 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
