Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750510436DIGITAL TRANSFORMER ; EE13/7/4 ( |
260 | - |
|
Datasheet | MID-PLC | Tray | Active | General Purpose | 1.1mH | - | 1.5:1 | Through Hole | - | 0.400" (10.16mm) | - | - | - |
|
|
749080010WE-LAN 2.5G/5G BASE-T SMT TRANSF |
389 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN | 200µH | - | 1:1 | Surface Mount | 0.550" L x 0.472" W (13.97mm x 12.00mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|

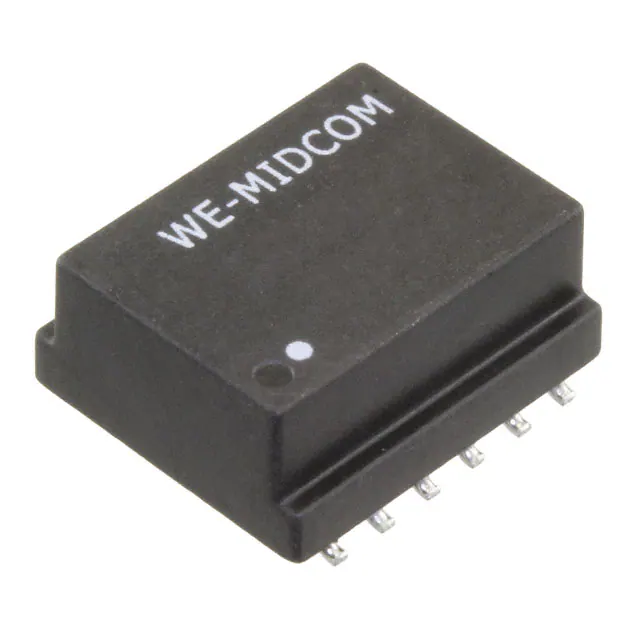

74901401810/100 BASE-T SMD TRANSFORMER 1 |
3,124 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.673" L x 0.581" W (17.10mm x 14.75mm) | 0.341" (8.65mm) | 0°C ~ 70°C | - | - |
|

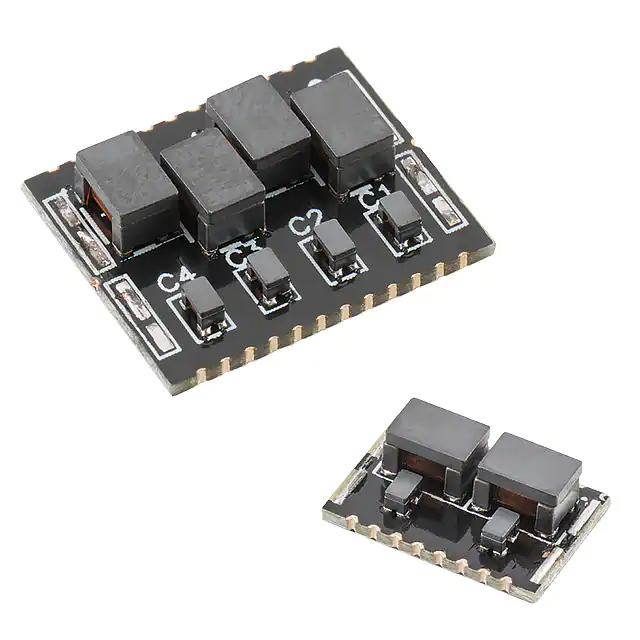

749010310PULSE XFMR 1:1 300UH |
1,552 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.341" W (12.70mm x 8.66mm) | 0.167" (4.25mm) | -40°C ~ 85°C | - | - |
|
|
749082010WE-LAN 2.5G/5G BASE-T SMT TRANSF |
1,356 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN | 120µH | - | 1:1 | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.346" (8.80mm) | -40°C ~ 85°C | - | - |
|
750110007TRANS ANALOG MODE SMART DAA SMD |
4,264 | - |
|
Datasheet | WE-AMT, MID-DAA | Tape & Reel (TR) | Active | - | 30µH | - | 1.67:1 | Surface Mount | 0.173" L x 0.360" W (4.39mm x 9.14mm) | 0.078" (1.98mm) | - | - | - |
|

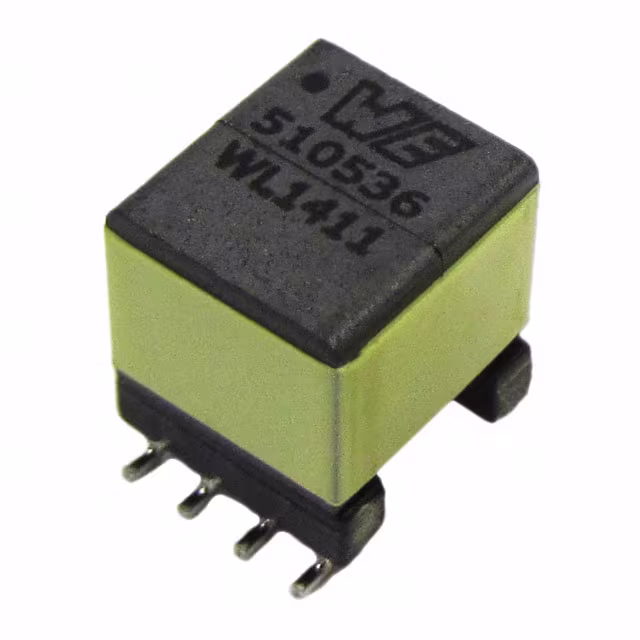

750510536WE-DSL TRANSFORMER |
3,419 | - |
|
Datasheet | MID-DSLITL | Tape & Reel (TR) | Active | ADSL | 1.44mH | - | 1.31:1 | Surface Mount | 0.310" L x 0.355" W (7.87mm x 9.02mm) | 0.400" (10.16mm) | -40°C ~ 85°C | - | - |
|
750510165XFRM VX180-IFE6 POTS DAUGHTERBRD |
3,810 | - |
|
Datasheet | MID-DSLIKN | Tape & Reel (TR) | Active | VDSL | 1.2mH | - | 3:1 | Surface Mount | 0.385" L x 0.360" W (9.78mm x 9.14mm) | 0.415" (10.54mm) | -40°C ~ 85°C | - | - |
|

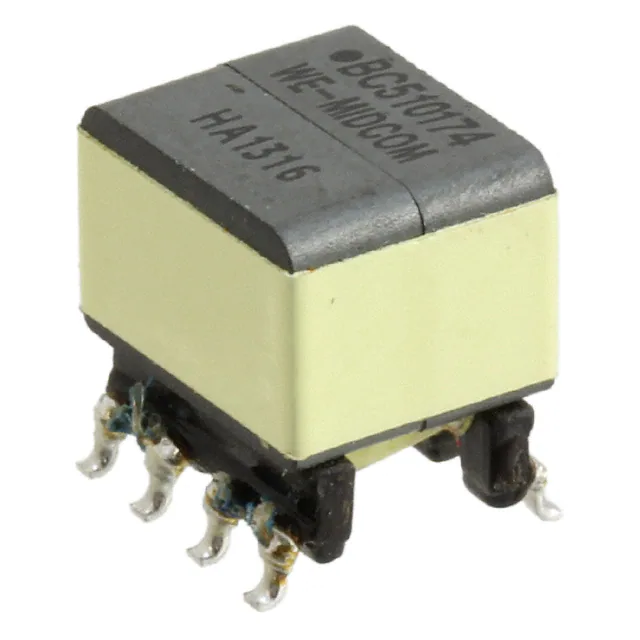

750510174XFRM VX180-IFE6 ISDN DAUGHTERBRD |
1,448 | - |
|
Datasheet | MID-DSLIKN | Tape & Reel (TR) | Obsolete | VDSL | 150µH | - | 3.17:1 | Surface Mount | 0.385" L x 0.360" W (9.78mm x 9.14mm) | 0.415" (10.54mm) | -40°C ~ 85°C | - | - |
|
7490100110TRANSFORMER LAN 10/100 SMD |
4,606 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | - | - | 0°C ~ 70°C | - | - |
Pulse Transformers FAQ
How can I narrow the current Pulse Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Pulse Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
