Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

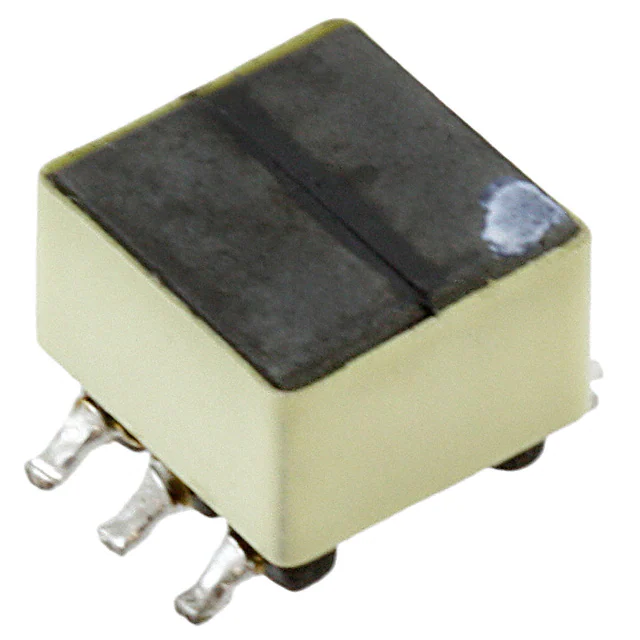

760301103XFRMR GATE DRIVE 2.5:1:1 SMD |
771 | - |
|
Datasheet | WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 350µH | 29.4VµS | 2.5:1:1 | Surface Mount | 0.276" L x 0.335" W (7.00mm x 8.50mm) | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
|
7490140123BWE-LAN 10/100 BASE-T SMT TRANSFO |
346 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.673" L x 0.581" W (17.10mm x 14.75mm) | 0.331" (8.40mm) | -40°C ~ 85°C | - | - |
|
749052011TRANSFORMER LAN |
185 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN | 120µH | - | 1:1 | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.283" (7.20mm) | 0°C ~ 70°C | - | - |
|
|
749050018TRANSFORMER LAN |
372 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN | 120µH | - | 1:1 | Surface Mount | 0.550" L x 0.532" W (13.97mm x 13.50mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
749024012TRANSFORMER WE-LAN 10/100/1000BT |
484 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.125" L x 0.500" W (28.57mm x 12.70mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
7490240120XFRMR WE-LAN 10/100/1000 BASE-T |
348 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
74942300WE-BMS SMT TRANSFORMER -40C TO + |
445 | - |
|
Datasheet | WE-BMS | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.594" L x 0.559" W (15.10mm x 14.20mm) | 0.187" (4.75mm) | -40°C ~ 125°C | - | - |
|
749014010TRANSFORMER WE-LAN MED 10/100BT |
406 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.673" L x 0.581" W (17.10mm x 14.75mm) | 0.341" (8.65mm) | 0°C ~ 70°C | - | - |
|

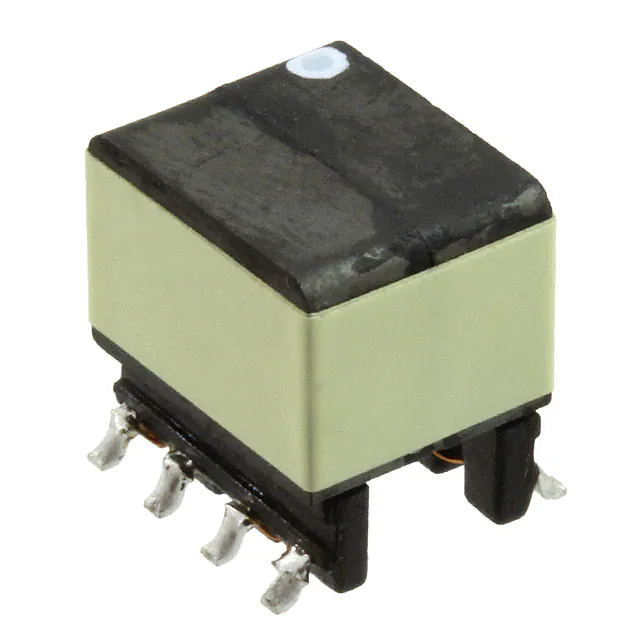

760301304XFRMR GATE DRIVE SMD |
572 | - |
|
Datasheet | WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 1.08mH | 120VµS | 2.5:1:1 | Surface Mount | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|

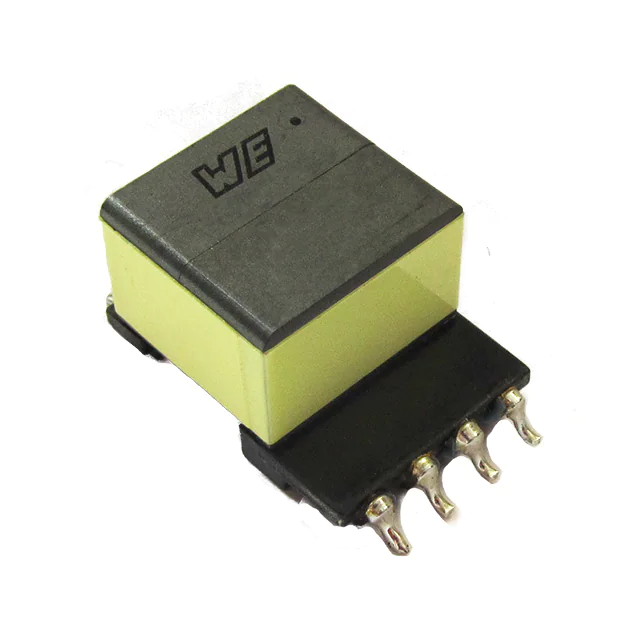

750510719DIGITAL TRANSFORMER |
130 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 1µH | - | 1:1 | Surface Mount | - | 0.532" (13.50mm) | - | - | - |
