Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
749020023AXFRMR LAN 1000 BASE-T 1:1 350UH |
325 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.167" (4.25mm) | -40°C ~ 85°C | - | - |
|
749022011TRANSFORMER LAN 10/100/1000 POE |
1,545 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 0.720" L x 0.480" W (18.30mm x 12.20mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|

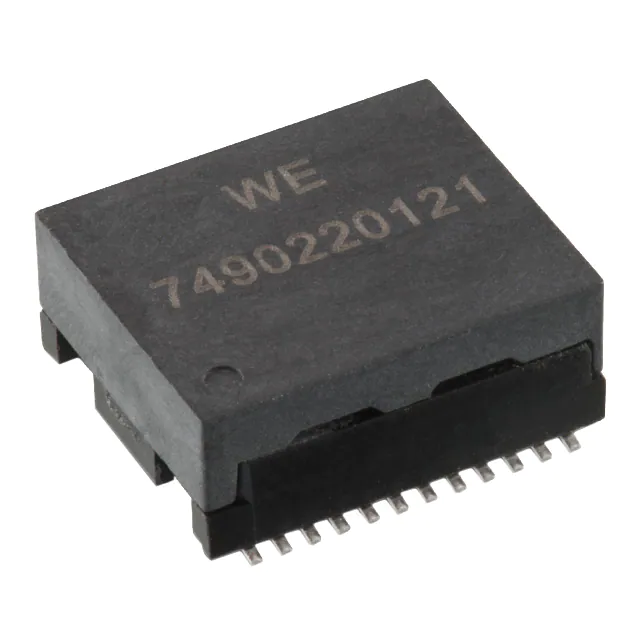

7490220121PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
829 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.283" (7.20mm) | -40°C ~ 85°C | - | - |
|

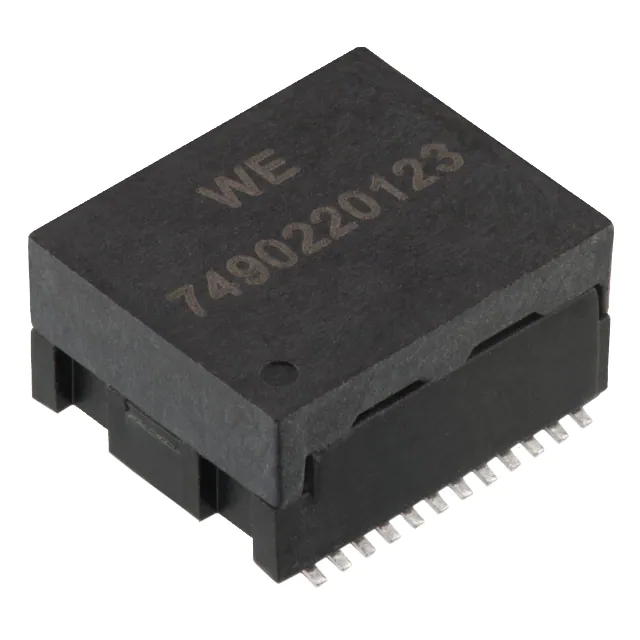

7490220123PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
633 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 180µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.346" (8.80mm) | -40°C ~ 85°C | - | - |
|
749020100AWE-LAN 10/100/1000 BASE-T SMD |
758 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.339" W (12.70mm x 8.60mm) | 0.128" (3.25mm) | -40°C ~ 105°C | - | - |
|
749020011ATRANSFORMER LAN 10/100/1000 SMD |
1,327 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.256" (6.50mm) | -40°C ~ 85°C | - | - |
|
749020010ATRANSFORMER LAN 10/100/1000 SMD |
414 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|

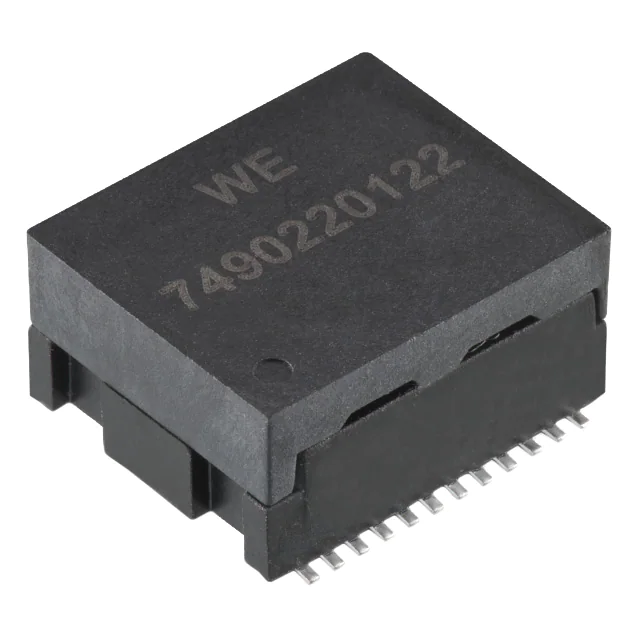

7490220122PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
147 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.346" (8.80mm) | -40°C ~ 85°C | - | - |
|
749020310WE-LAN AQ 10/100/1000 BASE-T SMD |
668 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.690" L x 0.575" W (17.53mm x 14.60mm) | 0.177" (4.50mm) | -40°C ~ 105°C | - | - |
|
760301302XFRMR GATE DRIVE SMD |
2,034 |
1+：$6.93000 50+：$6.53000 100+：$6.25000 |
|
Datasheet | WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 750µH | 102VµS | 1:1 | Surface Mount | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
Pulse Transformers FAQ
How can I narrow the current Pulse Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Pulse Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
