Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74930030WE-STST SMT SUPER TINY SIGNAL TR |
2,478 | - |
|
Datasheet | WE-STST | Tape & Reel (TR) | Active | - | 350µH | - | 1:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 105°C | - | - |
|
749302011XFRMR 1:4.5:4.5:1 2MH SMD |
3,523 | - |
|
Datasheet | WE-STST | Tape & Reel (TR) | Active | - | 2mH | - | 1:4.5:4.5:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 105°C | - | - |
|
750317161POWER TRANSFORMER EP5 SMT; UI = |
3,081 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 3mH | - | - | Surface Mount | - | 0.220" (5.59mm) | - | - | - |
|
|
750316928PUSH-PULL TRANSFORMER EP5 SMT; F |
850 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | - | 0.220" (5.59mm) | - | - | - |
|
7500718001ANALOG MODEM XFRM WE-AMT |
274 | - |
|
Datasheet | WE-AMT, MID-AMT | Tray | Active | Data/Voice Coupling | 185mH | - | 1:1 | Through Hole | 0.945" L x 0.906" W (24.00mm x 23.00mm) | 0.472" (11.99mm) | -40°C ~ 85°C | - | - |
|
750316093GATE DRIVE TRANSFORMER |
1,403 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 1.71mH | - | 1:1 | Surface Mount | - | 0.212" (5.38mm) | - | - | - |
|
74941302WE-BMS SMT TRANSFORMER -40C TO + |
742 | - |
|
Datasheet | WE-BMS | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.563" L x 0.374" W (14.30mm x 9.50mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|
|
74941300WE-BMS SMT TRANSFORMER -40C TO + |
278 | - |
|
Datasheet | WE-BMS | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.350" L x 0.299" W (8.90mm x 7.60mm) | 0.217" (5.50mm) | -40°C ~ 125°C | - | - |
|

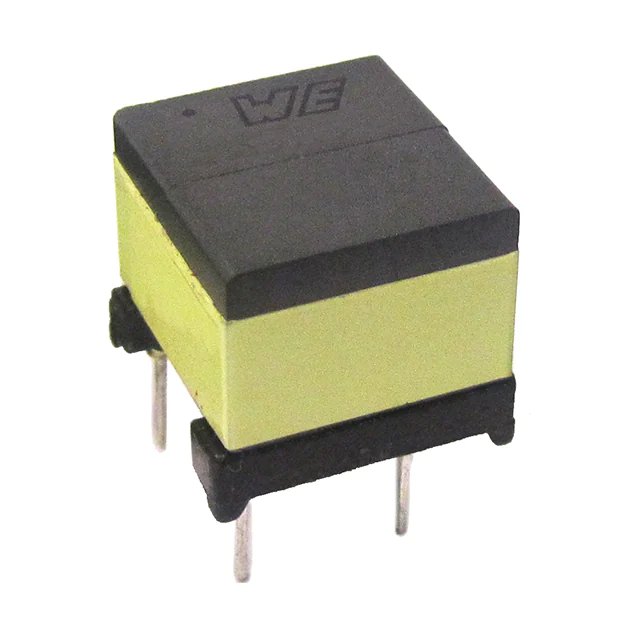

750510231DIGITAL TRANSFORMER |
3,318 | - |
|
Datasheet | - | Tray | Active | - | 1mH | - | 1:1 | Through Hole | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.530" (13.46mm) | - | - | - |
|
7490100110ATRANSFORMER LAN 10/100 SMD |
4,367 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
Pulse Transformers FAQ
How can I narrow the current Pulse Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Pulse Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
