Pulse Transformers
Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T1137NLTRANSFORMER TELECOM DUAL T1/E2 |
782 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
HM2171HLDUAL XFMR CMC 150UH 1:1 4.3KV |
355 | - |
|
Datasheet | - | Tube | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 125°C | - | - |
|
|
T1090NLTXFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH |
895 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
TX1099NLXFRMR 1CT:1:0.8/1CT:1:0.8 SMD |
680 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1:0.8, 1CT:1:0.8 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
PE-65861NLTXFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH |
242 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|

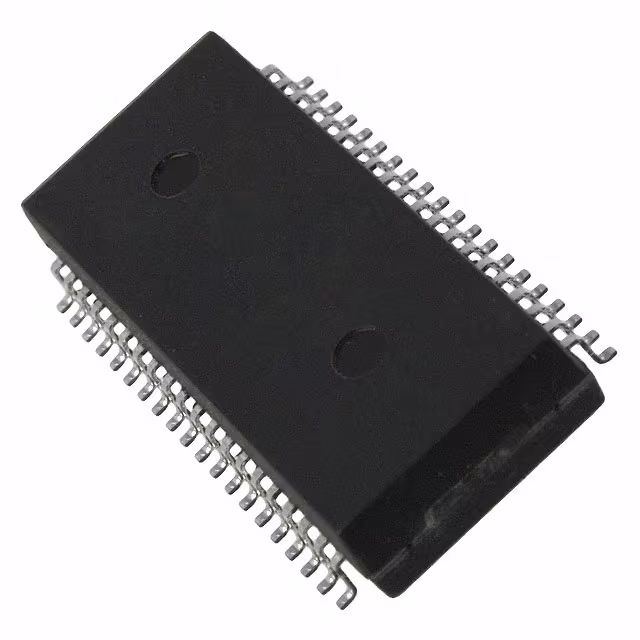

T1124NLXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT |
283 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1CT:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
E2023FNLXFRMR LAN ISOL 10BASET 1:2.5 SMD |
408 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
H1100NLXFRMR MAGNETIC 1PORT 2:1 10/100 |
415 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 2:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
B82806D0060A240P300868 EFD20 POE TRANSFORMER |
319 | - |
|
Datasheet | B82806D | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.866" L x 1.181" W (22.00mm x 30.00mm) | - | -40°C ~ 125°C | - | - |
|
|
TM40601ANLXFMR CMC MODULE AECQ BATT MNGT |
3,000 | - |
|
Datasheet | Stratos | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.299" L x 0.268" W (7.60mm x 6.80mm) | 0.213" (5.40mm) | -40°C ~ 125°C | - | - |
|
BM6155NLTTRANSFORMER 28UH 1:1:1 3KV SMT |
423 | - |
|
Datasheet | BM615xNL | Tape & Reel (TR) | Active | - | 28µH | - | 1:1:1 | Surface Mount | 0.417" L x 0.357" W (10.60mm x 9.08mm) | 0.394" (10.00mm) | -40°C ~ 125°C | - | - |
|
EX2024NLXFRMR LAN ISOL 10BASET 1:2.5 SMD |
124 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
|
TM1188NLLAN XFMR 10/100 BASE-T SINGLE |
2,178 | - |
|
Datasheet | Exos | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.504" L x 0.281" W (12.80mm x 7.15mm) | 0.197" (5.00mm) | -40°C ~ 85°C | - | - |
|
HDX8004NLMDL,SIN, HDBASET, 60W, SMT |
210 | - |
|
Datasheet | - | Tube | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | - | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
_R5001NL(T)_iNRCORE_Product-Image.jpg "R5001NL")
|
R5001NLXFRMR ETHERNET MOD IND 1000B-T |
198 | - |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | 350µH | - | - | Surface Mount | 0.700" L x 0.490" W (17.78mm x 12.45mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|

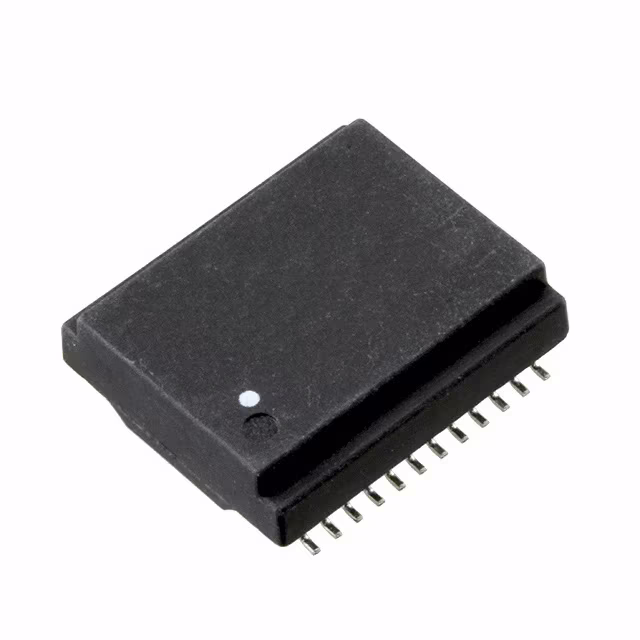

H5007EFNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
736 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

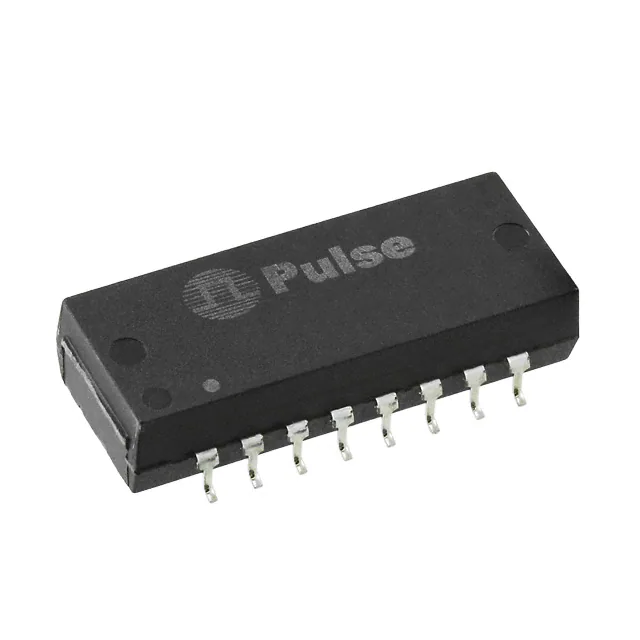

H1086NLTXFRMR MODULE 1PORT 1:1 10/100 |
803 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
H7019FNLTRANSFORMER MODULE 10GBASE-T SMD |
151 | - |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
749014010TRANSFORMER WE-LAN MED 10/100BT |
406 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.673" L x 0.581" W (17.10mm x 14.75mm) | 0.341" (8.65mm) | 0°C ~ 70°C | - | - |
|
HX1112QNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
412 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 85°C | - | - |
