Pulse Transformers
Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G509TRANSFORMER 0.50MH 1CT:1CT PULSE |
357 | - |
|
Datasheet | G5 | Tube | Active | Isolation and Data Interface (Encapsulated) | 500µH | 8.5VµS | 1CT:1CT | Through Hole | 0.350" L x 0.500" W (8.90mm x 12.70mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
_iNRCORE_Product-Image.jpg "R4009NL")
|
R4009NLXFRMR ETHERNET MOD IND 10/100B-T |
135 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 1.080" L x 0.480" W (27.43mm x 12.19mm) | 0.226" (5.74mm) | -40°C ~ 85°C | - | - |
|
TM2019ANLLAN XFMR 10/100 BASE-T (POE+) |
3,871 | - |
|
Datasheet | Exos | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.185" (4.70mm) | -40°C ~ 85°C | - | - |
|
H7029FNL10GBASE-T DISCRETE 4CH MAR/SOL P |
1,355 | - |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 120µH | - | 1:1 | - | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
|
TM42430ANLLAN XFMR 10/100 BASE-T (POE) |
2,000 | - |
|
Datasheet | Exos | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.535" L x 0.480" W (13.60mm x 12.20mm) | 0.224" (5.70mm) | -40°C ~ 85°C | - | - |
|

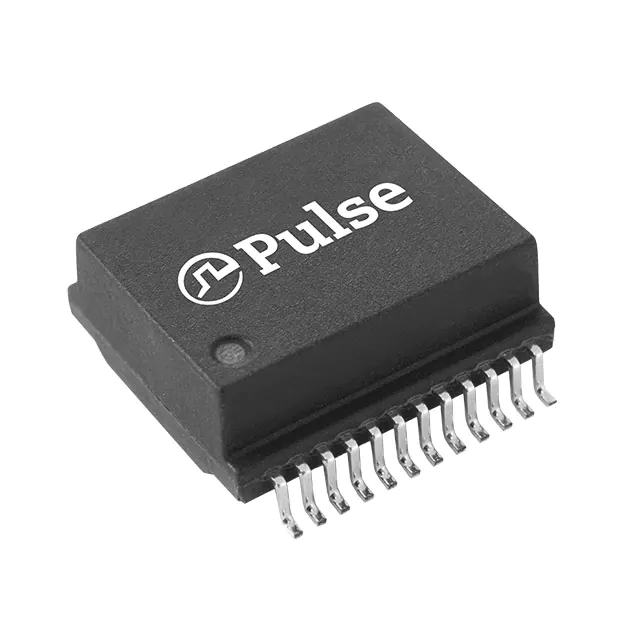

HU4006NLMODULE MAGNETIC SNGL 2.5GB SMT |
200 | - |
|
Datasheet | - | Tube | Active | - | - | - | - | Surface Mount | 0.540" L x 0.480" W (13.72mm x 12.19mm) | 0.226" (5.75mm) | 0°C ~ 70°C | - | - |
_iNRCORE_Product-Image.jpg "R5003NL")
|
R5003NLXFRMR ETHERNET MOD IND 1000B-T |
120 | - |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | 350µH | - | - | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | -40°C ~ 85°C | - | - |
|
|
TX1341NLXFRMR OCTAL 1:2 1.2MH SMD |
146 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:2 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
749050010U10G BASE-T TRANSFORMER 1 PORT |
284 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10G Base-T | 200µH | - | - | Surface Mount | 0.550" L x 0.500" W (13.97mm x 12.00mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
H5019NLTRANSFORMER MODULE GIGABIT 1PORT |
941 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.780" L x 0.655" W (19.81mm x 16.64mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|
|
TM5007NLLAN XFMR 1G BASE-T SINGLE |
1,593 | - |
|
Datasheet | Exos | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.224" (5.70mm) | 0°C ~ 70°C | - | - |
|
S558-5999-AN-FMODULE XFRMR GIGABIT MINIPCI SMD |
1,441 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.880" L x 0.540" W (22.35mm x 13.72mm) | 0.084" (2.13mm) | 0°C ~ 70°C | - | - |
|
2337822-5DISCRETE ETHERNET MAGNETICS SING |
411 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | - | - | -40°C ~ 105°C | - | - |
|
H5004ENLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
105 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

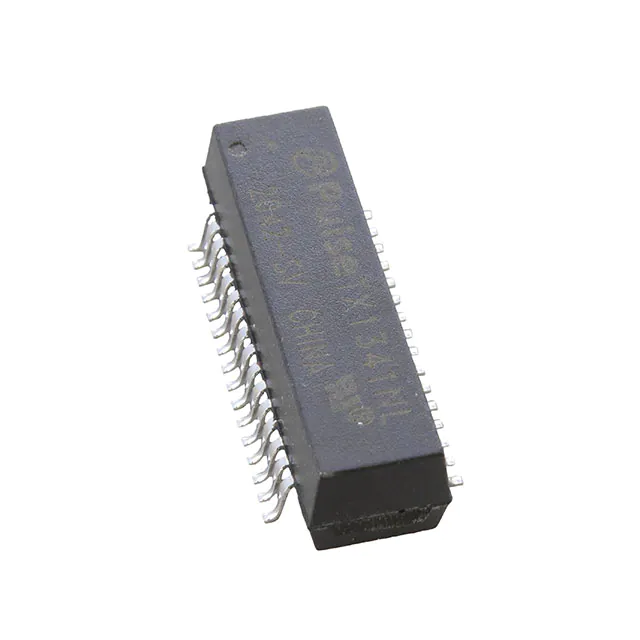

TX1341NLTXFRMR OCTAL 1:2 1.2MH SMD |
3,070 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:2 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
TX1473NLTXFRMR OCTAL 1:2/1:1 1.2MH SMD |
600 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:2, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
TM7008NLLAN XFMR 10G BASE-T (POE+) |
1,800 | - |
|
Datasheet | Exos | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.539" L x 0.480" W (13.70mm x 12.20mm) | 0.223" (5.67mm) | 0°C ~ 70°C | - | - |
|
HX6106NLTPULSE XFMR 350UH |
388 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN, Power over Ethernet (PoE) | 350µH | - | - | Surface Mount | 0.715" L x 0.511" W (18.16mm x 12.98mm) | 0.410" (10.41mm) | - | - | - |
|
|
T1068NLTXFRMR 4PORT 1:2CT 1.2MH SMD |
737 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:1CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
T1124NLTXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT |
380 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1CT:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
