Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S558-5999-AA-FMODULE XFRMR LAN 10/100B-TX SMD |
1,180 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.476" W (27.94mm x 12.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
S558-5500-JVXFRMR LAN 5G 60W POE SMD |
760 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1CT:1CT | Surface Mount | 0.690" L x 0.600" W (17.53mm x 15.24mm) | 0.225" (5.71mm) | -40°C ~ 85°C | - | - |
|
S558-5999-AN-FMODULE XFRMR GIGABIT MINIPCI SMD |
1,441 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.880" L x 0.540" W (22.35mm x 13.72mm) | 0.084" (2.13mm) | 0°C ~ 70°C | - | - |
|
|
S558-5500-72TRANSFORMER PULSE |
450 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | - | - | - |
|

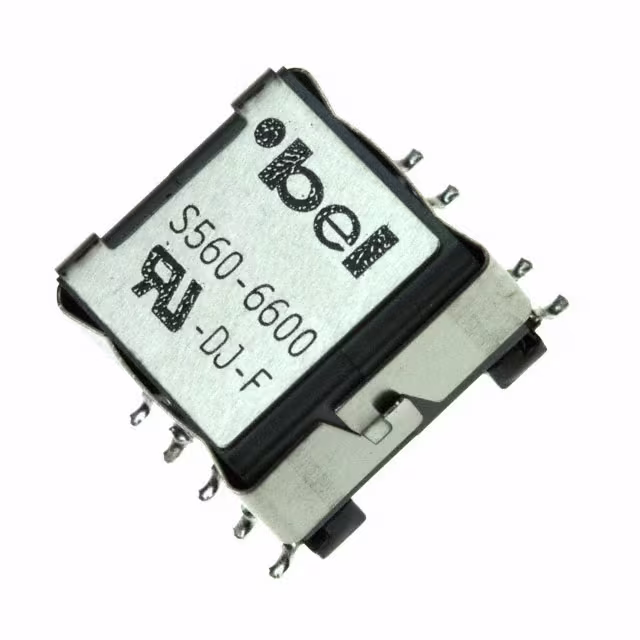

S560-6600-DJ-FMODULE XFRMR LAN SHDSL ISOL SMD |
600 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SHDSL | 3mH | - | 1:5.4 | Surface Mount | 0.540" L x 0.585" W (13.72mm x 14.86mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
S558-5500-JBMODULE XFRMR LAN 1G 2.5G POE SMD |
4,196 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1/2.5 GBase-T, Power over Ethernet (PoE) | 120µH | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.19mm) | 0.225" (5.71mm) | -40°C ~ 85°C | - | - |
|
S558-10GB-23MODULE XFRMR LAN 10G POE SMD |
2,477 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | 1CT:1CT | Surface Mount | 0.610" L x 0.480" W (15.49mm x 12.19mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
S558-5999-Z5-FMODULE XFRMR LAN 10/100B-TX SMD |
1,192 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
S558-5500-68XFRMR MODULE LAN 10/100BT SMD |
3,911 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
S558-5999-BQ-FMODULE TRANSFORMER |
2,746 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | - | - | - |
