Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S558-5500-67TRANSFORMER PULSE |
1,473 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | - | 0.270" (6.86mm) | - | - | - |
|
S558-5999-T9-FMODULE XFRMR |
4,745 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
S558-5999-BD-FXFRMR MODULE LAN GIGABT MINIPCI |
4,745 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.610" L x 0.280" W (15.49mm x 7.11mm) | 0.084" (2.13mm) | 0°C ~ 70°C | - | - |
|
|
S558-5999-K6-FXFRMR MOD LAN 10/100BT 12P SMD |
4,998 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 400µH | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 0.590" L x 0.470" W (14.99mm x 11.94mm) | 0.196" (4.98mm) | - | - | - |
|
|
S558-5500-44TRANSFORMER PULSE |
2,474 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.542" L x 0.480" W (13.77mm x 12.19mm) | 0.250" (6.35mm) | - | - | - |
|
|
S558-5500-05-FMODULE XFRMR |
2,982 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
S558-5999-U5-FXFRMR MODULE LAN 10/100BT 16P SM |
4,620 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
|
S558-5500-76TRANSFORMER PULSE |
2,353 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.19mm) | 0.225" (5.71mm) | - | - | - |
|
|
S558-5999-T4-FXFRMR MODULE LAN GIGABIT 24P SMD |
4,964 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.522" L x 0.600" W (13.26mm x 15.24mm) | 0.250" (6.35mm) | - | - | - |
|

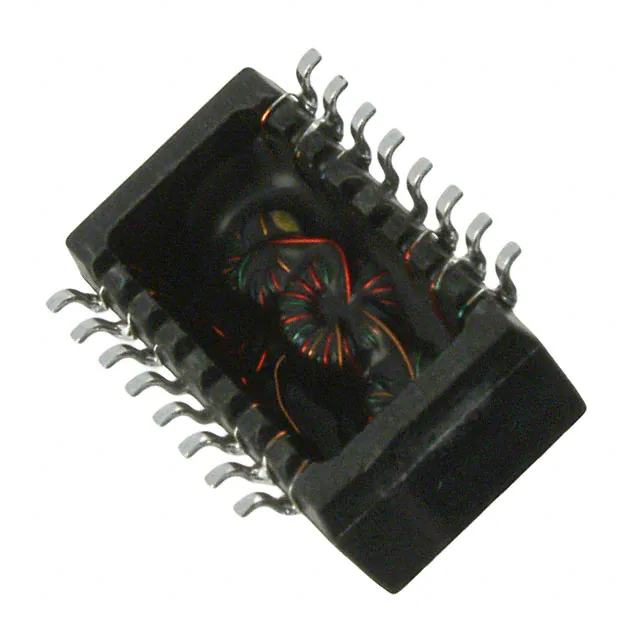

S553-5999-86-FMODULE XFRMR LAN 10B-T SMD |
1,749 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10 Base-T | 110µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
Pulse Transformers FAQ
How can I narrow the current Pulse Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Pulse Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
