Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

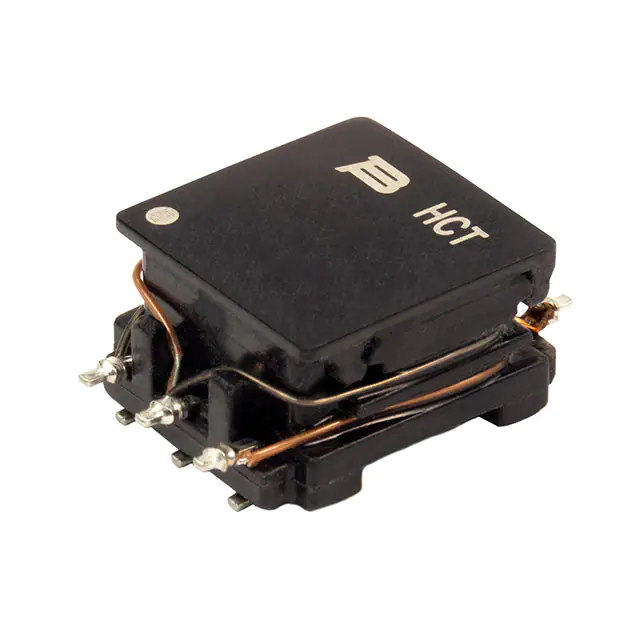

HCTSM80102AAL-E1XFRMR POWER 1:2 250UH SMD |
1,004 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Discontinued at Digi-Key | - | 250µH | 11.0VµS | 1:2 | Surface Mount | 0.598" L x 0.425" W (15.20mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
SM91078L-ETRANS LAN 100B-TX 1 PORT |
4,805 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN 100 Base-T | - | - | - | - | - | - | - | - | - |
|
SM91602L-ETRANSF LAN GIGABIT 1 CH SMD |
1,793 | - |
|
Datasheet | SM | Tape & Reel (TR) | Obsolete | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.299" L x 0.772" W (33.00mm x 19.60mm) | 0.413" (10.50mm) | 0°C ~ 85°C | - | - |
|
PT61022ELPULSE XFMR 1CT:1 350UH |
1,636 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 | Surface Mount | 0.539" L x 0.600" W (13.70mm x 15.24mm) | 0.205" (5.20mm) | 0°C ~ 70°C | - | - |
|
SM51108ELPULSE XFMR 1CT:1CT 350UH |
4,329 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.472" L x 0.276" W (12.00mm x 7.00mm) | 0.215" (5.45mm) | -40°C ~ 85°C | - | - |
|

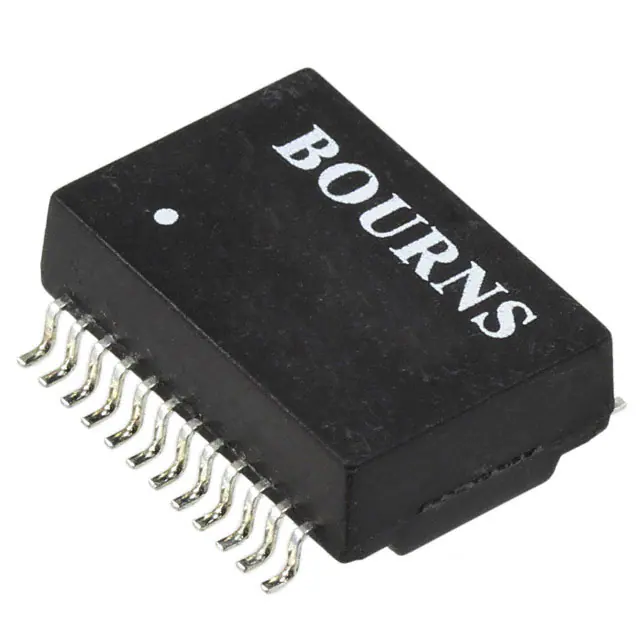

SM51589ELPULSE XFMR 1CT:1CT 350UH |
2,334 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.694" L x 0.480" W (17.62mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
PT61018AAPELLAN 10/100 BASE T XFORMER AECQ + |
2,553 | - |
|
Datasheet | PT | Tape & Reel (TR) | Discontinued at Digi-Key | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.232" (5.90mm) | -40°C ~ 85°C | Automotive | AEC-Q200 |
|
|
SM61072ELSIGNAL TRANSFORMER |
1,176 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
SM61071ELSIGNAL TRANSFORMER |
1,783 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
SM13080CELSM13080CEL ETHERNET TRANSFORMER |
3,038 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
Pulse Transformers FAQ
How can I narrow the current Pulse Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Pulse Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
