Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT61018PELPULSE XFMR 1CT:1CT 350UH |
4,777 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
HCTSM80809AAL-E1XFMR 3.3-5V/3.3-15V,350MA PK TR |
4,690 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Discontinued at Digi-Key | Isolation and Data Interface (Encapsulated) | 250µH | 11.0VµS | 8:9 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|

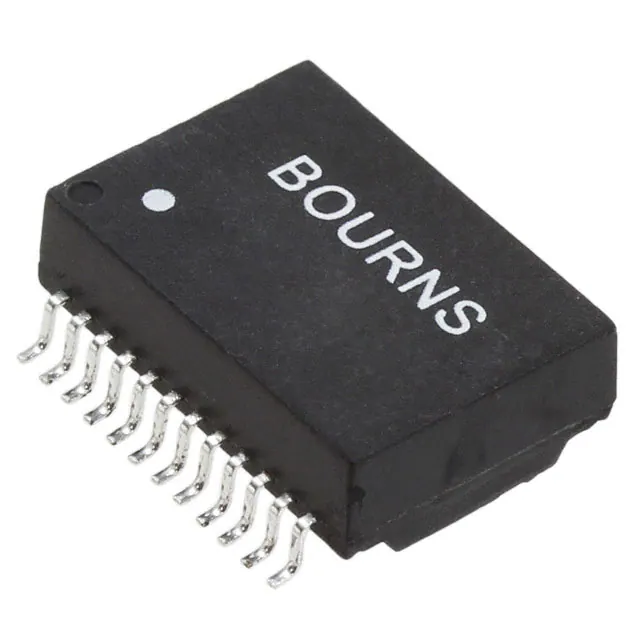

PT61020ELPULSE XFMR 1CT:1 350UH |
3,034 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 | Surface Mount | 0.694" L x 0.480" W (17.62mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
SM453229A-381N7YLAN XFMR,10/100/1000 BASE-T,IEEE |
3,282 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 85°C | Automotive | AEC-Q200 |
|
|
SM91808AL-ETRANSF PLANAR BMS 1000VDC |
4,672 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Battery Management | 450µH | - | 1:1 | Surface Mount | 0.685" L x 0.335" W (17.40mm x 8.50mm) | 0.150" (3.80mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
SM51430ELTRANSFORMER G FAST 8SMD |
1,325 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN | 10µH | - | 1:1 | Surface Mount | 0.299" L x 0.197" W (7.60mm x 5.00mm) | 0.209" (5.30mm) | -40°C ~ 85°C | - | - |
|
SM75056PELPULSE XFMR 1:1 TX 1:1 RX 1.2MH |
3,335 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 1.2mH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
|
POE012-PD13120STRANS FLYBACK POE 12W 12V |
3,329 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
SM75057PELPULSE XFMR 1:2 TX 1:2 RX 1.2MH |
3,141 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
SM51108PELPULSE XFMR 1CT:1CT 350UH |
1,292 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
Pulse Transformers FAQ
How can I narrow the current Pulse Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Pulse Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
