Pulse Transformers
Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX1224CNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
541 | - |
|
Datasheet | µCom | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.537" L x 0.570" W (13.64mm x 14.48mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
760301106XFRMR GATE DRIVE 1:1 SMD |
2,744 | - |
|
Datasheet | WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 370µH | - | 1:1 | Surface Mount | 0.276" L x 0.335" W (7.00mm x 8.50mm) | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
|
HX5008NLTTRANSFORMER MODULE GIGABIT 1PORT |
8,165 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | -40°C ~ 85°C | - | - |
|

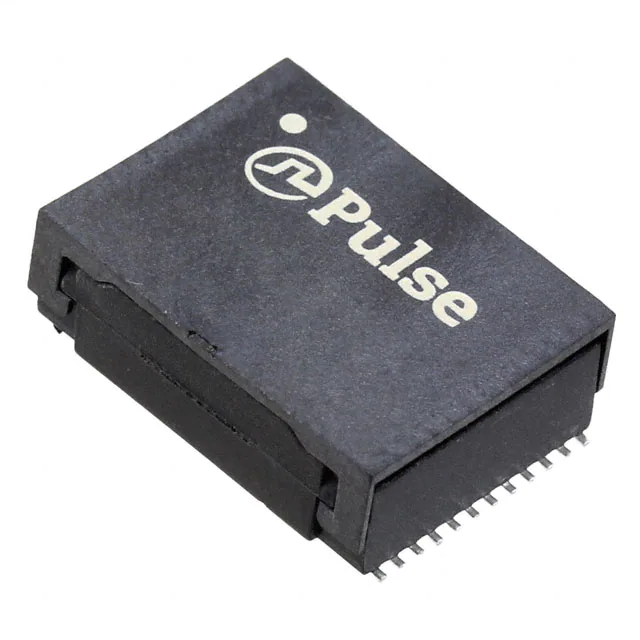

HX5008FNLTPULSE XFMR 1CT:1 TX 1CT:1 RX |
1,993 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 325µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 0.518" L x 0.703" W (13.16mm x 17.86mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
|
H5004NLTTRANSFORMER MODULE GIGABIT 1PORT |
1,151 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|

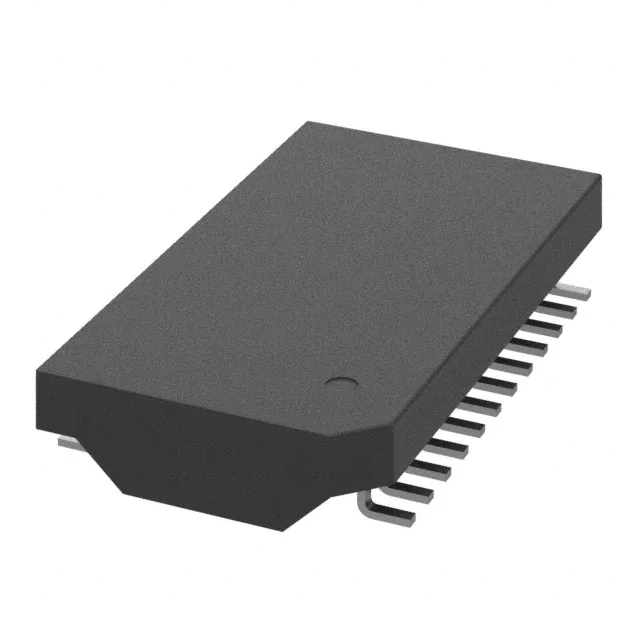

HX5149NLTPULSE XFMR 1 CT:1CT TX/RX 360UH |
2,929 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 360µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.390" W (17.78mm x 9.91mm) | 0.126" (3.20mm) | -40°C ~ 85°C | - | - |
|
749020112BTRANSFORMER LAN 10/100/1000 SMD |
2,012 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.703" L x 0.364" W (17.85mm x 9.25mm) | 0.094" (2.39mm) | -40°C ~ 105°C | - | - |
|
HX5062NLPULSE XFMR 1 CT:1CT TX/RX 350UH |
1,084 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
HX6062NLTPULSE XFMR 1CT:1CT TX/RX |
13,147 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 325µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
H5007NLTTRANSFORMER MODULE GIGABIT 1PORT |
2,781 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|
|
HM0068BNLTMDL SIN 100D 1:1 SMT TR |
2,743 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 100 Base-T | - | - | 1:1CT, 1:1CT | Surface Mount | - | - | -40°C ~ 105°C | - | - |
|
HM0068ANLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
303 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.347" W (12.70mm x 8.81mm) | 0.082" (2.08mm) | -40°C ~ 105°C | - | - |
|

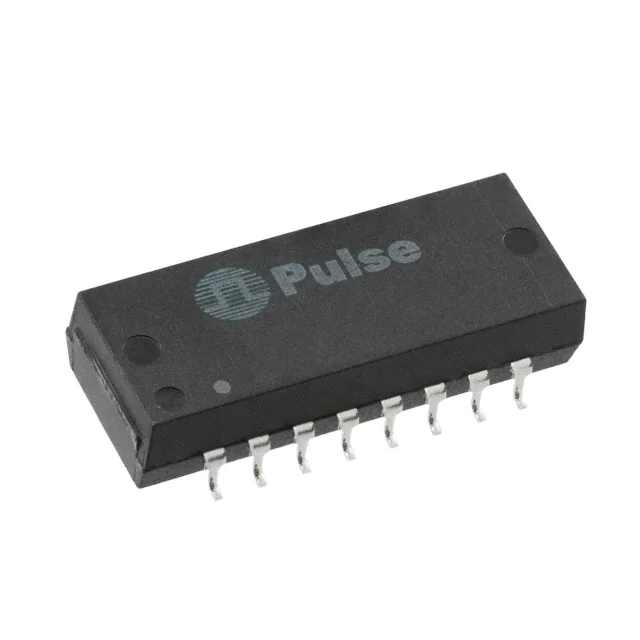

HX1148NLTXFRMR MODULE 1PORT 1:1 10/100 |
1,013 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
H5008FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,786 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.743" L x 0.538" W (18.87mm x 13.67mm) | 0.231" (5.87mm) | 0°C ~ 70°C | - | - |
|
HCTSM150102HL-ETRANSF HIGH VOLTAGE ISOLATION |
626 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 80µH | 25VµS | - | Surface Mount | 0.839" L x 0.591" W (21.30mm x 15.00mm) | 0.380" (9.65mm) | -40°C ~ 125°C | - | - |
|

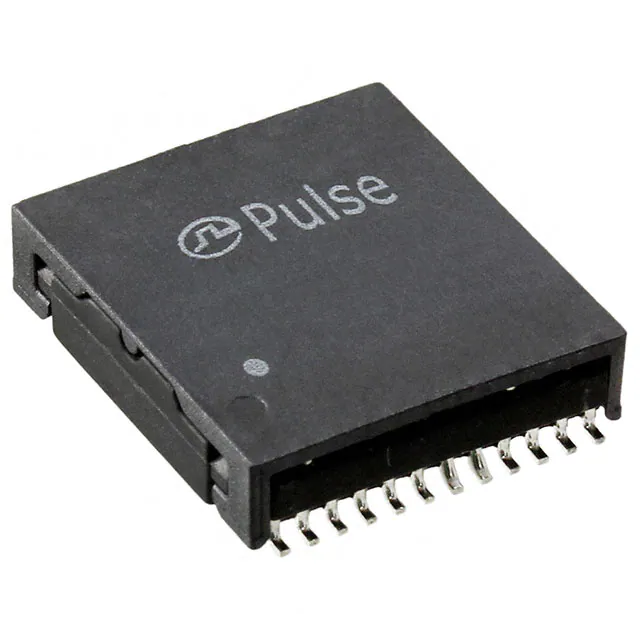

H1270FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,073 | - |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.515" L x 0.574" W (13.08mm x 14.58mm) | 0.145" (3.68mm) | 0°C ~ 70°C | - | - |
|

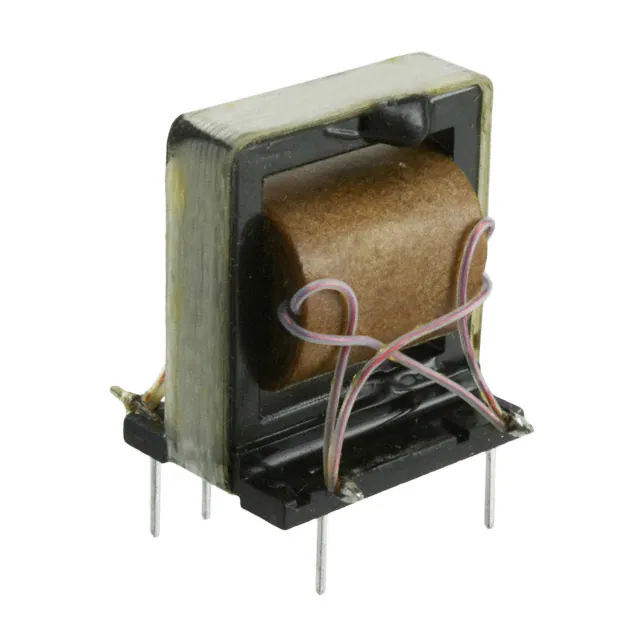

PE-63387NLPULSE XFMR 1:1:1 1.5MH |
662 | - |
|
Datasheet | - | Tray | Active | - | 1.5mH | 320VµS | 1:1:1 | Through Hole | 1.090" L x 0.750" W (27.69mm x 19.05mm) | 1.200" (30.48mm) | 0°C ~ 70°C | - | - |
|
H5120NLTMODULE MAGNETIC 1PORT 1000BASE-T |
1,513 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.650" L x 0.365" W (16.51mm x 9.27mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
|
H5120NLMODULE XFORMR SNGL GIGABIT SMD |
962 | - |
|
Datasheet | - | Tube | Active | - | - | - | 1CT:1CT | Surface Mount | 0.650" L x 0.365" W (16.51mm x 9.27mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
|
H5077NLTMODULE MINI-MAG 1PORT 1000BASE-T |
332 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.550" L x 0.495" W (13.97mm x 12.57mm) | 0.190" (4.82mm) | 0°C ~ 70°C | - | - |
