Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FST12040DIODE MOD SCHOT 40V 120A TO249AB |
2,758 | - |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 40 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
FST12045DIODE MOD SCHOT 45V 120A TO249AB |
4,698 | - |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
FST12060DIODE MOD SCHOT 60V 120A TO249AB |
5,217 | - |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 60 V | 120A (DC) | 750 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
FST12080DIODE MOD SCHOT 80V 120A TO249AB |
9,991 | - |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 80 V | 120A (DC) | 840 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
FST120150DIODE MOD SCHOT 150V 60A TO249AB |
8,305 | - |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 60A | 880 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
FST120200DIODE MOD SCHOT 200V 60A TO249AB |
9,553 | - |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 200 V | 60A | 920 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|

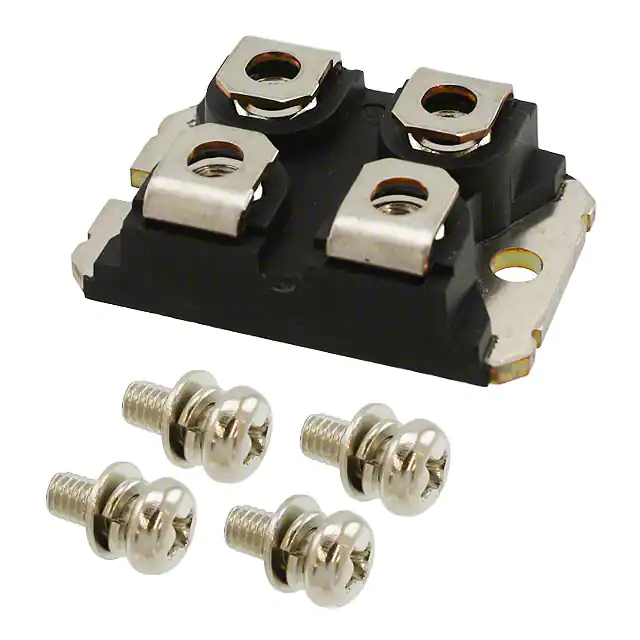

MBR200100CTSDIODE MOD SCHOT 100V 200A SOT227 |
4,852 | - |
|
Datasheet | - | SOT-227-4 | Tube | Obsolete | 2 Independent | Schottky | 100 V | 200A (DC) | 950 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 80 V | -40°C ~ 175°C | - | - | Screw Mount | SOT-227 |
|
MBR12035 CTRDIODE MOD SCHOTT 35V 120A 2TOWER |
7,940 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 35 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MUR10005CTDIODE MODULE GP 50V 50A 2TOWER |
2,816 | - |
|
Datasheet | - | Twin Tower | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 50 V | 50A | 1.3 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MUR10005CTRDIODE MODULE GP 50V 50A 2TOWER |
8,057 | - |
|
Datasheet | - | Twin Tower | Bulk | Obsolete | 1 Pair Common Anode | Standard | 50 V | 50A | 1.3 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
