Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

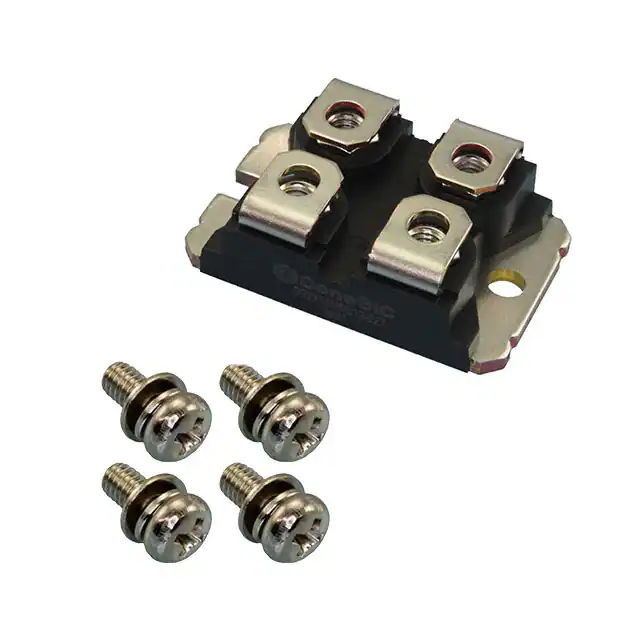

GB2X50MPS17-227DIODE MOD SIC 1700V 136A SOT-227 |
79 | - |
|
Datasheet | SiC Schottky MPS™ | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | SiC (Silicon Carbide) Schottky | 1700 V | 136A (DC) | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 50 µA @ 1700 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
MBRT20060RDIODE MOD SCHOTT 60V 100A 3TOWER |
67 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 60 V | 100A | 800 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
MUR20020CTDIODE MODULE GP 200V 100A 2TOWER |
48 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Standard | 200 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR2X030A045DIODE MOD SCHOTT 45V 60A SOT-227 |
39 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 45 V | 60A | 700 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|

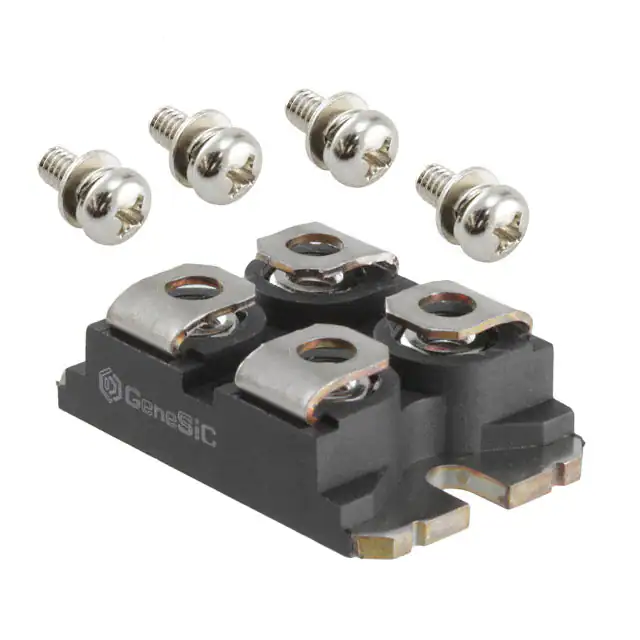

MUR2X060A02DIODE MODULE GP 200V 60A SOT-227 |
60 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 200 V | 60A | 1 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
MUR2X100A04DIODE MODULE GP 400V 100A SOT227 |
12 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 400 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 90 ns | 25 µA @ 400 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
GE2X8MPS06DDIODE ARRAY SIC 650V 19A TO247-3 |
38 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-3 | Tube | Discontinued at Digi-Key | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 650 V | 19A (DC) | - | No Recovery Time > 500mA (Io) | - | - | -55°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
|
MBRT20060DIODE MOD SCHOTT 60V 100A 3TOWER |
10 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 60 V | 100A | 800 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBR2X030A100DIODE MOD SCHOTT 100V 60A SOT227 |
8,081 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 100 V | 60A | 840 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
|
MUR2X060A06DIODE MODULE GP 600V 60A SOT-227 |
9,602 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 600 V | 60A | 1.5 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 90 ns | 25 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
