Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MURT10020DIODE MODULE GP 200V 50A 3TOWER |
2,658 | - |
|
Datasheet | - | Three Tower | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 50A | 1.3 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MURT10020RDIODE MODULE GP 200V 50A 3TOWER |
8,838 | - |
|
Datasheet | - | Three Tower | Bulk | Obsolete | 1 Pair Common Anode | Standard, Reverse Polarity | 200 V | 50A | 1.3 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|

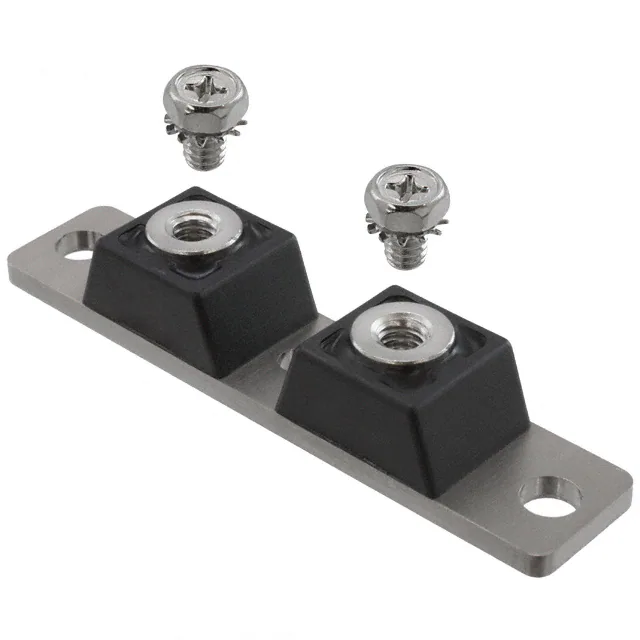

MBR20030CTDIODE MOD SCHOTT 30V 200A 2TOWER |
2,218 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 30 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|

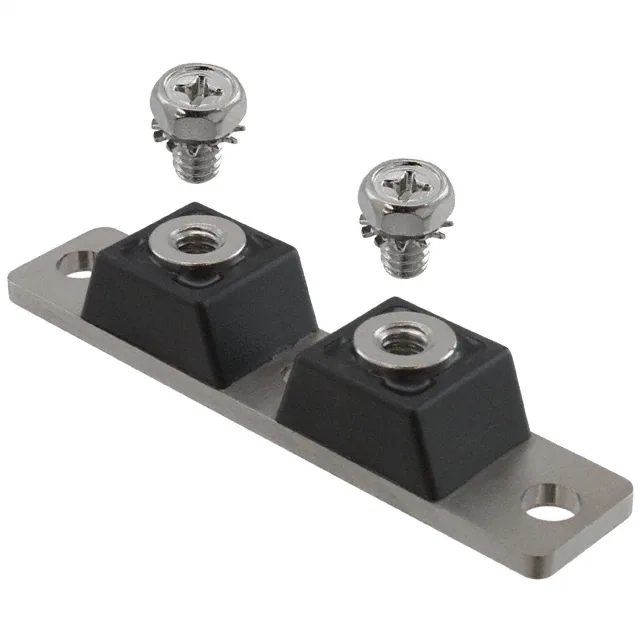

MBR20030CTRDIODE MOD SCHOTT 30V 200A 2TOWER |
6,574 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 30 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR200100CTDIODE MOD SCHOT 100V 200A 2TOWER |
8,219 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 200A (DC) | 840 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR200100CTRDIODE MOD SCHOT 100V 200A 2TOWER |
3,373 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 100 V | 200A (DC) | 840 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20020CTDIODE MOD SCHOTT 20V 200A 2TOWER |
6,209 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 20 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20020CTRDIODE MOD SCHOTT 20V 200A 2TOWER |
2,926 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 20 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20035CTDIODE MOD SCHOTT 35V 200A 2TOWER |
2,004 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20035CTRDIODE MOD SCHOTT 35V 200A 2TOWER |
7,242 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 35 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
