Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSRT150120DDIODE MOD GP 1200V 150A 3TOWER |
5,768 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1200 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1200 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT15060DDIODE MODULE GP 600V 150A 3TOWER |
8,731 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 600 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 600 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT15080DDIODE MODULE GP 800V 150A 3TOWER |
8,352 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 800 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 800 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT150100DDIODE MOD GP 1000V 150A 3TOWER |
5,567 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1000 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT150140DDIODE MOD GP 1400V 150A 3TOWER |
8,780 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1400 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1400 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT150160DDIODE MOD GP 1600V 150A 3TOWER |
9,200 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1600 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1600 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
MBRT20035RDIODE MOD SCHOTT 35V 100A 3TOWER |
9,660 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 35 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT20040RDIODE MOD SCHOTT 40V 100A 3TOWER |
2,701 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 40 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|

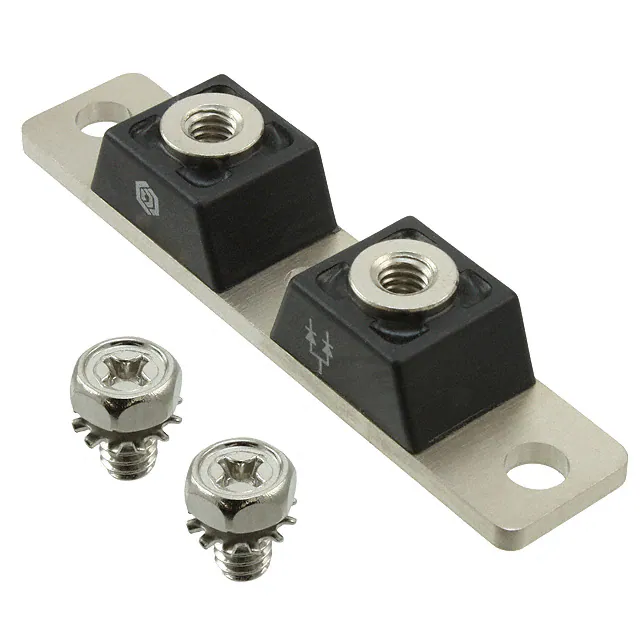

MBR40035CTRDIODE MOD SCHOTT 35V 200A 2TOWER |
6,525 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 35 V | 200A | 700 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 35 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBRT20035DIODE MOD SCHOTT 35V 100A 3TOWER |
6,521 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
