Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBRT400200DIODE MOD SCHOT 200V 200A 3TOWER |
8,201 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 200 V | 200A | 920 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT400200RDIODE MOD SCHOT 200V 200A 3TOWER |
3,474 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 200 V | 200A | 920 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|

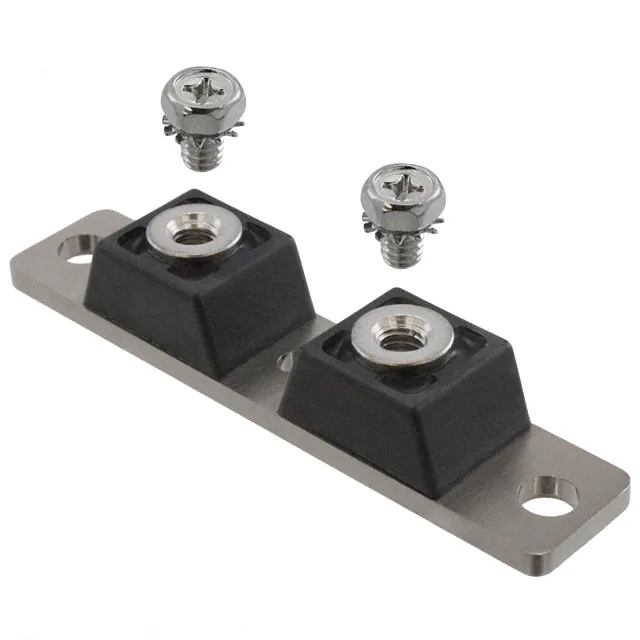

MBR60040CTDIODE MOD SCHOTT 40V 300A 2TOWER |
5,382 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 40 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR60040CTRDIODE MOD SCHOTT 40V 300A 2TOWER |
7,082 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 40 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR600100CTDIODE MOD SCHOT 100V 300A 2TOWER |
9,261 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 300A | 880 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR600100CTRDIODE MOD SCHOT 100V 300A 2TOWER |
7,061 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 100 V | 300A | 880 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR60020CTDIODE MOD SCHOTT 20V 300A 2TOWER |
5,525 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 20 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR60020CTRDIODE MOD SCHOTT 20V 300A 2TOWER |
4,439 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 20 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR60030CTDIODE MOD SCHOTT 30V 300A 2TOWER |
3,621 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 30 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR60030CTRDIODE MOD SCHOTT 30V 300A 2TOWER |
2,788 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 30 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
