Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MURBF3060CT-TPDIODE ARRAY GP 600V 15A TO-263AC |
3,000 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 600 V | 15A | 1.25 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 10 µA @ 600 V | -55°C ~ 175°C | - | - | Surface Mount | TO-263AC |
|
BAW56WT-TPDIODE ARRAY GP 75V 150MA SOT-323 |
1,170 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Active | 1 Pair Common Anode | Standard | 75 V | 150mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 2.5 µA @ 75 V | -55°C ~ 150°C | - | - | Surface Mount | SOT-323 |
|
|
MBR3U200-TPDIODE ARRAY SCHOT 200V 3A TO-277 |
3,690 | - |
|
Datasheet | - | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | - | Schottky | 200 V | 3A | 850 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 200 V | -55°C ~ 150°C | - | - | Surface Mount | TO-277 |
|
MBR40150CT-BPDIODE ARR SCHOT 150V 40A TO220AB |
5,904 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 150 V | 40A | 850 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -55°C ~ 175°C | - | - | Through Hole | TO-220AB |
|

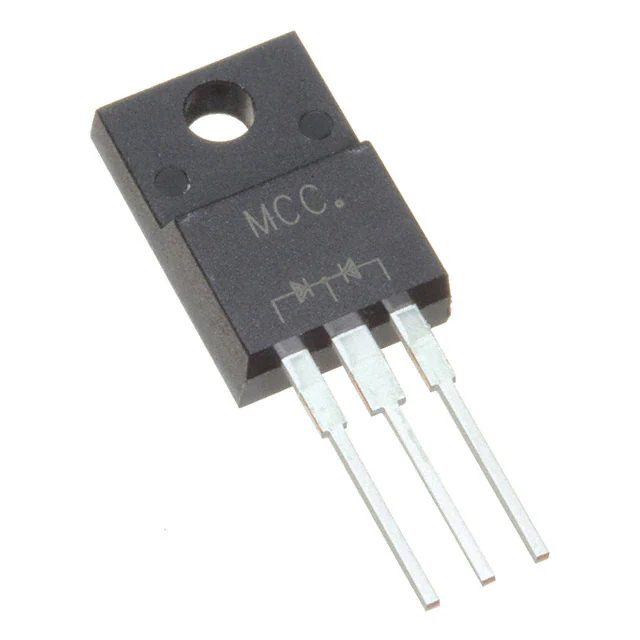

MBR30150FCT-BPDIODE ARR SCHOTTKY 150V ITO220AB |
4,990 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 1 Pair Common Cathode | Schottky | 150 V | 15A | 990 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 150 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
|
MBR30200PT-BPDIODE ARR SCHOTT 200V 30A TO2473 |
1,176 | - |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 200 V | 30A | 900 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
|
MUR6060PTH-BPDIODE ARRAY GP 600V 60A TO247-3 |
971 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | 60A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 112 ns | 5 µA @ 600 V | -55°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
MD165A16D2-BPDIODE MODULE GP 1600V 165A D2 |
80 | - |
|
Datasheet | - | D2 | Bulk | Active | 1 Pair Common Anode | Standard | 1600 V | 165A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | D2 |
|
MBRD5100C-TPDIODE ARRAY SCHOTT 100V 5A DPAK |
2,180 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | - | Schottky | 100 V | 5A | 760 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | -55°C ~ 150°C | - | - | Surface Mount | DPAK |
|
MD36K16D1-BPDIODE MODULE GP 1600V 36A D1 |
6 | - |
|
Datasheet | - | D1 | Bulk | Active | 1 Pair Common Cathode | Standard | 1600 V | 36A | 1.4 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | D1 |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
