Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

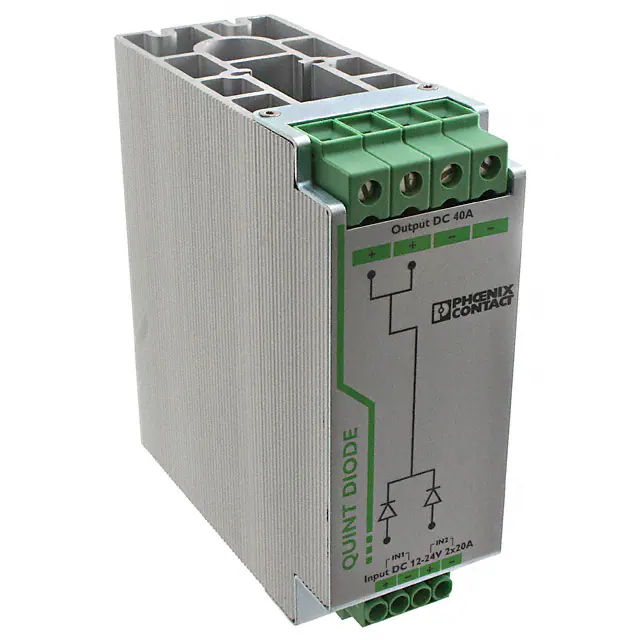

2320157GEN PURP 24V 20A MODULE |
124 | - |
|
Datasheet | - | Din Rail Module | Bulk | Active | 1 Pair Common Cathode | Standard | 24 V | 20A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 70°C | - | - | - | Module |
|

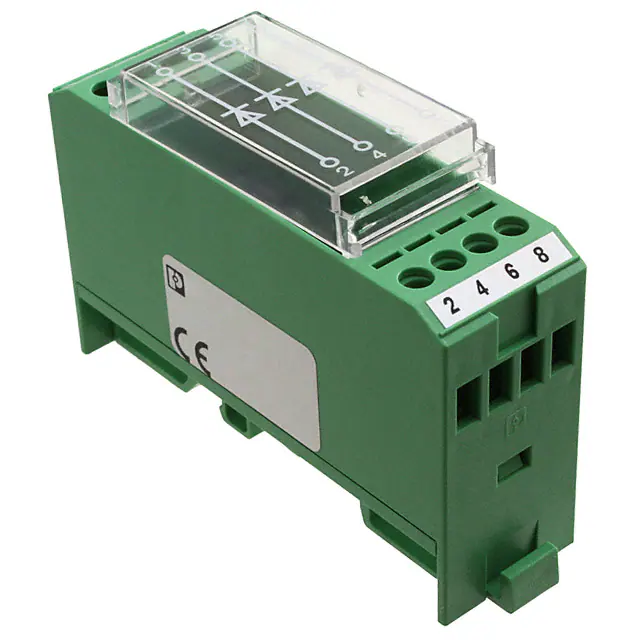

2952790DIODE MOD GP 1000V 1.5A MOD |
3 | - |
|
Datasheet | - | Module | Bulk | Active | 4 Independent | Standard | 1000 V | 1.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|
2320160GEN PURP 48V 20A MODULE |
18 | - |
|
Datasheet | - | Din Rail Module | Bulk | Active | 1 Pair Common Cathode | Standard | 48 V | 20A (DC) | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 70°C | - | - | - | Module |
|

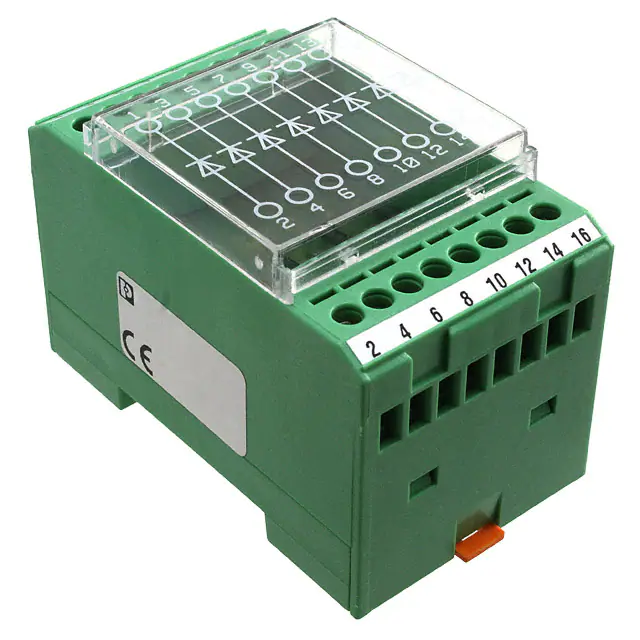

2950103DIODE MOD GP 1300V 700MA MOD |
2 | - |
|
Datasheet | - | Housed Axial | Bulk | Active | 8 Independent | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
|
2954798DIODE MOD GP 1300V 400MA MOD |
9 | - |
|
Datasheet | - | Module | Bulk | Active | 4 Pair Common Cathode | Standard | 1300 V | 400mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|
2954895DIODE MOD GP 1300V 500MA MOD |
6 | - |
|
Datasheet | - | Module | Bulk | Active | 17 Independent | Standard | 1300 V | 500mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|

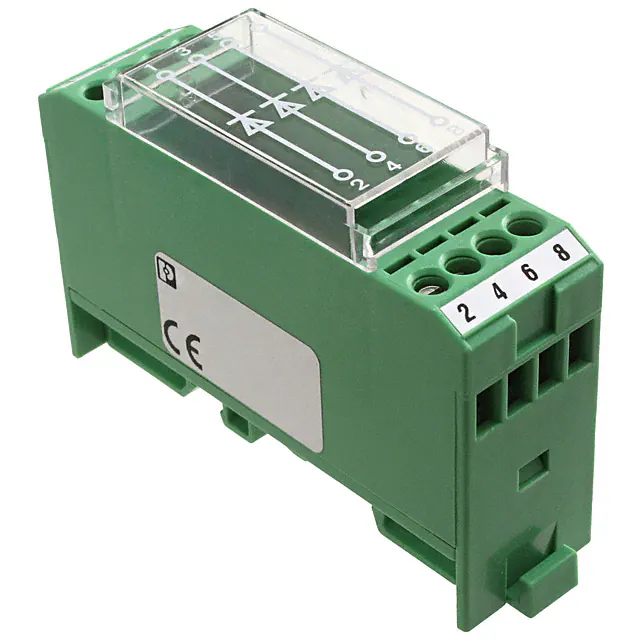

2950048GEN PURP 1300V 700MA MODULE |
3 | - |
|
Datasheet | - | Housed Axial | Bulk | Active | 4 Independent | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | - | Module |
|
2949389DIODE MOD GP 1000V 1.5A MOD |
4 | - |
|
Datasheet | - | Housed Axial | Bulk | Active | 8 Independent | Standard | 1000 V | 1.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
|

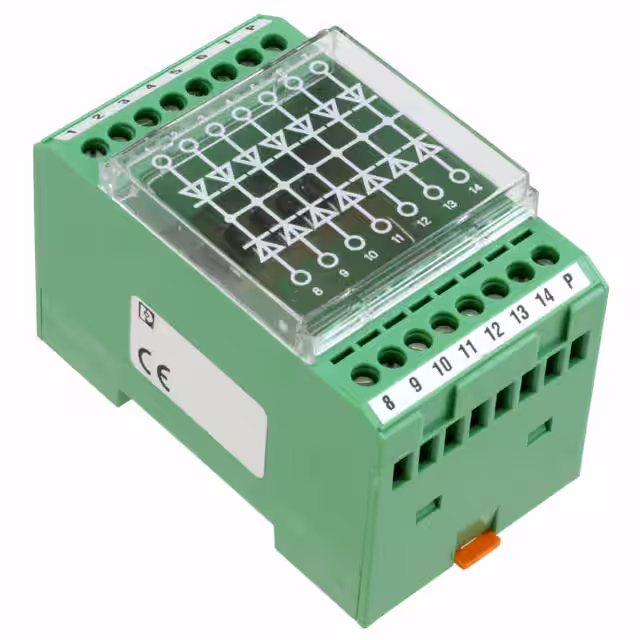

2950116DIODE MOD GP 1300V 700MA MOD |
2 | - |
|
Datasheet | - | Housed Axial | Bulk | Active | 14 Common Cathode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
|

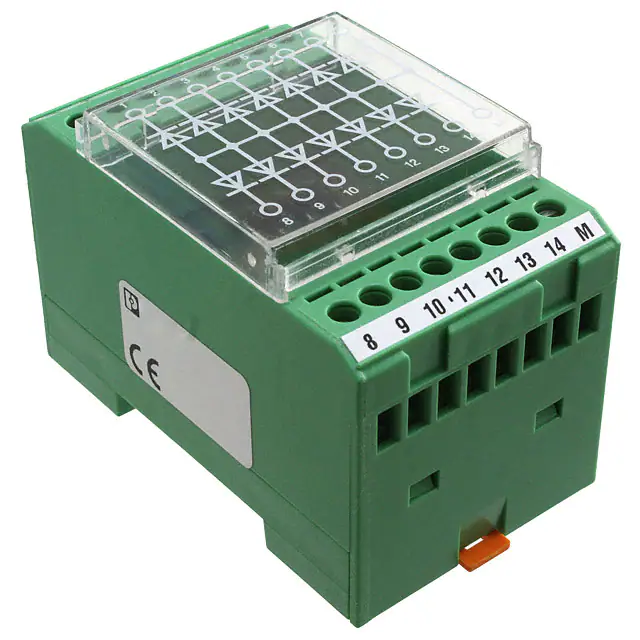

2950129DIODE MOD GP 1300V 700MA MOD |
2 | - |
|
Datasheet | - | Housed Axial | Bulk | Active | 14 Common Anode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
