Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2950064DIODE MOD GP 1300V 700MA MOD |
2 | - |
|
Datasheet | - | Module | Bulk | Active | 7 Common Cathode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -55°C ~ 150°C | - | - | DIN Rail/Channel | Module |
|
2954808DIODE MOD GP 1300V 400MA MOD |
3 | - |
|
Datasheet | - | Module | Bulk | Active | 8 Pair Common Cathode | Standard | 1300 V | 400mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|
2954785DIODE MOD GP 1300V 200MA MOD |
2,408 | - |
|
Datasheet | - | Module | Bulk | Active | 16 Pair Common Cathode | Standard | 1300 V | 200mA | - | Small Signal =< 200mA (Io), Any Speed | - | - | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|

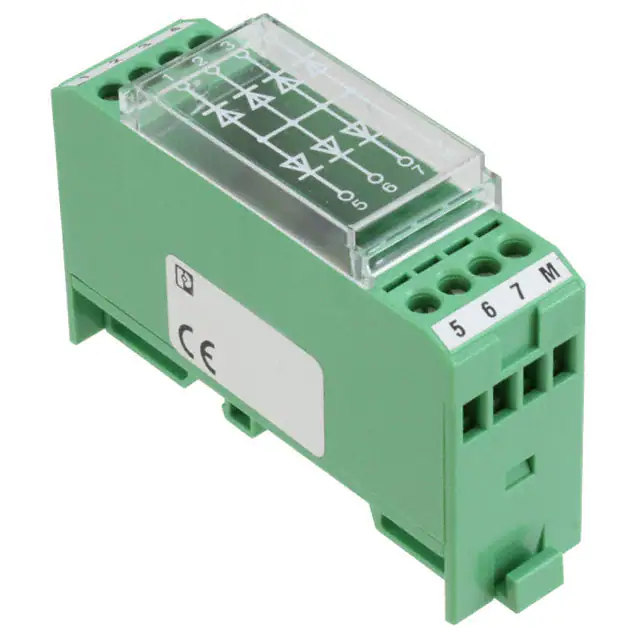

2950077GEN PURP 1300V 700MA MODULE |
1 | - |
|
Datasheet | - | Housed Axial | Bulk | Active | 7 Common Anode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | - | Module |
|
2950132DIODE MOD GP 1300V 700MA MOD |
2,630 | - |
|
Datasheet | - | Module | Bulk | Active | 7 Pair Common Cathode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|
2952198DIODE MODULE GP 1000V MODULE |
1 | - |
|
Datasheet | - | Module | Bulk | Active | 4 Common Cathode | Standard | 1000 V | - | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
|
|
2952211DIODE MODULE GP 1000V MODULE |
2,625 | - |
|
Datasheet | - | Module | Bulk | Active | 14 Common Anode | Standard | 1000 V | - | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
|
2954882DIODE MOD GP 1000V 300MA MOD |
3,537 | - |
|
Datasheet | - | Module | Bulk | Active | 8 Common Anode | Standard | 1000 V | 300mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|
|
2954879DIODE MOD GP 1000V 300MA MOD |
7,662 | - |
|
Datasheet | - | Module | Bulk | Active | 8 Common Cathode | Standard | 1000 V | 300mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|
2954934DIODE MODULE GP 1300V MODULE |
5,722 | - |
|
Datasheet | - | Module | Bulk | Active | 32 Common Anode | Standard | 1300 V | - | - | - | - | 5 µA @ 1300 V | -20°C ~ 150°C | - | - | DIN Rail | Module |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
