Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QRF1230R30DIODE MOD GP 1200V 210A MOD |
7,053 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Common Anode | Standard | 1200 V | 210A (DC) | 3.5 V @ 210 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | Module |
|
|
QRD0640R30DIODE MODULE GP 600V 280A MODULE |
2,923 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 600 V | 280A (DC) | 2.5 V @ 280 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 1 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | Module |
|
|
QRC0640R30DIODE MODULE GP 600V 280A MODULE |
6,191 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 280A (DC) | 2.5 V @ 280 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 1 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | Module |
|
|
QRF0640R30DIODE MODULE GP 600V 280A MODULE |
9,045 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Common Anode | Standard | 600 V | 280A (DC) | 2.5 V @ 280 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 1 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | Module |
|
|
ND410826DIODE MOD GP 800V 260A POWRBLOK |
8,457 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 800 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 800 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|

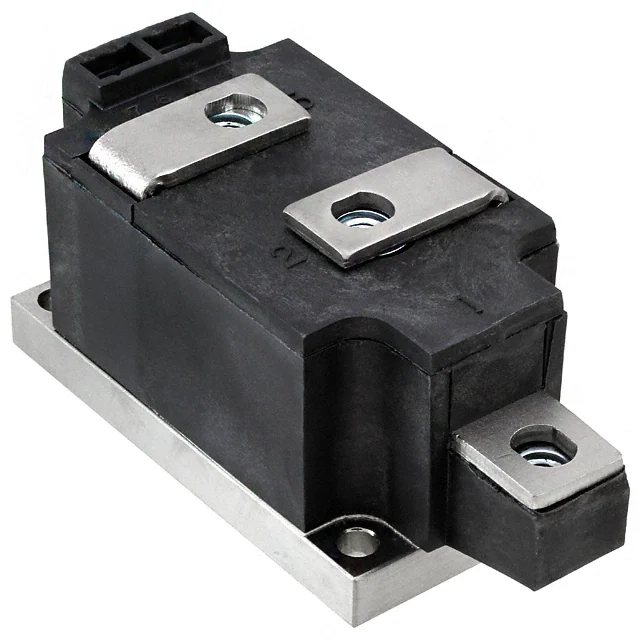

ND411226DIODE MOD GP 1200V 260A POWRBLOK |
6,286 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1200 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1200 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
ND411426DIODE MOD GP 1400V 260A POWRBLOK |
7,453 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1400 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1400 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
ND411235DIODE MOD GP 1200V 350A POWRBLOK |
8,655 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1200 V | 350A | 1.2 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 30 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
ND412026DIODE MOD GP 2000V 260A POWRBLOK |
9,489 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 2000 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 2000 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
ND411626DIODE MOD GP 1600V 260A POWRBLOK |
2,233 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1600 V | 260A | - | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 50 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
