Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PN410811DIODE MOD GP 800V 1200A POWRBLOK |
7,704 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 800 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 800 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN411011DIODE MODULE GP 1000V POWRBLOK |
7,792 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 1000 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1000 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN411211DIODE MODULE GP 1200V POWRBLOK |
5,847 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 1200 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PD410611DIODE MOD GP 600V 1100A POWRBLOK |
9,250 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 600 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 600 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|

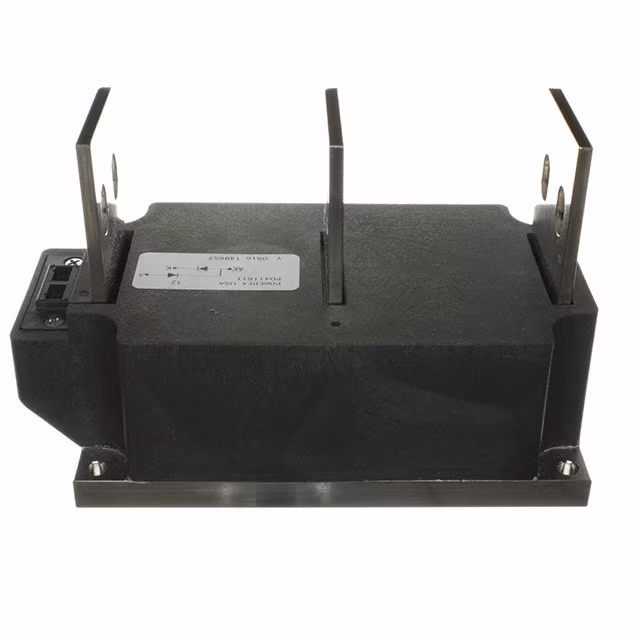

PD411611DIODE MODULE GP 1600V POWRBLOK |
3,002 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1600 V | 1100A | - | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PD411811DIODE MODULE GP 1800V POWRBLOK |
6,160 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1800 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1800 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN412411DIODE MODULE GP 2400V POWRBLOK |
6,493 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 2400 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2400 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN412611DIODE MODULE GP 2600V POWRBLOK |
3,080 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 2600 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PD412211DIODE MODULE GP 2200V POWRBLOK |
9,922 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 2200 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2200 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN413610DIODE MODULE GP 3600V POWRBLOK |
6,371 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 3600 V | 1100A | 1.35 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 25 µs | 200 mA @ 3600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
