Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V60D100C-M3/IDIODE ARRAY SCHOTT 100V 30A SMPD |
6,704 | - |
|
Datasheet | eSMP®, TMBS® | TO-263-3, D2PAK (2 Leads + Tab), Variant | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 100 V | 30A | 810 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 120 V | -40°C ~ 150°C | - | - | Surface Mount | SMPD |
|
VS-MBR6045WT-N3DIODE ARR SCHOTT 45V 30A TO247AC |
454 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 620 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | TO-247AC |
|
|
VS-72CPQ030-N3DIODE ARR SCHOTT 30V 35A TO247AC |
202 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 30 V | 35A | 510 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.9 mA @ 30 V | -55°C ~ 150°C | - | - | Through Hole | TO-247AC |
|
|
VS-63CPQ100-N3DIODE ARR SCHOT 100V 30A TO247AC |
362 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 100 V | 30A | 920 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 100 V | 175°C (Max) | - | - | Through Hole | TO-247AC |
|
|
VS-60CPQ150-N3DIODE ARR SCHOT 150V 30A TO247AC |
490 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 150 V | 30A | 830 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -55°C ~ 175°C | - | - | Through Hole | TO-247AC |
|
|
VS-HFA50PA60C-N3DIODE ARRAY GP 600V 25A TO-247AC |
511 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | 25A | 1.7 V @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | 23 ns | 20 µA @ 600 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-247AC |
|
VS-U5FH120FA120DIODE MODULE GP 1200V 60A SOT227 |
476 | - |
|
Datasheet | FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 1200 V | 60A (DC) | 2.5 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 71 ns | 80 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|

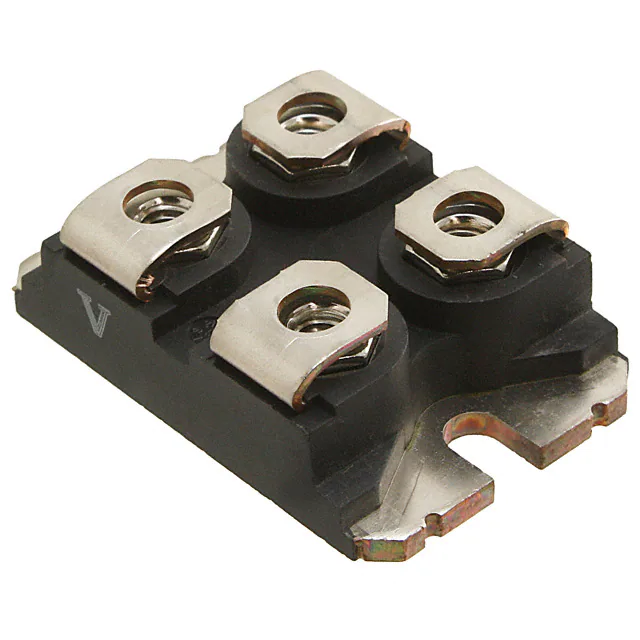

VS-UFB80FA20DIODE MODULE GP 200V 40A SOT-227 |
168 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 200 V | 40A (DC) | 1.08 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 34 ns | 50 µA @ 200 V | - | - | - | Chassis Mount | SOT-227 |
|
|
VS-UFH280FA30DIODE MODULE GP 300V 160A SOT227 |
126 | - |
|
Datasheet | FRED Pt® | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 300 V | 160A (DC) | 1.27 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 58 ns | 100 µA @ 300 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
VS-UFL80FA60DIODE MODULE GP 600V 65A SOT-227 |
136 | - |
|
Datasheet | FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 600 V | 65A (DC) | 1.49 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 115 ns | 50 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
